What Information Should Buyers Provide Before Requesting A Current Sensor Quote
What Information Should Buyers Provide Before Requesting A Current Sensor Quote
Requesting a current sensor quote is not only about asking for a price. To recommend the right model, suppliers need to understand the application, current type, current range, accuracy requirement, output signal, isolation voltage, installation structure, and operating environment. If the information is incomplete, the quotation may be inaccurate, the model may not fit the system, and sample testing may take longer.
This guide explains what buyers should prepare before requesting a current sensor quote for motor drives, EV chargers, solar inverters, battery energy storage systems, UPS systems, welding machines, railway power systems, industrial power supplies, and control cabinets.
Quick Answer
Before requesting a current sensor quote, buyers should provide the application, measured current type, rated current, peak current, current direction, accuracy target, response time, bandwidth, isolation voltage, output signal, supply voltage, aperture size, conductor size, mounting method, operating temperature, certification requirement, estimated quantity, and whether customization is needed. The more complete the information is, the faster the supplier can recommend a suitable model and provide an accurate quotation.
1. Provide The Application And Measurement Purpose First
The first information buyers should provide is the application. A current sensor used in an EV charger is different from one used in a motor drive, welding machine, battery energy storage system, or solar inverter. Each application has different current waveform, response speed, isolation, accuracy, and installation requirements.
Buyers should explain where the sensor will be installed and what the signal will be used for. For example, the sensor may be used for battery charge and discharge monitoring, motor phase current feedback, DC bus current monitoring, welding output current control, leakage current detection, inverter protection, or power monitoring. The measurement purpose directly affects the recommended sensor type.
If the signal is only used for general monitoring, a cost-effective open loop Hall effect current sensor may be enough. If the signal is used for fast control, torque feedback, PCS protection, or high-accuracy DC measurement, a closed loop current sensor or precision isolated current sensor may be more suitable. If the application is leakage current safety monitoring, a dedicated leakage current sensor should be selected instead of a general load current sensor.
Buyers should also confirm whether the measured current is AC, DC, pulse current, leakage current, or bidirectional current. This is very important because not all current sensors support every current type. Battery systems usually need bidirectional DC current measurement, motor drives may require fast AC phase current feedback, and welding machines may involve high pulse current.

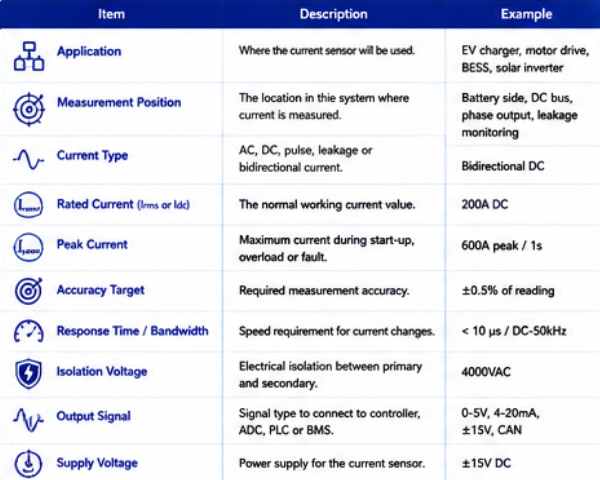

Basic Information Buyers Should Prepare
Application: EV charger, motor drive, BESS, solar inverter, UPS, welding machine, railway system, or industrial control cabinet.
Measurement position: battery side, DC bus, phase output, input side, welding output, leakage monitoring, or protection circuit.
Measurement purpose: monitoring, feedback control, protection, display, billing, energy management, or fault diagnosis.
Measured current type: AC, DC, pulse, leakage, or bidirectional current.
Required sensor type if known: open loop, closed loop, split core, leakage current sensor, or custom design.
2. Confirm The Electrical And Performance Requirements
Current range is one of the most important details in a quote request. Buyers should provide the normal working current, rated current, peak current, overload current, and short-time fault current if available. If only one current value is provided, the supplier may not know whether the sensor needs extra overload margin or higher measurement resolution.
Accuracy requirement should also be clear. Some applications only require approximate monitoring, while others require accurate current feedback for control and protection. For example, battery energy storage systems may need stable DC accuracy and low offset drift. Motor drives may need fast response and good linearity. EV chargers may require accurate current measurement and safe isolation.
Response time and bandwidth should be provided when the current changes quickly. Welding machines, inverters, servo drives, protection circuits, and pulse current applications usually need faster response. If the supplier does not know the response requirement, the selected model may be too slow for dynamic control.
Isolation voltage is critical in high-voltage systems. Buyers should provide the system voltage, working voltage, required isolation voltage, and safety standard if available. For EV charging, solar inverter, energy storage, UPS, railway, and industrial power conversion systems, the current sensor must safely separate the primary current path from the low-voltage control circuit.
Output signal and power supply should be confirmed before quotation. Common output signals include voltage output, current output, digital output, and customized output. Common supply voltages may include ±12V, ±15V, +5V, +12V, +15V, or +24V depending on the sensor type and controller design. If these details are missing, the quoted sensor may not match the customer's controller, ADC, PLC, or BMS.
| Information To Provide | Why It Matters | Example |
|---|---|---|
| Rated Current | Determines the basic sensor range | 100A, 300A, 500A, 1000A |
| Peak Current | Prevents saturation during startup, overload, or pulse conditions | 500A peak for 1 second |
| Current Type | Determines sensor technology and output design | DC, AC, pulse, leakage, bidirectional |
| Accuracy Target | Affects model grade and price | 1%, 0.5%, 0.2%, custom requirement |
| Response Time / Bandwidth | Important for fast feedback and protection | Fast response for inverter or welding control |
| Isolation Voltage | Ensures electrical safety and controller protection | 2.5kV, 4kV, 6kV, 10kV or project-specific requirement |
| Output Signal | Must match controller, ADC, PLC, BMS, or PCS input | 0-5V, 0-10V, 4-20mA, ±4V, digital, custom |
| Supply Voltage | Determines whether the sensor can work with the system power rail | +5V, +12V, +15V, +24V, ±15V |

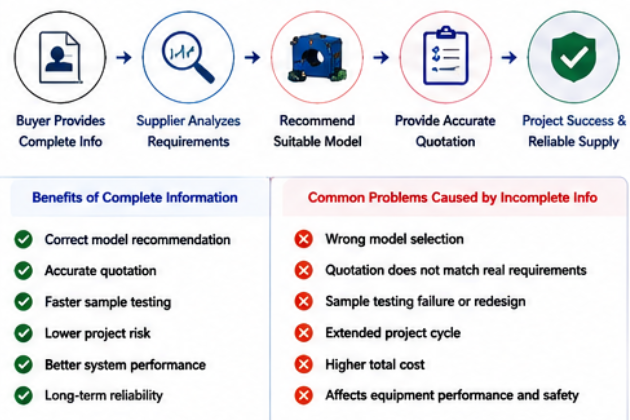

Why Complete Parameters Reduce Quotation Errors
A complete parameter list helps the supplier recommend the correct sensor range, structure, output, and accuracy level. It also helps avoid over-specification and under-specification. If the application only needs basic monitoring, the supplier may recommend a cost-effective model. If the application needs high-precision feedback or high isolation, the supplier can recommend a higher-performance model from the beginning.
3. Provide Mechanical, Environmental, Certification, And Order Details
Mechanical information is often overlooked, but it can determine whether the sensor can be installed. Buyers should provide the conductor type, cable diameter, busbar size, aperture requirement, mounting hole position, terminal type, and available installation space. For retrofit projects, split core structure may be required because existing cables cannot be disconnected.

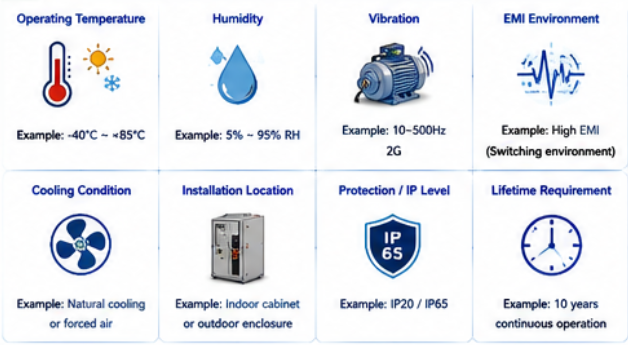

Operating environment also affects sensor selection. Current sensors used in EV chargers, welding machines, motor drives, and industrial cabinets may face high temperature, humidity, dust, vibration, switching noise, and nearby magnetic fields. Buyers should provide operating temperature range, installation location, cooling condition, and whether the environment is high-EMI or high-vibration.
Certification and compliance requirements should be mentioned early. Some projects may need CE, RoHS, REACH, UL/cUL, EMC reports, ISO 9001 supplier documentation, insulation test reports, or customer-specific approval documents. If the buyer waits until after sample testing to mention certification needs, the project may need model replacement or additional testing.
Order quantity and project stage should also be provided. A supplier may recommend different solutions for prototype testing, small-batch production, OEM mass production, or replacement projects. Estimated annual quantity, sample quantity, target price range, delivery time, and customization needs help suppliers provide a more practical quotation.
If the buyer already has an existing model, datasheet, drawing, or competitor part number, it should be shared with the supplier. This can speed up model matching and replacement evaluation. However, buyers should also provide the real application conditions because direct replacement is not always safe without checking current range, output, installation size, and isolation requirements.
Mechanical And Project Information Checklist
| Category | Information To Provide | Why It Helps |
|---|---|---|
| Conductor Size | Cable diameter, busbar width, busbar thickness | Ensures aperture size and installation fit |
| Mounting Method | PCB mount, panel mount, DIN rail, busbar mount, split core | Helps select the correct mechanical structure |
| Installation Space | Available height, width, depth, wiring direction | Avoids model mismatch during installation |
| Environment | Temperature, humidity, vibration, dust, EMI, cooling condition | Improves long-term reliability and signal stability |
| Certifications | CE, RoHS, REACH, UL/cUL, EMC, ISO, test reports | Supports export, customer approval, and final equipment compliance |
| Project Stage | Prototype, sample test, replacement, mass production, OEM project | Helps supplier recommend practical delivery and pricing options |
| Quantity | Sample quantity, trial order, annual demand, forecast | Improves quotation accuracy and production planning |
| Existing Model | Current model number, datasheet, drawing, competitor part number | Speeds up replacement and cross-reference selection |
Common Quote Request Mistakes To Avoid
Only asking for price without providing current range or application.
Providing rated current but not peak current or overload condition.
Not confirming whether the current is AC, DC, pulse, leakage, or bidirectional.
Forgetting to provide output signal and supply voltage requirements.
Ignoring aperture size, cable diameter, busbar size, and installation space.
Not mentioning certification or test report requirements before quotation.
Requesting a direct replacement without providing the original datasheet or real working conditions.
Conclusion
A complete current sensor quote request should include application, measurement position, current type, rated current, peak current, accuracy target, response time, isolation voltage, output signal, supply voltage, aperture size, conductor size, mounting method, operating environment, certification requirement, quantity, and project stage.
The more complete the information is, the faster the supplier can recommend a suitable model, provide an accurate quotation, and reduce sample testing risk. For motor drives, EV chargers, solar inverters, battery energy storage systems, UPS systems, welding machines, railway systems, and industrial power electronics, a clear quote request helps both buyers and suppliers avoid wrong model selection and unnecessary project delays.
FAQ
1. What is the most important information for a current sensor quote?
The most important information includes application, current type, rated current, peak current, accuracy requirement, output signal, isolation voltage, and installation structure.
2. Why does the supplier need peak current?
Peak current helps prevent sensor saturation during startup, overload, pulse operation, welding cycles, or fault conditions. Rated current alone is not enough for accurate model selection.
3. Should buyers provide conductor size?
Yes. Cable diameter, busbar size, and installation space help confirm the sensor aperture size and mounting structure. This avoids installation problems after the sample arrives.
4. Why is output signal important?
The output signal must match the controller, PLC, ADC, BMS, PCS, or monitoring system. A wrong output type can cause signal mismatch, incorrect readings, or extra conversion cost.
5. Can a supplier quote without full technical information?
A supplier may provide a rough price, but accurate model selection and reliable quotation require complete technical details. Incomplete information increases the risk of wrong model selection.
