How To Select A High Voltage Sensor For Power Conversion Equipment
How To Select A High Voltage Sensor For Power Conversion Equipment
High voltage sensors are critical components in power conversion equipment. They help monitor DC bus voltage, AC output voltage, battery voltage, inverter voltage, converter voltage, and protection signals in systems such as solar inverters, EV chargers, battery energy storage systems, UPS systems, motor drives, railway power systems, and industrial power supplies.
Selecting the wrong high voltage sensor can lead to inaccurate voltage feedback, poor control stability, insufficient isolation, overvoltage protection failure, system shutdown, or safety risk. This guide explains how to select a high voltage sensor for power conversion equipment and what buyers should check before requesting a quote.
Quick Answer
To select a high voltage sensor for power conversion equipment, engineers should confirm the measured voltage type, voltage range, maximum voltage, transient overvoltage, isolation voltage, accuracy, linearity, response time, output signal, power supply, operating temperature, EMC environment, installation method, and certification requirements. For high-voltage inverters, EV chargers, BESS, UPS systems, and railway power systems, the sensor should provide reliable galvanic isolation, stable measurement, low drift, strong anti-interference performance, and safe integration with the controller, PLC, ADC, BMS, or PCS.

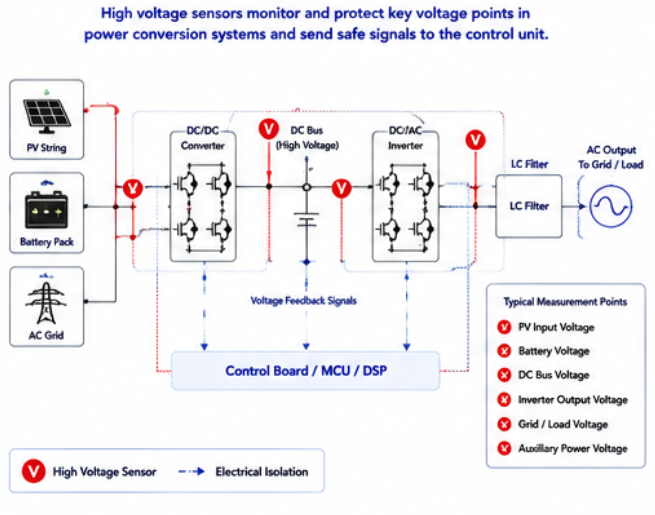

1. Define The Voltage Measurement Position First
Before selecting a high voltage sensor, engineers should first define where the voltage is measured. In power conversion equipment, voltage sensors may be installed on the DC bus, battery side, PV input side, inverter output side, grid connection side, auxiliary power circuit, or protection circuit. Different positions have different voltage waveforms, safety requirements, response speed, and insulation requirements.
For DC bus monitoring, the sensor usually measures high-voltage DC and provides a safe feedback signal to the control board. This signal may be used for overvoltage protection, undervoltage protection, DC-link capacitor monitoring, converter control, and fault diagnosis. In this case, input voltage range, isolation voltage, transient voltage margin, and response time are very important.
For battery energy storage systems and EV charging equipment, high voltage sensors may monitor battery pack voltage, DC charging voltage, DC bus voltage, or converter voltage. These systems often require strong isolation, stable DC measurement, low drift, and reliable output under high-voltage operating conditions.
For solar inverters, UPS systems, motor drives, and railway power systems, the sensor may need to work near IGBT modules, SiC MOSFETs, transformers, inductors, contactors, and DC-link capacitors. These environments often contain switching noise and high electromagnetic interference, so sensor anti-interference performance and installation layout should be reviewed carefully.
Key Questions Before Selection
Is the sensor measuring DC voltage, AC voltage, pulse voltage, or bidirectional power conversion voltage?
Where will the sensor be installed: DC bus, battery side, PV input, inverter output, or grid side?
What is the rated voltage and maximum operating voltage?
Will the system experience transient overvoltage, regeneration voltage, or switching spikes?
What isolation voltage and working voltage are required?
Is the signal used for monitoring, feedback control, protection, or fault diagnosis?
What output signal does the controller, PLC, ADC, BMS, or PCS require?

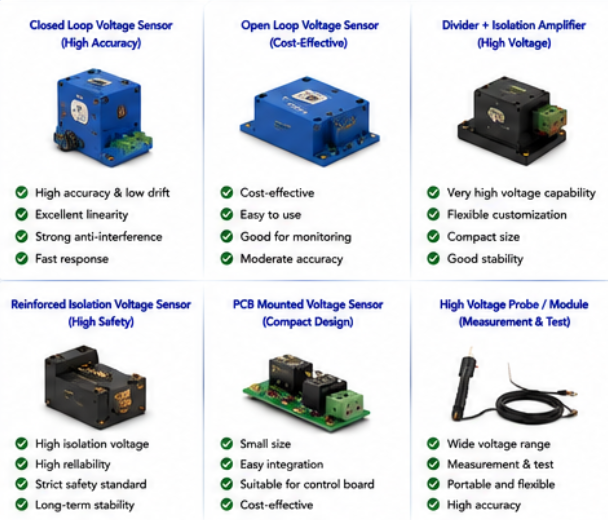

2. Check The Core Parameters Of High Voltage Sensors
Input voltage range is the first parameter to confirm. The selected sensor should cover the normal working voltage and also provide enough margin for maximum voltage and transient overvoltage. If the voltage range is too low, the sensor may saturate, output inaccurate signals, or become damaged. If the range is too high, normal voltage measurement resolution may become poor.
Isolation voltage is one of the most important safety parameters. A high voltage sensor must safely separate the primary high-voltage circuit from the low-voltage signal circuit. Buyers should check isolation voltage, working voltage, dielectric strength, creepage distance, clearance distance, insulation structure, and safety standard requirements. In high-voltage equipment, weak isolation can create serious safety risk.
Accuracy and linearity determine whether the voltage feedback is reliable across the full measurement range. For basic monitoring, standard accuracy may be enough. For converter control, EV charging modules, energy storage PCS, high-performance UPS systems, and railway power equipment, better accuracy and lower temperature drift may be needed.
Response time should match the system function. If the voltage signal is used for slow monitoring, a moderate response speed may be acceptable. If the signal is used for overvoltage protection, converter control, fault shutdown, or fast power regulation, a faster response high voltage sensor is required.
Output signal compatibility should be confirmed before ordering. Common outputs may include 0-5V, 0-10V, 4-20mA, ±5V, ±10V, or customized analog output. The output signal must match the controller, ADC, PLC, BMS, PCS, or monitoring system. Wrong output selection may cause signal mismatch and extra redesign work.
| Selection Parameter | Why It Matters | Recommended Checkpoint |
|---|---|---|
| Voltage Type | Different systems measure DC, AC, pulse, or transient voltage | Confirm whether the sensor is for DC bus, AC output, battery, or PV voltage |
| Input Voltage Range | Determines whether the sensor can measure normal and maximum voltage | Check rated voltage, maximum voltage, and transient voltage margin |
| Isolation Voltage | Protects low-voltage control circuits and operators | Confirm isolation voltage, working voltage, creepage, and clearance |
| Accuracy | Affects feedback control, monitoring, and protection decisions | Match accuracy level with application requirement |
| Linearity | Ensures stable output across the measurement range | Review linearity data across low, normal, and high voltage points |
| Response Time | Important for overvoltage protection and dynamic control | Use faster response for protection and power conversion control |
| Temperature Drift | High temperature affects long-term measurement stability | Choose low-drift sensors for hot cabinets or outdoor equipment |
| Output Signal | Must match the controller, ADC, PLC, BMS, or PCS | Confirm analog voltage, analog current, or customized output |
| EMC Performance | Power conversion equipment contains strong switching noise | Review shielding, grounding, filtering, and anti-interference performance |

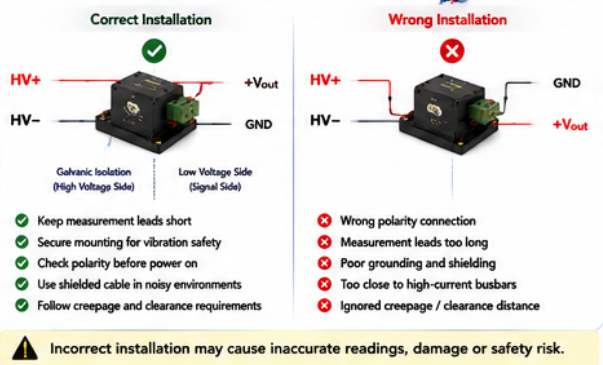

Why Isolation Is The First Safety Check
In power conversion equipment, high voltage sensors often measure dangerous DC bus or AC output voltage while sending a low-level signal to a controller. Galvanic isolation helps protect the controller, communication module, PLC, BMS, PCS, and operator interface from high-voltage hazards. It also helps reduce ground loop problems and improves signal reliability in complex power systems.
3. Match High Voltage Sensors With Different Power Conversion Applications
Different power conversion equipment requires different voltage sensing priorities. In solar inverters, high voltage sensors are commonly used for PV input voltage, DC-link voltage, and inverter output monitoring. These systems often require stable long-term measurement, good insulation, low drift, and strong performance under outdoor or high-temperature conditions.
In EV charging modules, voltage sensors help monitor the high-voltage DC bus, charging output, and converter feedback. Fast response, safe isolation, compact installation, and anti-interference performance are important because charging modules may operate at high power density and high switching frequency.
In battery energy storage systems and PCS converters, high voltage sensors may monitor battery pack voltage, DC bus voltage, and bidirectional converter voltage. The sensor should match the system voltage, isolation requirement, output interface, and operating environment. Long-term stability is important because energy storage systems may operate continuously for years.
In motor drives and UPS systems, voltage sensors help monitor rectifier output, DC-link capacitor voltage, inverter voltage, and fault conditions. During braking, regeneration, load changes, or grid fluctuation, the DC bus voltage may change quickly. The voltage sensor should have enough range and response speed to support protection and control.
For railway power systems and industrial power supplies, high voltage sensors may face vibration, heat, high EMI, large current conductors, and strict reliability requirements. Buyers should review insulation design, EMC performance, mechanical structure, reliability data, and certification documents before final selection.
Application Matching Reference
| Application | Voltage Measurement Purpose | Sensor Selection Direction |
|---|---|---|
| Solar Inverter | PV input voltage, DC-link voltage, inverter output monitoring | Low-drift isolated voltage sensor with long-term stability |
| EV Charging Module | High voltage DC bus feedback and charging output monitoring | Fast-response high voltage sensor with strong isolation and EMC performance |
| Battery Energy Storage System | Battery pack voltage, DC bus voltage, PCS converter monitoring | High-isolation DC voltage sensor with stable output and low drift |
| UPS System | DC bus monitoring, inverter protection, backup power control | Reliable isolated voltage sensor with good thermal performance |
| Motor Drive / VFD | Rectifier output, DC-link voltage, regeneration voltage monitoring | Sensor range should cover braking and transient voltage conditions |
| Railway Power System | Traction voltage monitoring, converter protection, safety diagnostics | High-reliability voltage sensor with strong insulation and anti-interference design |
Common Selection Mistakes To Avoid
Choosing only by rated voltage and ignoring maximum voltage or transient voltage.
Using insufficient isolation in high-voltage power conversion systems.
Confusing isolation test voltage with continuous working voltage.
Selecting an output signal that does not match the controller, ADC, PLC, BMS, or PCS.
Ignoring temperature drift in outdoor inverters or high-power cabinets.
Using a slow sensor for fast overvoltage protection or converter control.
Not checking EMC performance near IGBT modules, SiC MOSFETs, transformers, and switching circuits.
Conclusion
Selecting a high voltage sensor for power conversion equipment requires a full review of measured voltage type, input voltage range, maximum voltage, transient margin, isolation voltage, working voltage, accuracy, linearity, response time, output signal, temperature drift, EMC performance, installation method, and certification needs.
For solar inverters, EV chargers, battery energy storage systems, UPS systems, motor drives, railway power systems, and industrial power supplies, the best high voltage sensor is the one that matches the real electrical stress, safety requirement, controller interface, and operating environment. A proper sensor selection helps improve voltage feedback quality, system protection, and long-term equipment reliability.
FAQ
1. What does a high voltage sensor do in power conversion equipment?
A high voltage sensor measures high-voltage DC or AC signals and converts them into a safe low-level signal for the controller, PLC, ADC, BMS, PCS, or monitoring system.
2. Why is isolation important for high voltage sensors?
Isolation separates the high-voltage measurement side from the low-voltage control side. It protects electronics, communication circuits, operators, and final equipment from high-voltage safety risks.
3. How should I choose the input voltage range?
The input voltage range should cover the rated voltage, maximum operating voltage, transient overvoltage, regeneration voltage, and fault conditions with enough safety margin.
4. Is response time important for voltage sensors?
Yes. If the voltage signal is used for fast protection, converter control, or fault shutdown, response time is important. For simple monitoring, moderate response speed may be acceptable.
5. What information should I provide before requesting a quote?
You should provide the application, measured voltage type, rated voltage, maximum voltage, transient voltage, isolation requirement, accuracy target, response requirement, output signal, power supply, installation method, operating temperature, and certification requirement.
