Voltage sensors are important components in power conversion equipment. They are used for DC bus voltage monitoring, battery voltage measurement, inverter feedback, EV charger output voltage detection, PCS protection, UPS voltage monitoring, railway power systems, motor drives, and industrial DC power supplies.
For buyers and engineers, choosing a voltage sensor supplier is not only about price. The supplier should understand voltage range, isolation requirement, output signal, accuracy, response time, temperature drift, EMC environment, installation method, and long-term supply needs. This guide explains what buyers should confirm before ordering voltage sensors for power conversion equipment.
Quick Answer
Before ordering from a voltage sensor supplier, buyers should confirm the measured voltage type, nominal voltage, maximum voltage, transient overvoltage, isolation voltage, working voltage, output signal, supply voltage, accuracy, response time, temperature drift, installation method, wiring distance, operating environment, certification needs, sample quantity, and annual demand. For power conversion equipment, the right supplier should help match the sensor with the controller, ADC, PLC, BMS, PCS, inverter control board, or EV charger control system.
1. Confirm The Application Before Comparing Voltage Sensor Suppliers
Different power conversion equipment needs different voltage sensing performance. A voltage sensor used in a solar inverter may focus on DC-link voltage monitoring and inverter protection. A voltage sensor used in an EV charger may need fast response, high isolation, and stable output for charging voltage control. A voltage sensor used in a BESS or PCS system may require long-term stability and safe high-voltage measurement.
A reliable voltage sensor supplier should first ask about the application instead of only quoting by voltage range. Buyers should describe whether the sensor is used for DC bus monitoring, battery voltage measurement, charging output voltage, converter feedback, overvoltage protection, undervoltage protection, or system diagnostics.

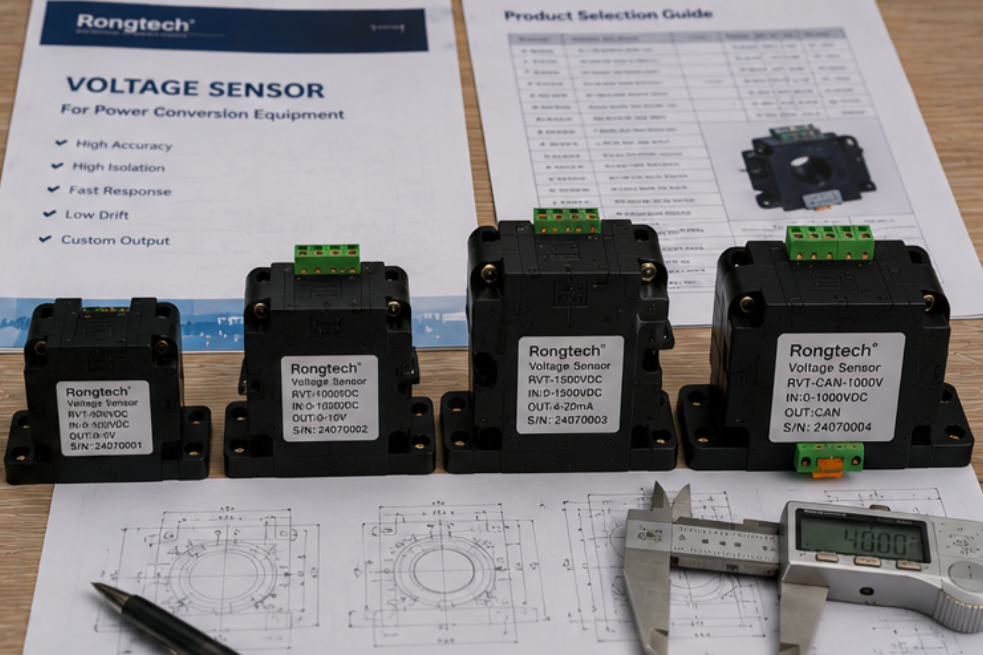

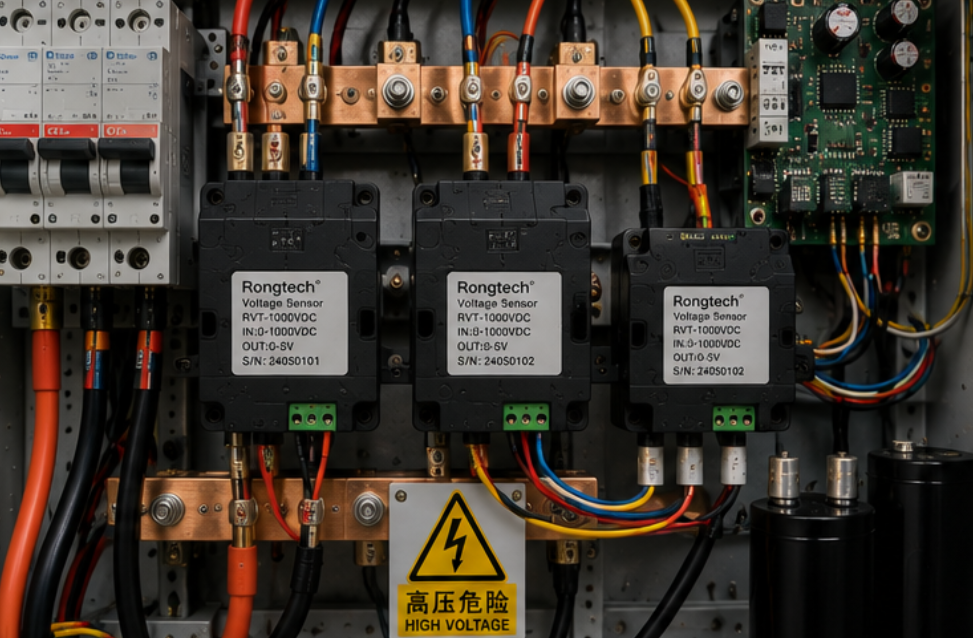

Power conversion systems often contain IGBT modules, SiC MOSFETs, DC-link capacitors, contactors, relays, transformers, inductors, copper busbars, and high-voltage cables. These components may create switching noise, transient voltage, heat, and insulation stress. The voltage sensor should be selected according to real system conditions, not only the nominal voltage.
Typical Applications For Voltage Sensors
DC bus voltage monitoring in inverters and converters.
EV charger output voltage detection and protection.
BESS battery voltage and PCS DC bus monitoring.
UPS DC-link and backup power voltage monitoring.
Motor drive DC bus voltage feedback and fault detection.
Railway power system voltage monitoring.
Industrial DC power supply output voltage measurement.
2. Confirm Voltage Range, Transient Voltage And Isolation Requirement
Voltage range is the first parameter to confirm. Buyers should provide nominal voltage, maximum operating voltage, transient overvoltage, and whether the measurement is AC, DC, pulsed DC, or high-voltage DC bus voltage. A system with 750VDC nominal voltage may experience higher transient voltage during switching, regeneration, load change, or fault conditions.
If the selected voltage sensor range is too low, the sensor may saturate, output wrong data, or become damaged. If the voltage range is too high, measurement resolution may decrease. The correct range should cover normal voltage and transient voltage while maintaining useful accuracy for the controller.
Isolation is critical in power conversion equipment. The voltage sensor must safely separate the high-voltage measurement side from the low-voltage control side. Buyers should check isolation voltage, working voltage, dielectric strength, creepage distance, clearance distance, and insulation design. In EV chargers, BESS, inverters, UPS, and railway systems, isolation should not be reduced only to lower cost.
| Parameter | Why It Matters | What Buyers Should Provide |
|---|---|---|
| Nominal Voltage | Defines normal measurement range | 400VDC, 750VDC, 1000VDC, 1500VDC, or project-specific value |
| Maximum Voltage | Prevents saturation or sensor damage | Maximum continuous operating voltage |
| Transient Overvoltage | Important during switching, braking, regeneration, or fault events | Transient voltage value and duration if available |
| Isolation Voltage | Protects low-voltage control circuits | 2.5kV, 4kV, 6kV, 10kV, or project-specific requirement |
| Working Voltage | Determines long-term insulation requirement | Continuous system voltage and safety standard requirement |
| Creepage And Clearance | Important for high-voltage insulation safety | Voltage level, pollution degree, altitude, and cabinet layout |
3. Match Output Signal With Controller, PLC, BMS Or PCS
Output signal matching is one of the most important checks before ordering a voltage sensor. Common output signals include 0-5V, 0-10V, ±5V, ±10V, 4-20mA, CAN, RS485, or customized output. If the sensor output does not match the controller input, the equipment may need extra conversion circuits or software changes.
For inverter control boards and EV charger modules, 0-5V or customized voltage output may be common. For PLC and industrial monitoring systems, 0-10V or 4-20mA output may be preferred. For smart energy systems, CAN or RS485 may be considered when digital communication is required.
Buyers should provide the controller input type, expected output scaling, wiring distance, signal ground requirement, and whether the signal is used for monitoring, feedback control, protection, or data logging. This helps the voltage sensor supplier recommend a suitable signal interface.
| Output Type | Typical Use | Buyer Should Confirm |
|---|---|---|
| 0-5V | ADC, MCU, inverter control board, EV charger controller | Input range, scaling, signal ground, and output limit |
| 0-10V | PLC and industrial analog input | PLC input compatibility and maximum input voltage |
| 4-20mA | Long-distance industrial signal transmission | Loop power, load resistance, scaling, and wiring method |
| CAN / RS485 | Digital monitoring and energy management systems | Protocol, address, baud rate, and data format |
| Custom Output | OEM projects or replacement sensors | Required output range, scaling, connector, and wiring definition |
4. Review Accuracy, Response Time, Drift And EMC Performance
Accuracy requirements depend on how the voltage signal is used. If the voltage sensor is used only for display, standard accuracy may be enough. If it is used for converter feedback, charging voltage regulation, battery energy management, overvoltage protection, or fault shutdown, better accuracy and stable long-term output may be required.
Response time is important when the voltage signal is used for protection or fast control. In power conversion systems, voltage can change quickly during switching, load changes, braking, regeneration, or fault conditions. A slow sensor may delay protection or feedback response.
Temperature drift and EMC performance should also be checked. Power conversion cabinets may contain high switching noise, heat, vibration, and dense wiring. A qualified voltage sensor supplier should help buyers evaluate signal stability under real cabinet conditions.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Accuracy | Affects voltage calculation, control, and protection threshold | ±1%, ±0.5%, ±0.2%, or project-specific requirement |
| Response Time | Important for overvoltage protection and fast control | Monitoring, feedback, protection, or shutdown requirement |
| Temperature Drift | Affects long-term stability in hot cabinets | Operating temperature and drift tolerance |
| EMC Resistance | Power conversion equipment creates switching noise | Switching environment, wiring layout, shielding, and grounding |
| Batch Consistency | Important for OEM production | Sample test data, batch inspection, and annual demand |
5. What Buyers Should Send Before Requesting A Quote
A voltage sensor quotation should be based on real system parameters. Buyers should provide the application, measured voltage type, nominal voltage, maximum voltage, transient voltage, output signal, supply voltage, isolation requirement, accuracy target, response time, installation method, operating temperature, sample quantity, annual demand, and customization needs.
If the project is a replacement request, buyers should provide the original voltage sensor model number, datasheet, wiring definition, photos, output scaling, and installation dimensions. If the project is a new OEM design, buyers should provide controller input requirements, cabinet drawings, voltage measurement point, and production forecast.
Example Quote Request:
Application: EV charger DC bus voltage monitoring
Measured voltage: High voltage DC bus
Nominal voltage: 750VDC
Maximum voltage: 1000VDC
Output signal: 0-5V
Controller input: ADC input 0-5V
Isolation requirement: 4kV or higher
Function: DC bus feedback and overvoltage protection
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Supplier Confirmation Checklist
Confirm application and measurement position.
Confirm AC voltage, DC voltage, DC bus voltage, or pulsed voltage.
Provide nominal voltage, maximum voltage, and transient overvoltage.
Confirm output signal and controller input type.
Confirm supply voltage and wiring definition.
Check isolation voltage, working voltage, creepage, and clearance.
Confirm accuracy, response time, temperature drift, and EMC requirement.
Confirm installation method, wiring distance, and operating temperature.
Ask whether the supplier can provide datasheet, wiring diagram, drawing, and test report.
Provide sample quantity, annual demand, customization needs, and delivery schedule.
Conclusion
Choosing a voltage sensor supplier for power conversion equipment requires more than comparing voltage range and price. Buyers should confirm application, voltage type, nominal voltage, maximum voltage, transient voltage, isolation requirement, output signal, controller input, accuracy, response time, drift, EMC environment, installation method, and long-term supply capability.
For EV chargers, BESS, inverters, UPS systems, motor drives, railway power systems, and industrial power supplies, the right supplier can help reduce selection risk, improve sample testing efficiency, and support stable OEM production. A complete parameter list helps suppliers recommend the correct voltage sensor model faster and provide a more accurate quotation.
FAQ
1. What should I check before ordering a voltage sensor?
You should check voltage range, maximum voltage, transient voltage, isolation voltage, output signal, supply voltage, accuracy, response time, installation method, controller input, and operating environment.
2. Why is isolation important for voltage sensors?
Isolation protects the low-voltage control side from the high-voltage measurement side. It is essential for EV chargers, BESS, inverters, UPS systems, and other high-voltage power conversion equipment.
3. What output signal should a voltage sensor provide?
The output signal should match the controller, ADC, PLC, BMS, PCS, or monitoring system. Common outputs include 0-5V, 0-10V, ± output, 4-20mA, CAN, RS485, or customized output.
4. Can a voltage sensor be customized?
Yes. Voltage sensors can often be customized for voltage range, output signal, supply voltage, connector, wiring definition, installation method, label, and replacement requirements.
5. What information should I provide before requesting a quote?
Provide application, measured voltage type, nominal voltage, maximum voltage, transient voltage, output signal, supply voltage, isolation requirement, accuracy target, response time, sample quantity, and annual demand.
