Open Loop Current Sensor vs Closed Loop Current Sensor For EV Charger Applications
Open Loop Current Sensor vs Closed Loop Current Sensor For EV Charger Applications
EV charger systems require reliable current measurement for charging current control, DC output monitoring, overcurrent protection, fault diagnosis, and power module safety. When selecting a current sensor for EV charger applications, buyers often compare open loop current sensors and closed loop current sensors. Both can be used in EV charging equipment, but they are suitable for different accuracy, response, cost, and control requirements.
This guide explains the key differences between open loop and closed loop current sensors for EV chargers, how to choose the right type, and what parameters buyers should provide before requesting a quotation.
Quick Answer
For EV charger applications, open loop current sensors are usually more cost-effective and suitable for general current monitoring, DC output current display, and applications where moderate accuracy is acceptable. Closed loop current sensors usually provide better accuracy, lower offset drift, faster response, and stronger stability, making them suitable for high-accuracy charging current feedback, fast protection, and precision DC measurement. Buyers should choose based on current range, accuracy target, response time, isolation voltage, output signal, aperture size, operating temperature, and cost requirement.
1. Why Current Sensor Type Matters In EV Charger Systems

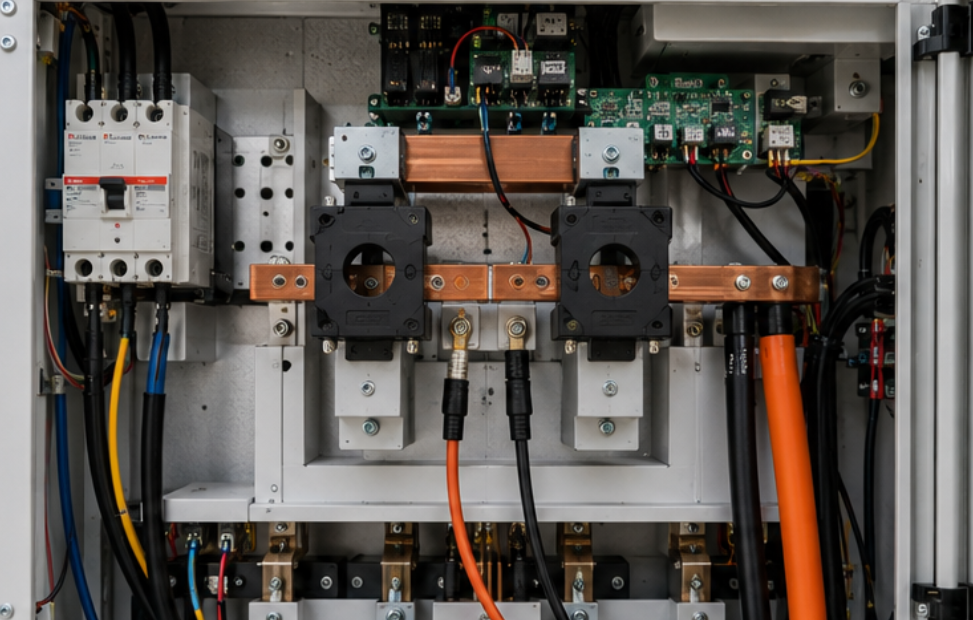

In an EV charger, the current sensor may be installed at the DC output side, DC bus side, power module output, charging cable path, or protection circuit. The measured signal is sent to the controller, ADC, PLC, or charging control board for current regulation, monitoring, and protection. If the current sensor type is not suitable, the charger may face unstable output, incorrect current reading, false protection, or reduced charging performance.
Open loop and closed loop current sensors both use magnetic sensing principles, but their internal structure and performance are different. Open loop sensors are usually simpler, compact, and cost-effective. Closed loop sensors use feedback compensation, which usually improves accuracy, linearity, response speed, and temperature stability.
For EV charger manufacturers, the best choice is not always the most expensive sensor. If the sensor is used only for general current monitoring, an open loop current sensor may be enough. If the sensor signal is used for high-accuracy current feedback, fast shutdown, current balancing, or precision DC measurement, a closed loop current sensor may be more suitable.
Before selecting a sensor type, buyers should define the application position, current range, peak current, output signal, accuracy target, response requirement, isolation voltage, and installation structure. This helps suppliers recommend the correct model faster.
Typical Current Sensor Functions In EV Chargers
DC output charging current monitoring.
Charging current feedback for control regulation.
DC bus current detection in power conversion modules.
Overcurrent protection and fault shutdown.
Parallel charging module current balancing.
System monitoring, diagnostics, and maintenance data collection.

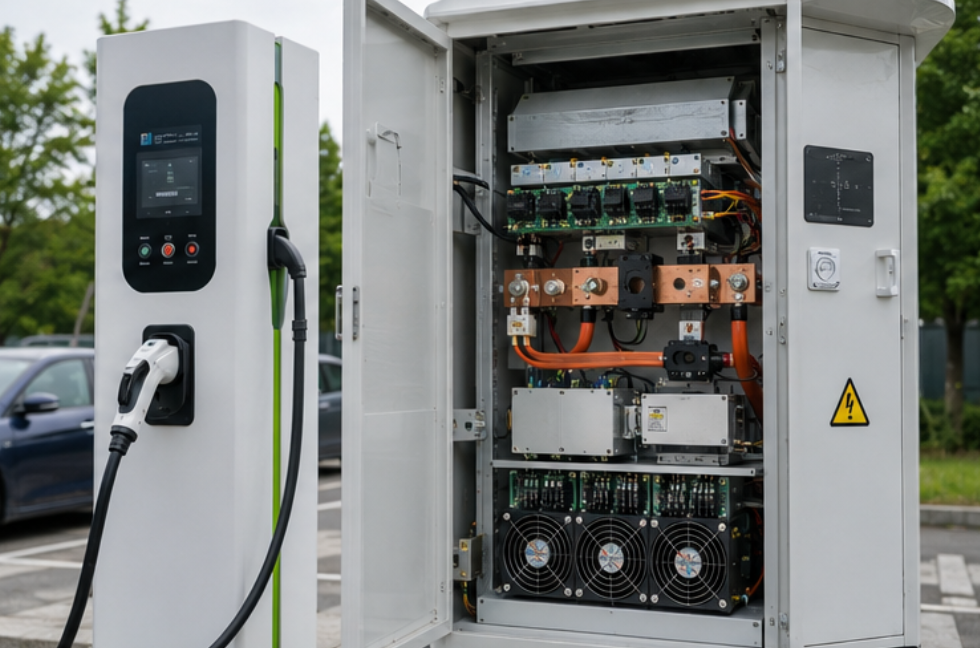

2. Open Loop vs Closed Loop Current Sensor: Key Differences
An open loop current sensor is usually selected when the project needs a cost-effective solution for current monitoring. It can measure AC or DC current depending on the design, and it is often compact and easy to integrate. For many EV charger systems, open loop sensors can be used where moderate accuracy and standard response speed are acceptable.
A closed loop current sensor is usually selected when the application requires better accuracy, lower offset drift, faster response, and stronger linearity. In EV charging modules, this can be useful when the current signal is used for charging control, protection logic, high-accuracy DC measurement, or more demanding power module feedback.
The main difference is not only accuracy. Closed loop sensors often provide better stability under temperature changes and dynamic current conditions. However, they may cost more and may require more careful power supply and integration. Open loop sensors are usually simpler and more economical, but buyers should check whether their accuracy and drift are acceptable for the charger control system.
For OEM projects, the decision should be based on system-level requirements. A low-cost sensor may be acceptable for monitoring, but not for precise current control. A high-performance sensor may improve accuracy, but may not be necessary if the control system does not require it.
| Comparison Item | Open Loop Current Sensor | Closed Loop Current Sensor |
|---|---|---|
| Cost | Usually more cost-effective | Usually higher cost |
| Accuracy | Suitable for general monitoring | Better for high-accuracy feedback |
| Offset Drift | Needs more attention in DC measurement | Usually lower drift and better stability |
| Response Time | Moderate response depending on model | Usually faster response |
| Linearity | Suitable for standard measurement needs | Usually better linearity |
| Power Consumption | Often lower depending on model | May require higher supply current |
| Best Fit | Current display, monitoring, cost-sensitive chargers | Precision feedback, fast protection, high-performance chargers |

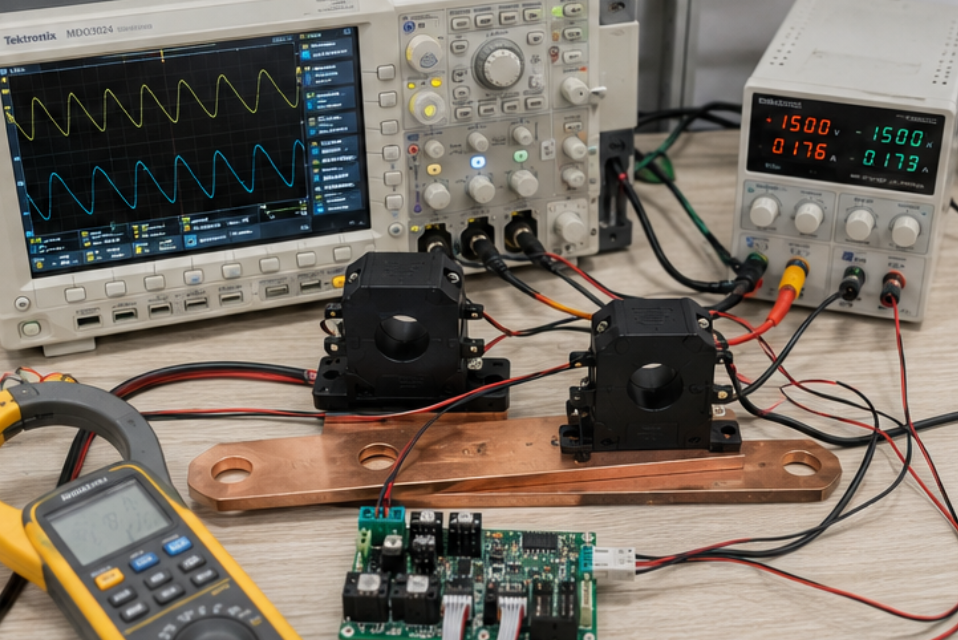

3. When To Choose Open Loop Current Sensors For EV Chargers
Open loop current sensors are often suitable for EV charger projects where cost control, compact size, and standard current monitoring are important. If the current sensor is mainly used for display, basic monitoring, or non-critical feedback, an open loop sensor may provide a practical balance between cost and performance.
For charging piles and charging modules with moderate accuracy requirements, open loop Hall effect current sensors are commonly considered. They can help monitor DC output current, detect abnormal current, and provide an analog signal to the control system. Buyers should still confirm DC measurement capability, accuracy, output signal, isolation voltage, and temperature drift before ordering.
Open loop sensors may also be suitable when the charger design has enough software calibration margin. If the controller can compensate for offset or gain error, an open loop solution may be acceptable. However, if the system requires very stable zero-current output over temperature, buyers should evaluate drift carefully.
For cost-sensitive OEM projects, open loop current sensors can be a strong option when the supplier can provide consistent batches, suitable aperture size, reliable isolation, and output signal compatibility.
| Open Loop Sensor Is Suitable When | Buyer Should Still Check |
|---|---|
| The application is general charging current monitoring | Current range, output signal, and DC measurement stability |
| The project is cost-sensitive | Batch consistency and long-term supply stability |
| Moderate accuracy is acceptable | Accuracy, offset, temperature drift, and calibration method |
| The charger control system has calibration margin | Zero point and gain error under operating temperature |
| Compact installation is required | Aperture size, cable direction, and cabinet space |

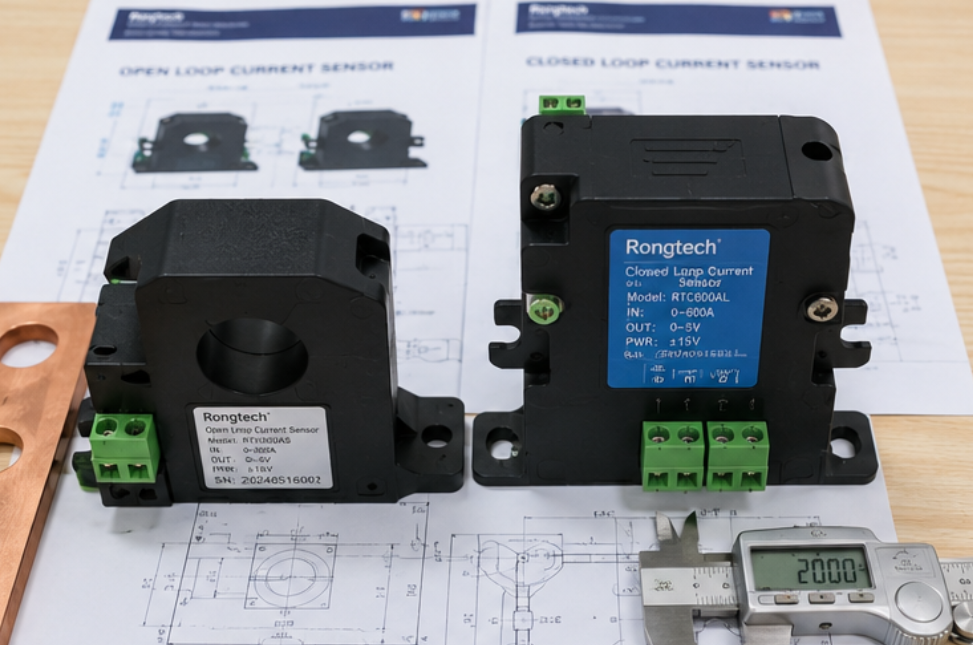

4. When To Choose Closed Loop Current Sensors For EV Chargers
Closed loop current sensors are recommended when EV charger applications require higher accuracy, faster response, lower offset drift, and stronger measurement stability. They are more suitable when the current signal is used for charging current feedback, power module control, fast protection, current sharing, or high-accuracy DC measurement.
For DC fast chargers and high-power charging modules, closed loop sensors may help improve current feedback quality. This can be important when the charger needs stable output control, fast fault detection, and reliable operation under dynamic current changes. If the current signal affects control behavior directly, closed loop sensors are often worth evaluating.
Closed loop sensors are also useful when temperature drift must be minimized. EV charging stations may operate outdoors or inside hot cabinets. If the sensor output changes too much with temperature, current regulation and protection thresholds may be affected. Lower drift helps improve long-term performance.
However, closed loop sensors should still be matched with the system. Buyers should confirm supply voltage, output signal, aperture size, isolation voltage, response time, and available cabinet space. A high-performance sensor still needs to fit the real charger design.
| Closed Loop Sensor Is Suitable When | Buyer Should Confirm |
|---|---|
| The current signal is used for charging control feedback | Accuracy, response time, and output stability |
| Fast overcurrent protection is required | Response time, bandwidth, and protection logic |
| The charger operates under high temperature changes | Offset drift and temperature drift data |
| High-accuracy DC measurement is required | Linearity, zero offset, and calibration data |
| The project is high-reliability OEM production | Batch consistency, test documents, and supplier support |
Final Quote Checklist
Application: EV charging module, DC fast charger, charging pile, or power module.
Measurement position: DC output, DC bus, input side, or protection circuit.
Preferred sensor type: open loop, closed loop, or supplier recommendation.
Rated current, peak current, overload current, and current direction.
Accuracy, offset drift, response time, and bandwidth requirement.
Output signal: 0-5V, 0-10V, 4-20mA, ± output, CAN, RS485, or custom output.
Supply voltage and controller input requirement.
Isolation voltage, working voltage, creepage, and clearance requirement.
Aperture size, busbar size, cable diameter, mounting method, and cabinet space.
Sample quantity, annual demand, certification needs, and customization details.
Conclusion
Open loop current sensors and closed loop current sensors can both be used in EV charger applications, but they serve different needs. Open loop sensors are usually more cost-effective and suitable for general current monitoring. Closed loop sensors usually provide better accuracy, lower drift, faster response, and stronger stability for demanding control and protection applications.
For EV charger manufacturers and OEM buyers, the best choice depends on current range, accuracy target, response requirement, isolation voltage, output signal, aperture size, installation environment, and cost target. A complete parameter list helps suppliers recommend the right sensor type faster and provide a more accurate quotation.
FAQ
1. Which current sensor is better for EV chargers, open loop or closed loop?
It depends on the application. Open loop sensors are suitable for cost-effective monitoring, while closed loop sensors are better for high-accuracy feedback, fast response, and low drift requirements.
2. Can open loop current sensors measure DC charging current?
Yes, suitable open loop Hall effect current sensors can measure DC current, but buyers should confirm accuracy, offset drift, temperature drift, and output stability for the EV charger application.
3. When should I choose a closed loop current sensor?
Choose a closed loop current sensor when the charger requires high accuracy, fast protection response, low drift, stable DC feedback, or precise current control.
4. What output signal should I choose for an EV charger current sensor?
The output signal should match the charger controller or ADC input. Common options include 0-5V, 0-10V, 4-20mA, ±4V, ±5V, CAN, RS485, or customized output.
5. What information should I provide before requesting a quote?
You should provide application, current range, peak current, preferred sensor type, output signal, supply voltage, accuracy target, response time, isolation requirement, aperture size, sample quantity, and annual demand.
