Isolated Current Sensor For High Voltage Systems: What Buyers Should Check
Isolated Current Sensor For High Voltage Systems: What Buyers Should Check
Isolated current sensors are widely used in high voltage systems where current must be measured safely without directly connecting the high-current circuit to the low-voltage control side. They are commonly used in EV chargers, battery energy storage systems, solar inverters, UPS systems, motor drives, railway power systems, DC power supplies, welding machines, and industrial power conversion equipment.
For buyers, choosing an isolated current sensor is not only about current range. The sensor must match working voltage, isolation voltage, creepage distance, clearance distance, rated current, peak current, output signal, supply voltage, accuracy, response time, aperture size, installation structure, operating temperature, and safety requirements.
Quick Answer
To choose an isolated current sensor for high voltage systems, buyers should check the system working voltage, required isolation voltage, rated current, peak current, current type, output signal, supply voltage, accuracy, offset drift, response time, aperture size, busbar or cable dimensions, operating temperature, EMC environment, and certification requirements. For high voltage EV chargers, BESS, inverters, UPS systems, and railway power systems, the sensor should provide safe galvanic isolation, stable measurement, reliable insulation, and compatible output for the controller, BMS, PCS, PLC, ADC, or protection circuit.
1. Why Isolation Matters In High Voltage Current Measurement
High voltage systems often contain DC buses, battery packs, inverter power stages, charging modules, high-current cables, copper busbars, contactors, relays, and protection circuits. Current measurement is necessary for control and safety, but the low-voltage control circuit must be protected from the high-voltage power side. This is why galvanic isolation is one of the most important requirements for current sensors used in high voltage systems.
An isolated current sensor measures current on the primary side and sends a safe low-level signal to the secondary side. The output signal can be used by a controller, BMS, PCS, PLC, ADC, inverter control board, or EV charger control board. Without proper isolation, high voltage stress may damage the control electronics or create safety risk.
Isolation is not only a datasheet number. Buyers should check working voltage, isolation voltage, dielectric strength, creepage distance, clearance distance, insulation material, and installation environment. A sensor may pass a short isolation test but still be unsuitable for long-term use if the working voltage or creepage distance does not match the real system requirement.
In EV chargers, BESS, solar inverters, UPS systems, and railway power equipment, the current sensor may operate close to high voltage conductors for many years. Therefore, buyers should not reduce isolation requirements only to lower price. The correct model should balance safety, measurement accuracy, long-term reliability, and installation compatibility.
Typical High Voltage Applications
EV chargers and DC fast charging modules.
Battery energy storage systems and battery cabinets.
Solar inverters and PCS converters.
UPS systems and industrial DC power supplies.
Motor drives, VFD systems, and servo drives.
Railway traction and railway power systems.
Welding machines and heavy industrial power equipment.
2. Check Isolation Voltage, Working Voltage, Creepage And Clearance
The first isolation parameter to confirm is system working voltage. This is the voltage the sensor must withstand during normal long-term operation. Buyers should provide the system voltage, DC bus voltage, battery voltage, maximum operating voltage, and whether the sensor is used in a DC or AC system.

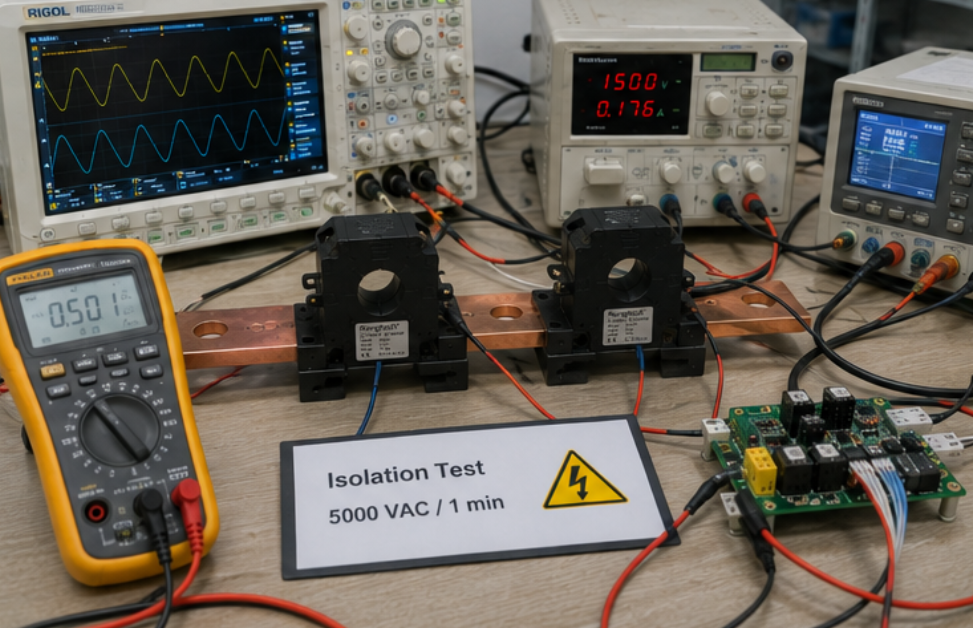

Isolation voltage is usually tested for a short duration and shows how much voltage the sensor insulation can withstand during testing. However, buyers should not confuse isolation test voltage with continuous working voltage. A sensor with a high test voltage may still need to be checked for real working voltage, insulation structure, creepage, and clearance.
Creepage distance is the shortest path along the surface of insulating material between conductive parts. Clearance distance is the shortest air distance between conductive parts. In high voltage cabinets, both must be considered because dust, humidity, pollution degree, altitude, and installation environment may affect insulation safety.
For high voltage EV chargers and BESS systems, buyers should also check whether the sensor installation position leaves enough distance from copper busbars, metal panels, terminals, and nearby high-voltage parts. Even if the sensor itself has good insulation, poor cabinet layout may reduce system safety.
| Isolation Parameter | Why It Matters | What Buyers Should Provide |
|---|---|---|
| Working Voltage | Determines long-term insulation requirement | System voltage, DC bus voltage, battery voltage, or AC voltage |
| Isolation Voltage | Shows short-time insulation withstand capability | 2.5kV, 4kV, 6kV, 10kV, or project-specific requirement |
| Creepage Distance | Important for insulation safety along material surfaces | Safety standard, pollution degree, voltage level, and installation environment |
| Clearance Distance | Important for air insulation between conductive parts | High-voltage spacing requirement and cabinet layout |
| Dielectric Strength | Verifies insulation under test conditions | Test voltage and duration if required by project |
| Installation Environment | Humidity, dust, altitude, and pollution affect insulation safety | Operating environment and cabinet protection condition |
Common Isolation Selection Mistakes
Confusing isolation test voltage with continuous working voltage.
Choosing a sensor only by current range and ignoring insulation distance.
Reducing isolation level to lower cost in high voltage systems.
Ignoring creepage and clearance in compact power cabinets.
Not considering humidity, dust, pollution degree, or altitude.
Installing the sensor too close to high-voltage busbars or metal parts.
3. Match Current Range, Output Signal And Sensor Type
After confirming isolation requirements, buyers should match the current measurement parameters. Rated current, peak current, overload current, and current type should be provided before quotation. High voltage systems may require AC current, DC current, pulse current, leakage current, or bidirectional DC current measurement depending on the application.
The sensor type should be selected according to the measurement purpose. Open loop Hall effect current sensors are commonly used for cost-effective current monitoring. Closed loop current sensors are more suitable for higher accuracy, lower drift, and faster response. Leakage current sensors are used for safety monitoring. Split core sensors are useful when cables cannot be disconnected. Fluxgate sensors may be considered for precision DC measurement applications.
Output signal must match the control system. Common output signals include 0-5V, 0-10V, ±4V, ±5V, 4-20mA, CAN, RS485, or customized output. If the signal does not match the controller, ADC, PLC, BMS, PCS, or monitoring system, additional signal conversion or software modification may be required.
Supply voltage must also be confirmed. Sensors may require +5V, +12V, +15V, +24V, or ±15V. In OEM high voltage systems, the available power rail is often fixed. A sensor that needs a different power supply may increase redesign cost.
| Selection Item | Common Options | Buyer Should Confirm |
|---|---|---|
| Current Type | AC, DC, pulse, leakage, bidirectional DC | Measurement purpose and current waveform |
| Current Range | 100A, 300A, 500A, 1000A, 2000A, custom range | Rated current, peak current, overload duration |
| Sensor Type | Open loop, closed loop, leakage, split core, fluxgate, custom sensor | Accuracy, response, installation, and cost target |
| Output Signal | 0-5V, 0-10V, ± output, 4-20mA, CAN, RS485 | Controller input, ADC range, PLC signal type, communication requirement |
| Supply Voltage | +5V, +12V, +15V, +24V, ±15V | Available power rail in the system |
| Accuracy And Response | Standard accuracy, high accuracy, fast response, low drift | Monitoring, control feedback, protection, or precision measurement |
4. Check Installation Structure And Quotation Parameters

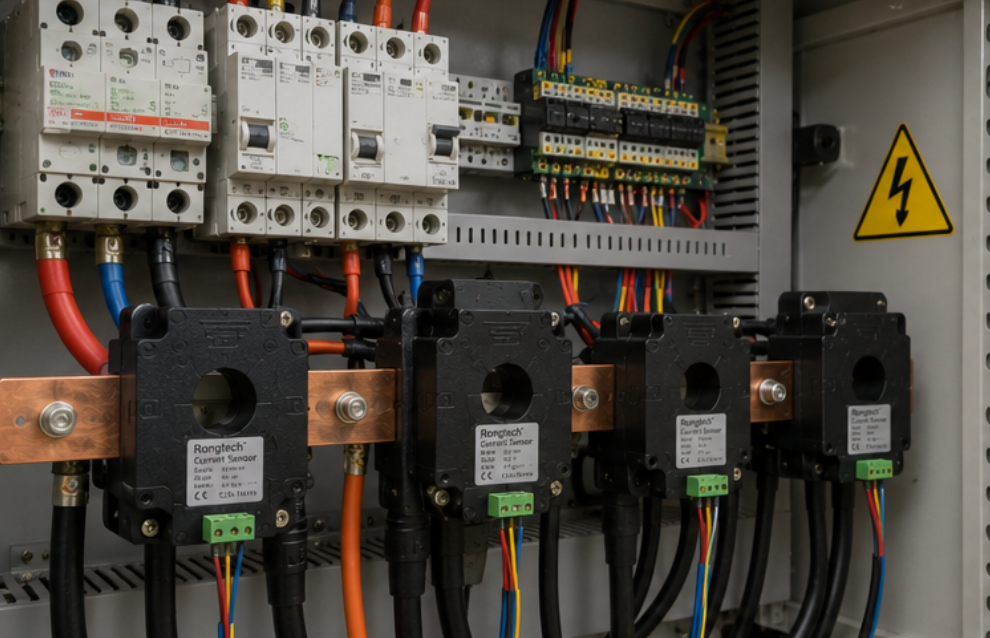

Mechanical installation is very important in high voltage systems. The isolated current sensor must fit the actual cable, copper busbar, laminated busbar, or power conductor. Buyers should provide aperture size, busbar width, busbar thickness, cable diameter, insulation layer thickness, mounting holes, terminal direction, and available cabinet space.
For busbar installation, a rectangular aperture or custom window may be required. For cable installation, a round aperture or split core structure may be more suitable. If the existing cable cannot be disconnected, a split core current sensor may reduce installation difficulty. However, buyers should still compare accuracy, response time, and installation stability.
High voltage cabinets often have limited space and strict insulation requirements. A sensor may fit the busbar but still fail installation if the body is too large, terminal direction is wrong, or output wires are too close to high-voltage parts. Cabinet drawings and installation photos help suppliers judge the best structure.
Before requesting a quote, buyers should prepare a complete parameter list. This reduces repeated communication and helps suppliers recommend the correct isolated current sensor model faster.
Example Quote Request:
Application: High voltage battery energy storage cabinet
Measured current: Bidirectional DC current
System voltage: 1000VDC battery system
Current range: 500A rated, 800A peak
Output signal: 0-5V
Supply voltage: +15V
Isolation requirement: 4kV or higher
Installation: Copper busbar 40 × 6 mm with insulation
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm application and measurement position.
Provide system working voltage and maximum voltage.
Confirm required isolation voltage, creepage, and clearance.
Provide current type, rated current, peak current, and overload condition.
Choose open loop, closed loop, leakage, split core, fluxgate, or custom sensor type.
Match output signal with controller, BMS, PCS, PLC, ADC, or monitoring system.
Confirm supply voltage and wiring definition.
Provide cable diameter, busbar dimensions, aperture size, and installation space.
Check accuracy, drift, response time, operating temperature, and EMC environment.
Provide sample quantity, annual demand, certification needs, and customization details.
Conclusion
Selecting an isolated current sensor for high voltage systems requires a full review of working voltage, isolation voltage, creepage distance, clearance distance, rated current, peak current, output signal, supply voltage, accuracy, response time, aperture size, installation structure, and operating environment.
For EV chargers, BESS, inverters, UPS systems, motor drives, railway power systems, welding machines, and industrial power cabinets, the right isolated current sensor helps improve measurement safety, controller protection, system reliability, and long-term performance. A complete parameter list helps suppliers recommend the correct model faster and provide a more accurate quotation.
FAQ
1. What is an isolated current sensor?
An isolated current sensor measures current on the high-current side and provides a safe low-level output signal to the control side, with galvanic isolation between the primary and secondary circuits.
2. Why is isolation important in high voltage systems?
Isolation protects low-voltage controllers, BMS, PCS, PLC, ADC, and communication circuits from high-voltage power circuits. It is essential for system safety and reliability.
3. Is isolation voltage the same as working voltage?
No. Isolation voltage is usually a short-time test value. Working voltage is the voltage the sensor must withstand during long-term operation. Buyers should check both.
4. What output signal can an isolated current sensor provide?
Common outputs include 0-5V, 0-10V, ±4V, ±5V, 4-20mA, CAN, RS485, or customized output depending on controller requirements.
5. What should I provide before requesting a quote?
Provide application, system voltage, isolation requirement, current type, rated current, peak current, output signal, supply voltage, aperture size, busbar or cable dimensions, sample quantity, and annual demand.
