How To Choose A 500A Current Sensor For EV Charger And BESS Applications
How To Choose A 500A Current Sensor For EV Charger And BESS Applications
A 500A current sensor is widely used in EV charging modules, DC fast chargers, battery energy storage systems, PCS converters, battery cabinets, high-voltage DC bus systems, and industrial power electronics. For buyers, choosing a 500A current sensor is not only about the rated current. The final model must match current type, peak current, bidirectional measurement, accuracy, isolation voltage, output signal, aperture size, conductor structure, temperature range, and application safety requirements.
This guide explains how to choose a 500A current sensor for EV charger and BESS applications, what parameters buyers should confirm before requesting a quote, and how to avoid wrong model selection during sample testing or mass production.
Quick Answer
To choose a 500A current sensor for EV charger and BESS applications, buyers should confirm whether the measured current is DC, AC, pulse, or bidirectional current. Then check rated current, peak current, overload current, accuracy, offset drift, response time, isolation voltage, output signal, supply voltage, aperture size, busbar or cable size, installation method, operating temperature, and certification needs. For EV chargers and battery energy storage systems, isolated Hall effect current sensors, closed loop current sensors, and customized high-current sensors are commonly considered depending on accuracy, response, and cost requirements.
1. Why A 500A Current Sensor Cannot Be Selected By Rated Current Alone
Many buyers start with a simple request: “We need a 500A current sensor.” However, 500A only describes the nominal current range. It does not tell the supplier whether the sensor is used in an EV charging module, BESS cabinet, DC bus, battery pack, inverter output, or protection circuit. It also does not explain whether the sensor needs to measure steady DC current, bidirectional charge and discharge current, or fast-changing current in a power conversion system.
In EV charger applications, a 500A current sensor may be used to monitor DC output charging current, DC bus current, or module-side current feedback. The sensor must support stable DC measurement, safe isolation, accurate output, and strong anti-interference performance because EV charging modules often work in high-voltage and high-power environments.
In battery energy storage systems, a 500A current sensor may monitor battery charge and discharge current, PCS converter current, or DC bus current. Since energy storage systems often require bidirectional current measurement, the selected sensor should correctly detect both charging and discharging directions. Offset drift and long-term stability are especially important for battery-side current measurement.
Peak current is another important factor. A system with 500A rated current may experience 800A, 1000A, or higher short-time peak current during startup, fault conditions, overload, or transient operation. If the sensor range is too small, it may saturate or output inaccurate signals. If the range is too large, normal current resolution may become poor. The best selection should balance rated current, peak current, and measurement resolution.
Key Questions Before Selection
Is the 500A current sensor used for EV charger, BESS, PCS, inverter, DC bus, or battery cabinet?
Is the measured current AC, DC, pulse, leakage, or bidirectional current?
What is the rated current and maximum peak current?
Is the current signal used for monitoring, control feedback, protection, or energy management?
What output signal does the controller, BMS, PCS, ADC, or PLC require?
What isolation voltage is required for the high-voltage system?
What busbar size, cable diameter, or aperture size is needed?
2. Selection Parameters For EV Charger Applications

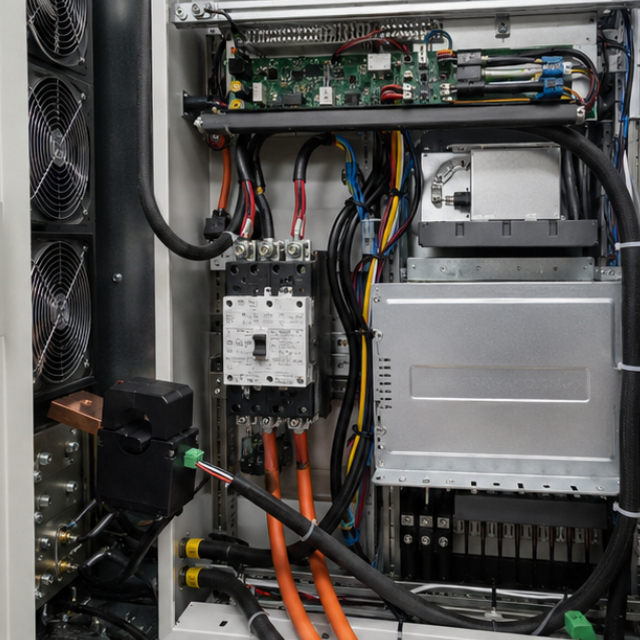

EV charging systems require accurate and reliable current measurement for charging current regulation, module protection, DC output monitoring, fault diagnosis, and communication with the control system. A 500A current sensor used in EV charging equipment should provide stable DC measurement, reliable isolation, good response speed, and strong resistance to electrical noise.
Output signal compatibility should be confirmed early. Some EV charging modules use 0-5V or 0-10V analog output. Some industrial systems may require 4-20mA, CAN, RS485, or customized output. If the output does not match the controller or ADC input, the system may require additional signal conversion, which increases cost and integration risk.
Isolation voltage is critical in high-voltage EV charging systems. The sensor should safely separate the high-current primary side from the low-voltage control circuit. Buyers should confirm system voltage, isolation voltage, dielectric strength, creepage distance, clearance distance, and certification requirements if the product will be used in export or OEM charging equipment.
Response time and anti-interference performance should also be reviewed. EV charging modules may contain SiC MOSFETs, IGBT modules, DC-link capacitors, relays, contactors, switching power supplies, and high-frequency power stages. These components can generate strong electromagnetic noise. Proper sensor selection and wiring layout help reduce signal fluctuation and false protection signals.
| EV Charger Requirement | Why It Matters | Recommended Checkpoint |
|---|---|---|
| DC Current Measurement | Charging output current is usually DC | Confirm the sensor supports stable DC current measurement |
| 500A Rated Current | Defines normal charging current range | Check whether 500A is continuous current or short-time current |
| Peak Current | Prevents sensor saturation during transient or fault conditions | Provide maximum peak current and duration |
| Isolation Voltage | Protects low-voltage control circuits | Confirm isolation level according to system voltage |
| Output Signal | Must match charger controller or ADC | Confirm 0-5V, 0-10V, 4-20mA, CAN, RS485, or custom output |
| EMC Performance | Charging modules contain strong switching noise | Check shielding, grounding, cable routing, and anti-interference design |
3. Selection Parameters For BESS And Battery Cabinet Applications

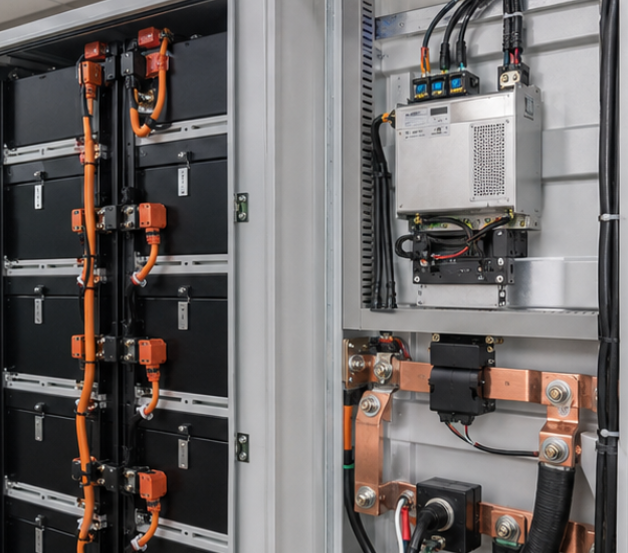

Battery energy storage systems require stable current measurement for charge and discharge control, SOC calculation, PCS operation, battery protection, energy management, and safety monitoring. A 500A current sensor used in a BESS cabinet should support accurate DC current measurement and stable bidirectional output.
Bidirectional measurement is one of the most important requirements in BESS applications. Battery systems charge and discharge, so the current sensor must correctly detect current direction. If the output polarity or sensor direction is wrong, the BMS or PCS may misread charging current as discharging current, causing incorrect control or protection decisions.
Offset drift and temperature drift should be checked carefully. In energy storage systems, the current sensor may operate continuously for long periods. If the zero point drifts with temperature or time, current calculation and energy statistics may become inaccurate. For higher accuracy BESS applications, low-drift closed loop current sensors or high-accuracy Hall effect current sensors are often preferred.

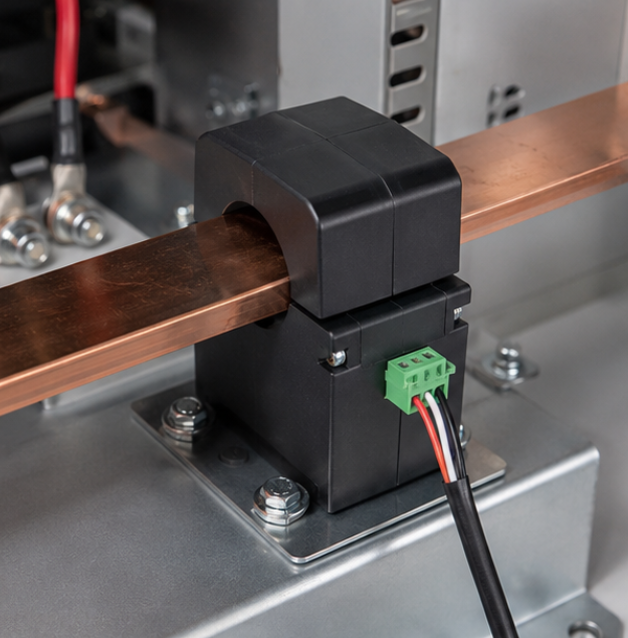

Mechanical installation is also important. BESS cabinets often use copper busbars or thick cables. Buyers should provide busbar width, busbar thickness, cable diameter, aperture size, mounting space, and wiring direction. If the aperture size is too small or the sensor body does not fit the cabinet, the selected model cannot be installed even if the electrical parameters are correct.
| BESS Requirement | Why It Matters | Recommended Checkpoint |
|---|---|---|
| Bidirectional Current | Battery systems charge and discharge | Confirm bidirectional output and current direction marking |
| DC Accuracy | Affects BMS, PCS, and energy calculation | Select suitable accuracy level for control or monitoring |
| Offset Drift | Long-term drift affects current data | Check offset drift and temperature drift data |
| Isolation | High-voltage battery systems require safe signal separation | Confirm working voltage, isolation voltage, creepage, and clearance |
| Aperture Size | Must fit busbar or cable structure | Provide busbar width, thickness, or cable diameter |
| Operating Temperature | Battery cabinets may operate continuously | Check thermal environment and cabinet cooling condition |
EV Charger vs BESS Selection Difference
| Comparison Item | EV Charger Focus | BESS Focus |
|---|---|---|
| Current Direction | Usually output charging current monitoring | Often bidirectional charge and discharge current |
| Accuracy Priority | Charging current regulation and protection | BMS/PCS calculation and long-term energy management |
| Response Requirement | Fast feedback for charging module control | Stable DC measurement and low drift |
| Environment | High power density and switching noise | Long-term operation inside battery cabinets |
| Installation | Module layout and control board compatibility | Busbar size, cable direction, and cabinet space |
4. What Buyers Should Send Before Requesting A 500A Current Sensor Quote
To get a fast and accurate quotation, buyers should send complete technical information instead of only asking for the price of a 500A current sensor. The supplier needs to understand the application, measurement position, current type, output signal, power supply, isolation requirement, conductor size, and installation structure.
If the project is a replacement request, buyers should provide the existing model number, datasheet, drawing, photos, and real working conditions. If the project is a new design, buyers should provide a technical parameter list and installation drawing. If customization is needed, buyers should mention aperture size, terminal type, cable length, connector, output signal, label, and housing requirements.
| Information To Provide | Example | Why It Helps |
|---|---|---|
| Application | EV charger / BESS / PCS / DC bus | Helps select suitable sensor technology |
| Current Range | 500A rated, 800A peak | Prevents saturation and wrong range selection |
| Current Type | DC / bidirectional DC / pulse | Confirms whether sensor supports waveform type |
| Output Signal | 0-5V / 0-10V / 4-20mA / CAN / RS485 | Ensures controller compatibility |
| Supply Voltage | +5V / +15V / +24V / ±15V | Ensures sensor can work with system power rail |
| Isolation Requirement | 4kV / 6kV / project-specific | Supports high-voltage safety design |
| Conductor Size | Busbar 40 × 6 mm / cable diameter 35 mm | Confirms aperture size and installation fit |
| Quantity | 10 samples, 3000 pcs/year forecast | Improves pricing and production planning |
Common Selection Mistakes To Avoid
Asking only for a 500A sensor price without providing application details.
Ignoring peak current and overload current.
Choosing a unidirectional sensor for bidirectional BESS measurement.
Selecting output signal without checking controller input.
Forgetting isolation voltage in high-voltage EV charger or BESS systems.
Not checking busbar size, aperture size, and installation space.
Using a low-cost sensor where low drift and high accuracy are required.
Conclusion
Choosing a 500A current sensor for EV charger and BESS applications requires more than checking the rated current. Buyers should confirm current type, rated current, peak current, bidirectional measurement, accuracy, offset drift, response time, isolation voltage, output signal, supply voltage, aperture size, conductor structure, temperature range, and installation layout.
For EV chargers, a 500A current sensor should support accurate DC charging current monitoring, safe isolation, good response, and anti-interference performance. For BESS applications, the sensor should support bidirectional DC current measurement, low drift, stable long-term output, and reliable installation around busbars or cables. A complete parameter list helps suppliers recommend the right model faster and provide a more accurate quotation.
FAQ
1. Can a 500A current sensor be used for both EV chargers and BESS?
Yes, but the sensor must match the application. EV chargers usually focus on DC charging current control and protection, while BESS applications often require bidirectional current measurement and low drift for long-term battery current monitoring.
2. What output signal is common for 500A current sensors?
Common output signals include 0-5V, 0-10V, 4-20mA, ±4V, ±5V, CAN, RS485, or customized output. The correct output depends on the controller, ADC, BMS, PCS, or PLC input.
3. Why is isolation important for EV charger and BESS current sensors?
Isolation separates the high-current primary circuit from the low-voltage control side. It protects controllers, BMS, PCS, communication modules, and operators in high-voltage power systems.
4. Should buyers provide busbar size before requesting a quote?
Yes. Busbar width, thickness, cable diameter, and installation space help confirm aperture size and sensor structure. Without this information, the selected model may not fit the actual equipment.
5. What information should I provide for a 500A current sensor quote?
You should provide application, current type, rated current, peak current, output signal, supply voltage, isolation requirement, accuracy target, busbar or cable size, aperture size, operating temperature, sample quantity, and annual demand.
