High voltage DC bus voltage sensors are critical components in inverters, EV chargers, battery energy storage systems, UPS systems, motor drives, railway power systems, and industrial power conversion equipment. They monitor DC-link voltage, battery voltage, charging output voltage, converter voltage, and overvoltage protection signals.
For buyers and engineers, selecting a DC bus voltage sensor is not only about voltage range. The sensor must match the system voltage, maximum DC bus voltage, transient overvoltage, isolation voltage, output signal, response time, accuracy, temperature drift, EMC environment, installation method, and controller interface.
Quick Answer
To choose a high voltage DC bus voltage sensor for inverter and EV charger systems, buyers should confirm the DC bus voltage range, maximum operating voltage, transient overvoltage, isolation voltage, accuracy, response time, output signal, supply voltage, operating temperature, EMC environment, installation space, and certification requirements. For high-voltage power electronics, the voltage sensor should provide safe galvanic isolation, stable DC measurement, low drift, fast protection response, and compatible output for the controller, ADC, PLC, BMS, PCS, or charging module control board.
1. Why DC Bus Voltage Measurement Is Important
The DC bus is one of the most important voltage points in power conversion systems. In an inverter, the DC bus connects the rectifier, DC-link capacitor, and inverter power stage. In an EV charger, the DC bus may connect the PFC stage, DC/DC conversion stage, charging output, and protection circuit. If the DC bus voltage is not measured accurately, the system may fail to control power conversion safely.
A high voltage DC bus voltage sensor converts the high-voltage DC signal into a safe low-level signal for the controller. This signal can be used for overvoltage protection, undervoltage protection, DC-link capacitor monitoring, charging voltage regulation, converter feedback, fault diagnosis, and system shutdown logic.
In EV charger systems, DC bus voltage sensing helps maintain stable power conversion and safe charging output. In inverter systems, DC bus voltage feedback helps control the inverter stage and protect power devices such as IGBT modules or SiC MOSFETs. In BESS and PCS systems, voltage sensing supports battery-side monitoring, converter operation, and system protection.
Because the DC bus is usually a high-voltage and high-energy point, the voltage sensor must provide reliable isolation between the primary high-voltage side and the low-voltage control side. Insufficient isolation, wrong voltage range, slow response, or unstable output can create serious system risk.
Typical DC Bus Voltage Sensor Positions
DC-link capacitor voltage monitoring in inverter systems.
DC bus voltage feedback in EV charging modules.
Battery pack voltage monitoring in energy storage systems.
Converter input and output voltage detection.
Overvoltage and undervoltage protection circuits.
Regeneration voltage monitoring in motor drives.
High-voltage DC output monitoring in charging piles and DC power supplies.

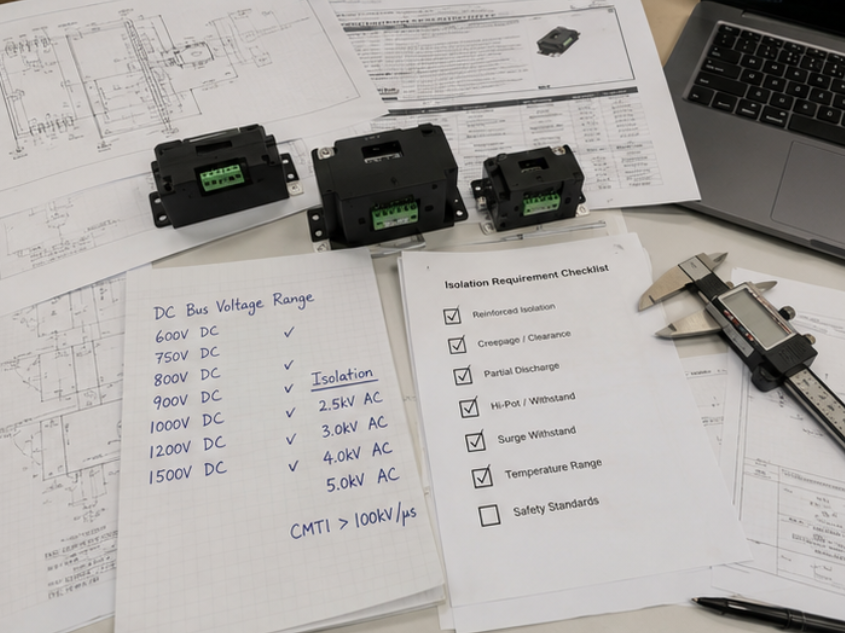

2. Confirm Voltage Range, Transient Voltage And Isolation
The first parameter to confirm is the DC bus voltage range. Buyers should provide the normal working voltage, maximum operating voltage, and possible transient voltage. A system with a nominal 750V DC bus may experience higher transient voltage during switching, braking, fault conditions, or load changes. If the sensor range is too low, it may saturate or become damaged. If the range is too high, useful resolution may decrease.
Transient voltage margin is especially important in inverter and EV charger systems. Power devices such as IGBT modules and SiC MOSFETs can generate fast switching spikes. DC-link capacitors, contactors, relays, inductors, transformers, and wiring layout may also affect voltage stress. The voltage sensor should be selected with enough safety margin for real operating conditions.
Isolation voltage is a core safety requirement. The voltage sensor should safely isolate the high-voltage input side from the low-voltage output side. Buyers should confirm isolation voltage, working voltage, dielectric strength, creepage distance, clearance distance, and insulation structure. In EV chargers, BESS, UPS systems, solar inverters, and railway power systems, isolation should never be reduced only to lower cost.
Accuracy and temperature drift should also be reviewed. If the voltage signal is used only for display, standard accuracy may be enough. If the voltage signal is used for converter feedback, charging control, overvoltage protection, or battery energy management, better accuracy and stable long-term output may be required.
| Selection Parameter | Why It Matters | What Buyers Should Provide |
|---|---|---|
| Nominal DC Bus Voltage | Defines normal voltage measurement range | 400VDC, 750VDC, 1000VDC, 1500VDC, or project-specific voltage |
| Maximum Operating Voltage | Prevents saturation or damage at high voltage | Maximum continuous DC bus voltage |
| Transient Overvoltage | Important during switching, fault, or regeneration conditions | Transient voltage value and duration if available |
| Isolation Voltage | Protects the low-voltage control side | 2.5kV, 4kV, 6kV, 10kV, or project-specific requirement |
| Working Voltage | Determines continuous insulation requirement | System working voltage and safety standard requirement |
| Accuracy | Affects voltage feedback and protection threshold | ±1%, ±0.5%, ±0.2%, or application-specific target |
| Temperature Drift | Affects long-term measurement stability | Operating temperature range and drift requirement |
Common Voltage Range Selection Mistakes
Choosing only by nominal DC bus voltage and ignoring maximum voltage.
Ignoring switching spikes, regeneration voltage, or transient overvoltage.
Confusing isolation test voltage with continuous working voltage.
Selecting too wide a voltage range and losing useful measurement resolution.
Reducing isolation level below the system safety requirement.
Not checking creepage distance and clearance distance in high-voltage cabinets.
3. Output Signal, Response Time And Controller Compatibility
The output signal of the DC bus voltage sensor must match the control system. Common output signals include 0-5V, 0-10V, ±5V, ±10V, 4-20mA, CAN, RS485, or customized output. If the output signal does not match the controller, ADC, PLC, BMS, PCS, or charging module control board, the system may need additional conversion circuits or redesign.
For EV charger systems, voltage feedback may be used for charging voltage regulation, output protection, and DC bus monitoring. For inverter systems, voltage feedback may be used for DC-link control, power stage protection, and fault shutdown. In these cases, output scaling, zero point, response time, and noise immunity should be checked carefully.
Response time depends on the function of the voltage signal. If the voltage sensor is used for slow monitoring, a moderate response speed may be acceptable. If it is used for overvoltage protection, fast converter control, fault detection, or emergency shutdown, a faster response voltage sensor may be required.
Power electronics systems usually contain high-frequency switching noise. IGBT modules, SiC MOSFETs, relays, contactors, DC-link capacitors, transformers, and power cables may introduce electromagnetic interference. The voltage sensor should provide stable output under real cabinet conditions, and the wiring should be routed away from high-noise power lines when possible.
| Output / Interface | Typical Use | Selection Notes |
|---|---|---|
| 0-5V | Common controller or ADC input | Confirm scaling, output range, and controller input limit |
| 0-10V | Industrial controller or monitoring system | Useful for PLC or industrial analog input |
| ±5V / ±10V | Special converter feedback systems | Confirm bipolar input and signal ground design |
| 4-20mA | Long-distance industrial signal transmission | Better for stronger noise immunity over longer wiring distance |
| CAN / RS485 | Digital monitoring or energy management system | Confirm protocol, address, baud rate, and data format |
| Custom Output | OEM inverter or EV charger projects | Provide controller input requirements before quotation |
4. Application Matching For Inverters And EV Chargers

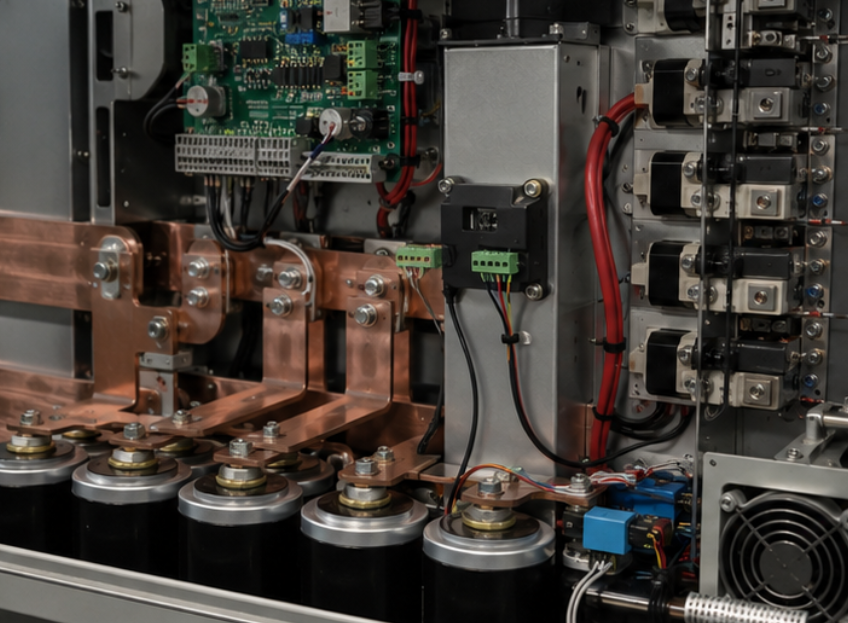

In inverter systems, the DC bus voltage sensor is usually connected near the DC-link capacitor or power module section. The sensor helps monitor DC-link voltage and supports overvoltage protection, undervoltage protection, inverter control, and fault diagnosis. During braking, regeneration, grid fluctuation, or load changes, DC bus voltage can change rapidly, so voltage range and response time should be reviewed carefully.

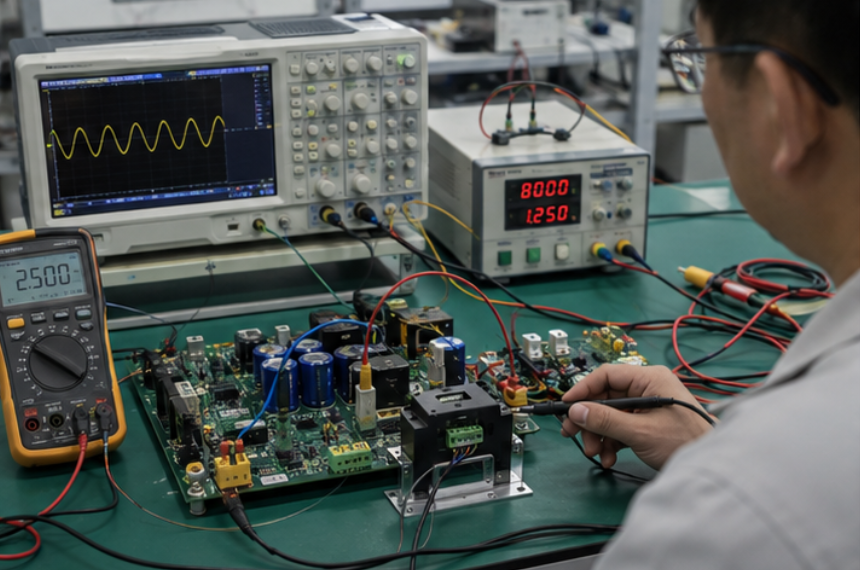

In EV charger systems, the voltage sensor may monitor the DC bus voltage, DC charging output voltage, module-side voltage, or high-voltage protection point. EV charging modules often operate in compact high-power cabinets, so the voltage sensor should provide stable output, strong isolation, compact integration, and reliable performance under switching noise and heat.
For BESS and PCS systems, the voltage sensor may monitor battery pack voltage, DC bus voltage, and converter voltage. Long-term stability, low drift, and safe isolation are especially important because energy storage systems often operate continuously for long periods.
Before requesting a quote, buyers should provide application, DC bus voltage range, maximum voltage, transient voltage, output signal, isolation voltage, supply voltage, accuracy target, response time, installation method, operating temperature, and quantity. If the project is a replacement request, the original sensor model, datasheet, and wiring definition should also be provided.
| Application | Voltage Sensor Function | Selection Focus |
|---|---|---|
| Solar Inverter | DC-link voltage monitoring and inverter protection | Stable DC measurement, low drift, temperature stability |
| EV Charging Module | DC bus voltage feedback and charging output monitoring | High isolation, fast response, controller-compatible output |
| Battery Energy Storage System | Battery pack voltage and PCS DC bus monitoring | Low drift, long-term stability, safe isolation |
| Motor Drive / VFD | DC-link voltage and regeneration voltage monitoring | Transient voltage margin and protection response |
| UPS System | DC bus and backup power voltage monitoring | Reliable isolation, thermal stability, continuous operation |
| Railway Power System | Traction converter voltage monitoring and protection | High reliability, insulation strength, EMC resistance |
Final Quote Checklist
Application: inverter, EV charger, BESS, UPS, motor drive, or railway power system.
Measurement position: DC bus, DC-link capacitor, battery side, charging output, or protection point.
Nominal DC voltage, maximum voltage, and transient overvoltage.
Accuracy, linearity, temperature drift, and response time requirements.
Output signal and controller input requirement.
Supply voltage available in the system.
Isolation voltage, working voltage, creepage, and clearance requirement.
Operating temperature, EMC environment, and installation method.
Sample quantity, annual demand, certification needs, and customization details.
Conclusion
Choosing a high voltage DC bus voltage sensor for inverter and EV charger systems requires careful review of voltage range, maximum voltage, transient overvoltage, isolation voltage, output signal, response time, accuracy, temperature drift, EMC performance, and controller compatibility.
For solar inverters, EV charging modules, battery energy storage systems, UPS systems, motor drives, railway power systems, and industrial power conversion equipment, the right voltage sensor helps improve DC bus monitoring, charging control, inverter protection, fault diagnosis, and long-term system reliability. A complete parameter list allows suppliers to recommend the correct model faster and provide a more accurate quotation.
FAQ
1. What is a DC bus voltage sensor used for?
A DC bus voltage sensor measures high-voltage DC bus voltage and converts it into a safe low-level signal for the controller, ADC, PLC, BMS, PCS, or charging module control board.
2. Why is isolation important for high voltage voltage sensors?
Isolation separates the high-voltage measurement side from the low-voltage control side. It protects control electronics, communication circuits, and operators in high-voltage power conversion systems.
3. How should I choose the voltage range?
The voltage range should cover nominal DC bus voltage, maximum operating voltage, transient overvoltage, regeneration voltage, and fault conditions with enough safety margin.
4. What output signal should I choose?
The output signal should match the controller, ADC, PLC, BMS, PCS, or monitoring system. Common options include 0-5V, 0-10V, ±5V, ±10V, 4-20mA, CAN, RS485, or customized output.
5. What information should I provide before requesting a quote?
You should provide application, measurement position, nominal DC voltage, maximum voltage, transient voltage, output signal, supply voltage, isolation requirement, accuracy target, response time, installation method, sample quantity, and annual demand.
Request A High Voltage DC Bus Voltage Sensor Quote
If you need high voltage DC bus voltage sensors for inverters, EV chargers, battery energy storage systems, UPS systems, motor drives, railway power systems, or industrial power conversion equipment, send us your DC bus voltage range, maximum voltage, transient voltage, output signal, isolation requirement, response time, installation method, and estimated quantity. Our team can help you match a suitable model and provide a practical quotation.
