Hall Effect Current Sensor For DC Fast Charger What Buyers Should Compare
Hall Effect Current Sensor For DC Fast Charger What Buyers Should Compare
Hall effect current sensors are widely used in DC fast chargers for output current monitoring, charging current feedback, DC bus current detection, overcurrent protection, and power module diagnosis. They can measure DC current without direct electrical contact with the high-current conductor, making them suitable for high-voltage charging systems.
For DC fast charger manufacturers and OEM buyers, choosing a Hall effect current sensor should not be based only on current range or price. Buyers should compare current type, rated current, peak current, output signal, aperture size, isolation voltage, accuracy, response time, temperature drift, EMC performance, and installation structure before ordering samples.
Quick Answer
When comparing Hall effect current sensors for DC fast chargers, buyers should confirm rated current, peak current, DC measurement capability, output signal, zero-current output, supply voltage, aperture size, busbar or cable dimensions, isolation voltage, accuracy, response time, temperature drift, EMC resistance, and mounting method. The right sensor should match the charger controller input, fit the DC output conductor, and remain stable under high-voltage and high-current charging conditions.
1. Why Hall Effect Current Sensors Are Common In DC Fast Chargers

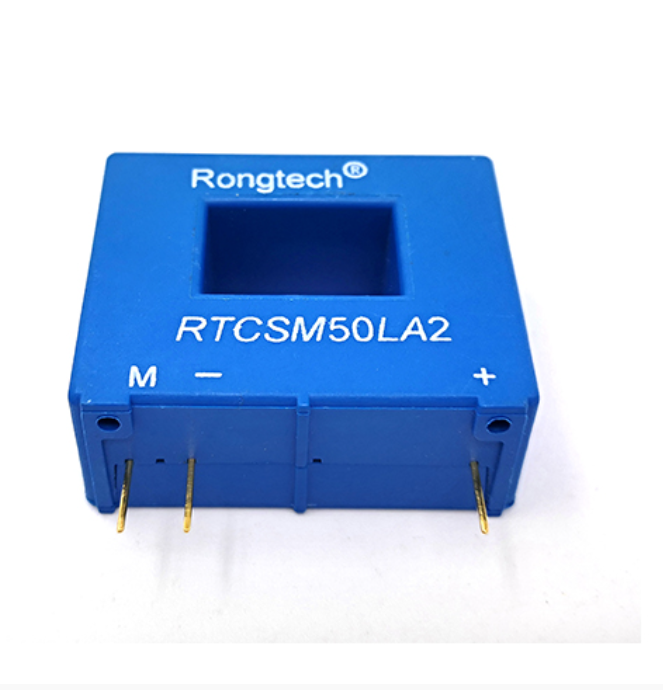

DC fast chargers need real-time current measurement to control charging output, protect power modules, monitor charging cables, and detect abnormal current. A Hall effect current sensor can measure current through a conductor passing through its aperture, while keeping electrical isolation between the high-current side and the low-voltage control side.
In a DC fast charger, the current sensor may be installed on the DC output busbar, charging cable path, module output side, or internal DC bus circuit. The sensor signal is usually sent to the charger controller, ADC input, MCU board, PLC, or protection circuit. If the sensor output is unstable or mismatched, the charger may display wrong current, trigger false protection, or fail during system testing.
Hall effect current sensors are popular because they support DC current measurement, provide galvanic isolation, and can be designed for different current ranges, output signals, and aperture sizes. However, buyers still need to compare several technical details before choosing a model.
Typical DC Fast Charger Applications
DC output current monitoring for fast charging systems.
Charging current feedback for charger controller regulation.
Overcurrent protection and fault shutdown support.
Power module output current detection and balancing.
DC bus current monitoring inside charging modules.
Charging cable current monitoring and system diagnosis.
2. Compare Rated Current And Peak Current Carefully
The first parameter to compare is current range. DC fast chargers may use 300A, 500A, 600A, 800A, 1000A, or customized current sensors depending on output power, charging connector, cable rating, and system design. Buyers should confirm both rated current and peak current before choosing a Hall effect current sensor.
A charger rated at 500A output may still experience short-time peak current during dynamic control, load changes, abnormal conditions, or protection events. If the current sensor range is too small, it may saturate. If the range is too large, the useful measurement resolution may decrease during normal charging current.
Buyers should also confirm whether the sensor is used only for monitoring or for feedback control. A sensor used for charging current control may require better accuracy, lower drift, and faster response than a sensor used only for display.
| Current Parameter | Why It Matters | Buyer Should Compare |
|---|---|---|
| Rated Current | Defines normal measurement range | 300A, 500A, 600A, 800A, 1000A or custom range |
| Peak Current | Prevents saturation during transient or overload conditions | Peak current value and duration |
| Measurement Direction | Some systems may require bidirectional detection | Unidirectional DC or bidirectional DC current |
| Measurement Purpose | Different functions need different performance levels | Display, feedback, protection, or power module diagnosis |
| Resolution Requirement | Oversized range may reduce useful signal resolution | Normal operating current and controller input resolution |
3. Compare Output Signal And Controller Compatibility

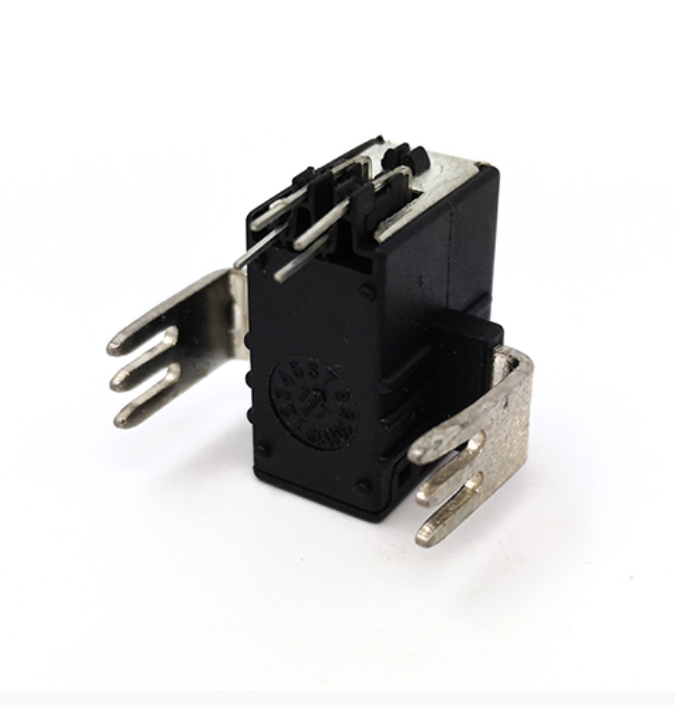

Output signal matching is one of the most important checks when comparing Hall effect current sensors for DC fast chargers. The sensor output must match the charger controller, ADC input, PLC, MCU board, protection circuit, or monitoring system.
Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. A 0-5V Hall current sensor is often used with compact controller boards. A 0-10V or 4-20mA model may be used for industrial control systems. Digital output may be selected for smart monitoring platforms.
For bidirectional DC current measurement, zero-current output must be confirmed. Some sensors use 2.5V as zero current in a 0-5V system. Some use bipolar output such as ±5V. If the controller does not support the same signal logic, the charger may calculate current direction incorrectly.
| Output Signal | Typical Use In DC Fast Charger | Buyer Should Compare |
|---|---|---|
| 0-5V | ADC input, MCU board, charger controller | Input range, output scaling, zero point, signal ground |
| 0-10V | Industrial controller or PLC input | PLC input range and voltage tolerance |
| ±5V | Bidirectional current feedback | Bipolar input and current direction logic |
| 4-20mA | Long-distance industrial signal transmission | Loop power, load resistance, wiring distance, scaling |
| CAN / RS485 | Smart charger monitoring system | Protocol, baud rate, address, data format |
| Custom Output | OEM charger or replacement project | Output range, connector, pin definition, scaling |
4. Compare Aperture Size And Installation Structure

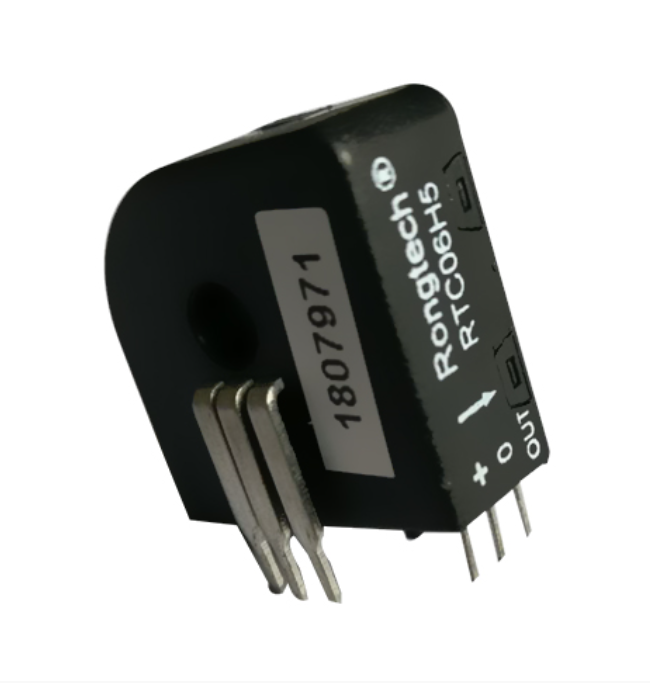

A Hall effect current sensor must fit the actual conductor inside the DC fast charger. The conductor may be a round DC output cable, flat copper busbar, laminated busbar, or parallel cable group. If the aperture is too small, the sensor cannot be installed. If the sensor body is too large, it may interfere with cabinet layout or wiring.
For cable installation, buyers should provide the full cable outer diameter, not only the conductor cross-section. For busbar installation, buyers should provide busbar width, thickness, insulation layer, and installation direction. If the charger cabinet has a fixed layout, mounting hole distance and terminal direction should also be checked.
For OEM charger projects, custom aperture size may be necessary when standard models cannot fit the busbar or cable structure. A supplier with custom aperture capability can reduce cabinet redesign work and improve assembly efficiency.
| Installation Item | Why It Matters | Buyer Should Compare |
|---|---|---|
| Cable Outer Diameter | Determines whether cable can pass through the sensor | Full cable diameter including insulation |
| Busbar Width | Determines required aperture width | Copper busbar width and coating if any |
| Busbar Thickness | Determines aperture height and clearance | Busbar thickness and insulation layer thickness |
| Aperture Shape | Round cable and flat busbar need different structures | Round aperture, rectangular aperture, split core, or custom window |
| Mounting Method | Affects charger assembly and long-term stability | Panel mount, busbar mount, PCB mount, DIN rail, or custom bracket |
| Available Space | Prevents mechanical interference | Height, width, depth, wiring route, and nearby components |
5. Compare Isolation Voltage, Accuracy, Drift And Response Time
DC fast chargers work in high-voltage and high-current environments. The Hall effect current sensor should provide proper isolation between the high-current conductor and the low-voltage controller side. Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance, and insulation requirements.
Accuracy and drift should also be compared. If the sensor is used for charging current feedback, unstable output or large temperature drift may affect charging control. If the sensor is used for current display only, standard accuracy may be acceptable. Buyers should choose performance based on the real function of the signal.
Response time is important for overcurrent protection and fault detection. DC fast chargers may require fast shutdown when abnormal current occurs. A slow sensor may delay protection response. EMC performance should also be checked because charger cabinets contain switching power modules, contactors, fans, relays, and communication wiring.
| Performance Item | Why It Matters | Buyer Should Compare |
|---|---|---|
| Isolation Voltage | Protects charger controller and low-voltage signal circuit | 2.5kV, 4kV, 6kV, or project-specific requirement |
| Accuracy | Affects charging current feedback and monitoring quality | General monitoring or high-accuracy control requirement |
| Offset Drift | Affects zero-current stability and long-term output reliability | Temperature drift and zero output stability |
| Response Time | Important for fast protection and feedback control | Monitoring, feedback, or fast shutdown requirement |
| Operating Temperature | Charger cabinets may become hot during operation | Temperature range and cooling condition |
| EMC Performance | Switching modules may create signal noise | Grounding, shielding, wiring layout, cabinet environment |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “Hall effect current sensor for DC fast charger.” The supplier needs application, rated current, peak current, current direction, output signal, supply voltage, aperture size, busbar or cable dimensions, isolation requirement, accuracy target, response time, operating temperature, sample quantity, and annual demand.
If the project is a replacement request, buyers should provide the original sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the supplier evaluate whether a standard model, similar model, or customized Hall effect current sensor is needed.
Example Quote Request:
Application: DC fast charger output current monitoring
Current range: 500A rated, 800A peak for short-time operation
Measured current: DC output current
Output signal: 0-5V or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Copper busbar 40 × 6 mm or DC output cable
Function: Charging current feedback and overcurrent protection
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm DC fast charger application and measurement position.
Confirm rated current, peak current, and overload duration.
Confirm DC or bidirectional DC measurement requirement.
Match output signal with charger controller, ADC, PLC, or monitoring system.
Confirm zero-current output and current direction if bidirectional measurement is required.
Check supply voltage and pin definition.
Confirm aperture size, cable outer diameter, or busbar dimensions.
Check isolation voltage, working voltage, creepage, and clearance.
Review accuracy, offset drift, response time, EMC, and operating temperature.
Test samples under real charger load and cabinet conditions before mass production.
Conclusion
A Hall effect current sensor for DC fast chargers should be compared based on real electrical and mechanical requirements. Buyers should not choose only by current range or price. Output signal, aperture size, isolation voltage, peak current, response time, accuracy, drift, EMC performance, and controller compatibility should all be checked before sample approval.
For DC fast charger manufacturers and OEM buyers, a complete parameter list helps the supplier recommend the correct Hall effect current sensor faster, reduce testing risk, and support stable mass production.
FAQ
1. Why use a Hall effect current sensor in a DC fast charger?
A Hall effect current sensor can measure DC current with electrical isolation, making it suitable for DC output current monitoring, charging current feedback, and overcurrent protection in high-voltage charging systems.
2. What current range is common for DC fast charger Hall sensors?
Common current ranges may include 300A, 500A, 600A, 800A, 1000A, or customized ratings depending on charger power, output cable, connector type, and system design.
3. What output signal should buyers choose?
The output should match the charger controller. Common options include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output.
4. Why is aperture size important?
Aperture size determines whether the sensor can fit the DC output cable or copper busbar. Buyers should provide cable outer diameter or busbar dimensions before requesting a quote.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, sample quantity, annual demand, and customization needs.
Request A Hall Effect Current Sensor Quote For DC Fast Chargers
If you need Hall effect current sensors for DC fast chargers, EV charging modules, charging piles, power conversion modules or high-voltage charging systems, send us your rated current, peak current, output signal, isolation requirement, aperture size, busbar or cable dimensions, sample quantity and annual demand. Our team can help you match a suitable current sensor solution for OEM production.
