Current Sensor For Battery Rack Output Monitoring In Energy Storage Systems
Current Sensor For Battery Rack Output Monitoring In Energy Storage Systems

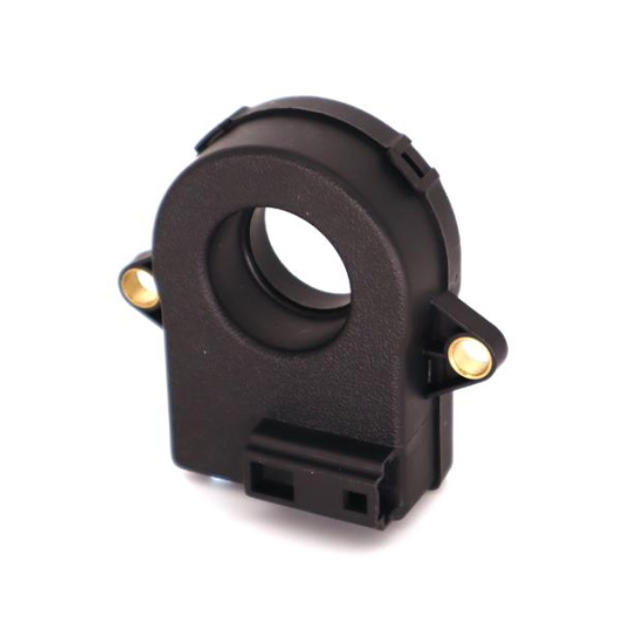

Battery rack output current monitoring is an important part of energy storage system safety, control, and operation management. A current sensor installed at the battery rack output helps measure charge and discharge current, monitor rack-level current balance, support BMS and PCS control, and detect abnormal current before it affects the whole system.
For battery energy storage system manufacturers, battery cabinet suppliers, PCS integrators, and OEM buyers, choosing a current sensor for battery rack output monitoring is not only about rated current. Buyers should confirm bidirectional DC measurement, output signal, aperture size, busbar or cable structure, isolation voltage, accuracy, offset drift, response time, operating temperature, and controller compatibility before ordering samples or starting mass production.
Quick Answer
To choose a current sensor for battery rack output monitoring, buyers should confirm the battery rack current range, maximum charge and discharge current, peak current, bidirectional DC measurement requirement, output signal, zero-current output, supply voltage, isolation voltage, aperture size, busbar or cable dimensions, accuracy, offset drift, response time, EMC environment, and controller input. The sensor should provide stable rack-level current data for BMS, PCS, EMS, protection circuits, and monitoring systems.
1. Why Battery Rack Output Current Monitoring Matters
In an energy storage system, a battery rack usually contains multiple battery modules connected in series or parallel. The rack output current represents the real charge and discharge current flowing between the battery rack and the DC bus, PCS cabinet, DC combiner cabinet, or battery cabinet output circuit.
Current monitoring at the battery rack output helps the system detect abnormal current, current imbalance, overload conditions, reverse current, short-time peak current, and possible rack-level faults. This information can support BMS calculation, PCS current feedback, EMS monitoring, protection logic, and maintenance diagnosis.
Compared with cabinet-level current monitoring, rack-level output monitoring can provide more detailed information. If one rack behaves differently from other racks, the system can identify the problem earlier. This is especially useful in large commercial and industrial BESS projects where multiple racks are connected to the same DC bus or PCS system.
Typical Battery Rack Output Monitoring Functions
Battery rack charge and discharge current measurement.
Rack-level current balance monitoring in energy storage systems.
Battery rack output current feedback for BMS, PCS, or EMS.
Overcurrent protection and abnormal rack current diagnosis.
DC bus current contribution monitoring from each rack.
Maintenance data collection for battery cabinet and energy storage operation.
2. Confirm Current Range, Peak Current And Bidirectional DC Measurement
Battery rack output current may vary according to rack capacity, battery voltage, system power, PCS operation strategy, charge and discharge mode, and system protection settings. Buyers should confirm normal current, maximum continuous current, peak current, overload duration, and fault current if available.
For most battery rack output monitoring applications, bidirectional DC measurement is required. During charging, current flows into the battery rack. During discharging, current flows out of the battery rack. The current sensor should detect both directions correctly and provide a stable zero-current output point.
If the current range is too small, the sensor may saturate during peak current. If the range is too large, normal current resolution may become poor. A suitable sensor should balance peak current margin and measurement accuracy in the normal rack operating range.
| Current Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Rated Current | Defines normal rack output current measurement range | 200A, 300A, 500A, 1000A or project-specific rating |
| Peak Current | Prevents saturation during short-time peak operation | Peak current value and duration |
| Current Direction | Battery rack output may charge and discharge | Unidirectional or bidirectional DC measurement |
| Zero-Current Output | Affects charge and discharge direction calculation | Midpoint output, bipolar output, or customized zero point |
| Measurement Purpose | Different purposes require different accuracy and response | BMS calculation, PCS feedback, protection, or monitoring |
3. Match Output Signal With BMS, PCS Or EMS
The current sensor output must match the BMS, PCS controller, EMS, ADC input, PLC, monitoring system, or data acquisition unit. If the output signal does not match the controller input, the system may display wrong current, calculate wrong rack current direction, or require additional signal conversion.
Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. For BMS and compact control boards, 0-5V or midpoint output may be common. For industrial monitoring systems, 0-10V or 4-20mA may be used. For smart energy storage systems, CAN or RS485 may also be selected.
For bidirectional rack current monitoring, buyers should confirm how zero current is represented. If the sensor output logic does not match the BMS or PCS algorithm, the system may misjudge charge and discharge current direction.
| Output Signal | Typical Use In Battery Rack Monitoring | Buyer Should Confirm |
|---|---|---|
| 0-5V | BMS, ADC input, compact control board | Input range, scaling, zero point, signal ground |
| 0-10V | Industrial controller or PLC analog input | PLC input compatibility and maximum voltage tolerance |
| ±5V | Bidirectional DC rack current measurement | Bipolar input and current direction logic |
| 4-20mA | Long-distance industrial signal transmission | Loop power, load resistance, wiring distance, scaling |
| CAN / RS485 | Smart monitoring and energy management | Protocol, baud rate, address, data format |
| Custom Output | OEM battery rack or replacement project | Output range, connector, pin definition, scaling |
4. Check Aperture Size For Rack Output Busbar Or Cable
A battery rack output current sensor must fit the actual conductor inside the rack or cabinet. The conductor may be a copper busbar, laminated busbar, thick DC cable, or parallel cable group. If the aperture is too small, the sensor cannot be installed. If the body is too large, it may interfere with terminals, fuses, contactors, insulation supports, or cabinet walls.
For busbar installation, buyers should provide busbar width, thickness, insulation layer, orientation, and available space. For cable installation, buyers should provide the full cable outer diameter, cable quantity, bending radius, and installation direction. For retrofit energy storage cabinets, split core current sensors may be considered when cables cannot be disconnected.
For OEM battery rack projects, cabinet photos and mechanical drawings help the supplier judge whether a standard aperture, rectangular aperture, split core structure, or custom window design is more suitable.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Busbar Width | Determines required aperture width | 30mm, 40mm, 60mm, 80mm or custom width |
| Busbar Thickness | Determines aperture height and clearance | 5mm, 6mm, 8mm, 10mm or custom thickness |
| Cable Outer Diameter | Determines whether the cable can pass through the aperture | Full cable diameter including insulation |
| Aperture Shape | Different conductor shapes need different windows | Round aperture, rectangular aperture, split core, or custom window |
| Mounting Method | Affects rack assembly and long-term stability | Panel mount, busbar mount, base mount, DIN rail or custom bracket |
| Available Space | Prevents interference with rack components | Height, width, depth, nearby components, wiring route |
5. Confirm Isolation Voltage, Accuracy And Long-Term Stability
Battery rack output current sensors often work near high-voltage DC circuits. The sensor should isolate the high-current conductor side from the low-voltage signal side. Buyers should confirm working voltage, isolation voltage, creepage distance, clearance distance, and insulation requirements according to the energy storage system voltage level.
Accuracy and offset drift are also important for rack-level current monitoring. If the sensor zero point drifts with temperature or time, the BMS or monitoring system may calculate inaccurate rack current data. In large BESS projects, small errors may accumulate and affect system analysis.
The battery rack environment may include heat, dense wiring, high-voltage cables, contactors, fuses, communication lines, and switching noise from PCS cabinets. The sensor output should remain stable under real operating conditions, not only during bench testing.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Isolation Voltage | Protects BMS, PCS and low-voltage signal circuits | 2.5kV, 4kV, 6kV or project-specific requirement |
| Working Voltage | Defines long-term insulation requirement | Battery rack voltage, DC bus voltage and maximum system voltage |
| Accuracy | Affects rack current data quality | General monitoring or high-accuracy measurement requirement |
| Offset Drift | Affects zero-current stability and long-term data reliability | Temperature drift and zero output stability requirement |
| Response Time | Important for protection and rack current diagnosis | Monitoring, feedback or protection requirement |
| EMC Performance | Energy storage cabinets may contain electrical noise | Grounding, shielding, wiring layout and cabinet environment |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “battery rack current sensor.” The supplier needs application, rack current range, peak current, current direction, output signal, zero-current output requirement, supply voltage, isolation voltage, aperture size, busbar or cable dimensions, installation space, accuracy target, response time, operating environment, sample quantity and annual demand.
If the project is a replacement request, buyers should also provide the original current sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the supplier evaluate whether a direct replacement, similar model, or customized rack output current sensor is needed.
Example Quote Request:
Application: Battery rack output current monitoring in energy storage system
Current range: 500A rated, 800A peak for short-time operation
Measured current: Bidirectional DC current
Output signal: 0-5V with midpoint zero-current output or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Battery rack output busbar or DC cable dimensions provided
Function: Rack-level current monitoring, BMS calculation and protection
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm battery rack output monitoring application and measurement position.
Confirm rated current, peak current and overload duration.
Confirm bidirectional DC measurement requirement.
Match output signal with BMS, PCS, EMS, ADC or monitoring system.
Confirm zero-current output and charge/discharge direction logic.
Check supply voltage and pin definition.
Confirm aperture size, busbar size or cable outer diameter.
Check isolation voltage, working voltage, creepage and clearance.
Review accuracy, offset drift, response time, EMC and operating temperature.
Provide sample quantity, annual demand and customization details.
Conclusion
A current sensor for battery rack output monitoring should be selected according to real energy storage system requirements. Buyers should not choose only by rated current. Bidirectional DC measurement, output signal, zero-current output, aperture size, isolation voltage, accuracy, offset drift, response time, EMC performance and controller compatibility should all be checked before sample approval.
For battery energy storage system manufacturers, battery cabinet suppliers, PCS integrators and OEM buyers, a complete parameter list helps the supplier recommend the correct battery rack current sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a battery rack output current sensor used for?
It is used to measure charge and discharge current at the battery rack output, support BMS and PCS control, monitor rack-level current balance, and detect abnormal current conditions.
2. Does battery rack output monitoring need bidirectional DC measurement?
In most energy storage applications, yes. The current sensor should detect both charging current and discharging current so the system can understand current direction correctly.
3. What output signal should a battery rack current sensor provide?
The output should match the BMS, PCS, EMS, ADC, PLC or monitoring system. Common options include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485 or customized output.
4. Why is aperture size important?
Aperture size determines whether the sensor can fit the battery rack output busbar or DC cable. Buyers should provide busbar width, busbar thickness, cable outer diameter and installation space before ordering.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, zero-current output requirement, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, sample quantity, annual demand and customization needs.
Request A Current Sensor Quote For Battery Rack Output Monitoring
If you need current sensors for battery rack output monitoring, BESS cabinets, PCS systems, battery modules or energy storage power conversion projects, send us your rated current, peak current, output signal, zero-current requirement, isolation voltage, aperture size, busbar or cable dimensions, sample quantity and annual demand. Our team can help you match a suitable current sensor solution for OEM production.
