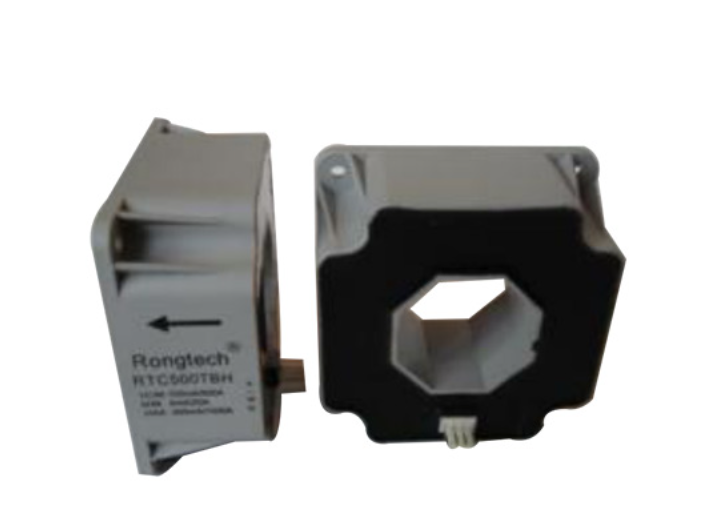

A closed loop current sensor is widely used in PCS converters, battery energy storage systems, bidirectional DC power conversion equipment, solar inverter systems, UPS systems, motor drives, and industrial DC cabinets. It helps provide accurate current feedback, stable bidirectional DC measurement, fast response, and reliable protection for high-power conversion systems.
For PCS converter manufacturers and BESS integrators, choosing a closed loop current sensor is not only about rated current. Buyers should compare accuracy, offset drift, response time, output signal, supply voltage, aperture size, isolation voltage, EMC performance, and installation structure before ordering samples or starting mass production.
Quick Answer
To choose a closed loop current sensor for a PCS converter, buyers should confirm rated current, peak current, bidirectional DC measurement, output signal, zero-current output, supply voltage, aperture size, busbar or cable dimensions, isolation voltage, accuracy, offset drift, response time, bandwidth, EMC environment, and operating temperature. A suitable sensor should provide stable current feedback for PCS control, BMS coordination, energy storage operation, and overcurrent protection.
1. Why PCS Converters Need Closed Loop Current Sensors
A PCS converter controls power flow between the battery system and the grid or load side. During operation, current may flow in both directions. During charging, energy flows into the battery. During discharging, energy flows from the battery to the grid, load, or inverter side. This makes bidirectional DC current measurement very important.
Closed loop current sensors are often selected for PCS converters because they usually provide better accuracy, lower offset drift, faster response, and better linearity than many open loop current sensors. This makes them suitable for current feedback, charge and discharge control, protection logic, and high-reliability energy storage systems.
In a PCS cabinet, the current sensor may be installed on the battery-side DC bus, PCS input/output busbar, DC link circuit, or cabinet-level current monitoring position. The sensor signal may be sent to the PCS controller, BMS, EMS, ADC input, PLC, or monitoring system. If the signal is inaccurate or delayed, the converter may show unstable control, wrong current data, or false protection.
Typical PCS Converter Applications
Battery-side charge and discharge current feedback.
PCS converter DC bus current monitoring.
Bidirectional DC current measurement for BESS operation.
Overcurrent protection and fault shutdown support.
Current feedback for power regulation and energy management.
Current data communication to BMS, EMS, or monitoring platforms.
2. Compare Accuracy Based On The Real PCS Function
Accuracy is one of the main reasons buyers choose closed loop current sensors. However, the required accuracy depends on how the signal is used. If the sensor is only used for general monitoring, standard accuracy may be enough. If it is used for PCS feedback control, power calculation, charge and discharge control, or high-value BESS operation, higher accuracy may be required.
Buyers should compare full-scale accuracy, linearity, zero-current error, and temperature-related measurement changes. A sensor that performs well at room temperature may still need to be checked under real cabinet temperature, high-current operation, and switching noise conditions.
For PCS converters, accuracy should be evaluated together with current range. If the sensor range is much larger than the actual working current, the system may lose useful resolution. If the range is too small, the sensor may saturate during peak current.
| Accuracy Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Full-Scale Accuracy | Affects current feedback and monitoring reliability | General monitoring, control feedback, or high-accuracy measurement |
| Linearity | Affects measurement consistency across the full range | Linearity requirement and operating current range |
| Zero-Current Error | Important for bidirectional DC measurement | Zero-current output and acceptable zero error |
| Resolution | Oversized range may reduce useful measurement detail | Normal operating current and controller input resolution |
| Calibration Need | Affects production testing and field consistency | Whether system calibration is available during assembly |
3. Check Offset Drift And Temperature Stability
Offset drift is a critical parameter for PCS converters. In bidirectional DC measurement, zero-current output stability directly affects charge and discharge current calculation. If the sensor zero point drifts with temperature or time, the PCS controller may calculate incorrect current even when the actual current is close to zero.
PCS cabinets may operate in hot environments because of power modules, DC busbars, contactors, DC-link capacitors, fans, and dense cabinet structures. Temperature changes may affect sensor output. Therefore, buyers should review temperature drift, zero drift, and long-term stability before choosing a closed loop current sensor.
For energy storage systems, small drift may accumulate into noticeable data error over long operation periods. A low-drift closed loop current sensor can help improve current data reliability, especially when the current signal is used for BMS coordination, PCS feedback, or energy calculation.
| Drift Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Offset Drift | Affects zero-current stability in bidirectional DC systems | Zero output stability and drift tolerance |
| Temperature Drift | PCS cabinets may operate under changing temperatures | Operating temperature range and cooling condition |
| Long-Term Stability | Important for energy storage systems operating for years | Expected service life and maintenance cycle |
| Zero-Current Output | Determines charge and discharge direction calculation | Midpoint, bipolar, or customized zero-current output |
| Cabinet Environment | Heat, airflow, and nearby components affect stability | Cabinet temperature, cooling design, and installation position |
4. Compare Response Time And Bandwidth For PCS Protection
Response time is important when the current sensor signal is used for PCS control or protection. PCS converters may face fast current changes during charge and discharge transitions, grid-side events, load changes, DC bus disturbances, or fault conditions. A slow sensor may delay protection response or feedback control.
Closed loop current sensors usually provide faster response than many open loop sensors, making them suitable for systems that need quick feedback and more stable dynamic measurement. However, buyers should still confirm whether the response time and bandwidth match the PCS controller requirements.
If the sensor is used for general monitoring, ultra-fast response may not be necessary. If the signal is used for overcurrent protection, fast shutdown, or converter control, response time and bandwidth should be compared carefully.
| Dynamic Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Response Time | Affects protection and control response speed | Monitoring, feedback, or fast shutdown requirement |
| Bandwidth | Affects ability to track fast current changes | Converter switching behavior and controller requirement |
| Overcurrent Detection | Important for PCS fault protection | Protection threshold and shutdown timing |
| Signal Delay | Delay may affect feedback loop stability | Controller sampling cycle and allowed delay |
| Dynamic Current Profile | PCS current may change quickly under different modes | Charge, discharge, load change, and fault current behavior |

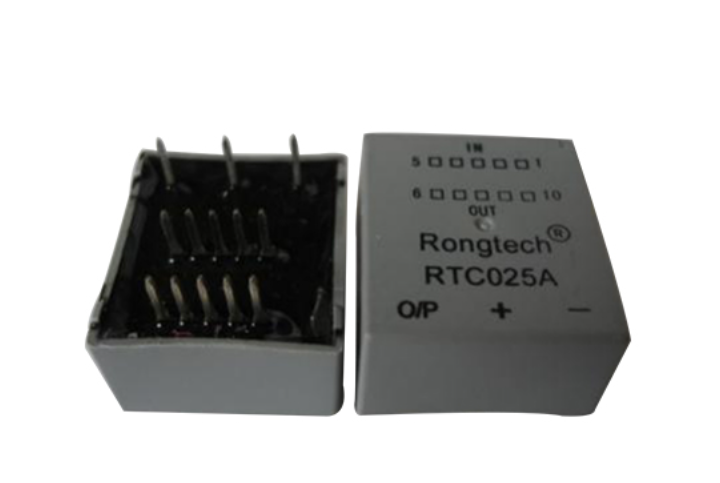

5. Match Output Signal, Aperture Size And Isolation Voltage
A closed loop current sensor for PCS converters must also match the controller input and cabinet layout. Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. The output signal should match the PCS controller, ADC input, PLC, BMS, EMS, or monitoring system.
The sensor aperture should fit the actual copper busbar, laminated busbar, thick DC cable, or parallel conductor layout. For busbar installation, buyers should provide busbar width, thickness, insulation layer, and installation direction. For cable installation, buyers should provide full cable outer diameter.
Isolation voltage is also important because PCS converters usually operate in high-voltage DC environments. The sensor must safely isolate the high-current conductor side from the low-voltage control side.
| Matching Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Output Signal | Must match PCS controller or monitoring input | 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or custom output |
| Supply Voltage | Wrong supply may cause unstable output or sensor failure | +5V, +12V, +15V, +24V, ±15V, or project-specific supply |
| Aperture Size | Determines whether busbar or cable can pass through | Busbar size, cable diameter, or custom aperture requirement |
| Isolation Voltage | Protects low-voltage controller and signal circuit | 2.5kV, 4kV, 6kV, or project-specific requirement |
| Mechanical Installation | Prevents cabinet layout conflict | Mounting holes, body size, connector direction, and cabinet space |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “closed loop current sensor for PCS.” The supplier needs application, rated current, peak current, current direction, accuracy target, drift requirement, response time, output signal, supply voltage, isolation voltage, aperture size, conductor dimensions, installation space, operating temperature, sample quantity, and annual demand.
If the project is a replacement request, buyers should also provide the original sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the supplier evaluate whether a direct replacement, similar model, or customized closed loop current sensor is needed.
Example Quote Request:
Application: PCS converter battery-side DC current feedback
Current range: 1000A rated, 1500A peak for short-time operation
Measured current: Bidirectional DC current
Sensor type: Closed loop current sensor
Output signal: ±5V, 0-5V midpoint output, or custom output
Supply voltage: ±15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Copper busbar 60 × 8 mm with insulation
Function: PCS feedback control, protection, and BESS current monitoring
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm PCS converter application and measurement position.
Confirm rated current, peak current, and overload duration.
Confirm bidirectional DC measurement requirement.
Define accuracy target, zero-current output, and offset drift requirement.
Compare response time and bandwidth based on PCS control logic.
Match output signal with PCS controller, BMS, EMS, ADC, or PLC input.
Check supply voltage and pin definition.
Confirm aperture size, busbar size, or cable outer diameter.
Check isolation voltage, working voltage, creepage, and clearance.
Test samples under real PCS cabinet load and temperature conditions.
Conclusion
A closed loop current sensor for PCS converters should be selected according to accuracy, offset drift, response time, and real cabinet operating conditions. Buyers should not choose only by rated current. Output signal, aperture size, isolation voltage, supply voltage, EMC performance, and controller compatibility should also be confirmed before sample approval.
For PCS converter manufacturers, BESS integrators, and OEM buyers, a complete parameter list helps the supplier recommend the correct closed loop current sensor faster, reduce testing risk, and support stable mass production.
FAQ
1. Why choose a closed loop current sensor for PCS converters?
Closed loop current sensors usually provide better accuracy, lower drift, faster response, and better linearity, making them suitable for PCS feedback control, bidirectional DC measurement, and protection applications.
2. What current range is common for PCS closed loop current sensors?
Common ranges may include 300A, 500A, 1000A, 1500A, 2000A, or customized ratings depending on PCS power level, battery voltage, busbar design, and peak current requirement.
3. Why is offset drift important?
Offset drift affects zero-current output stability. In bidirectional DC measurement, unstable zero output may cause wrong charge and discharge current calculation.
4. What output signal should buyers choose?
The output should match the PCS controller or monitoring system. Common options include ±5V, 0-5V, 0-10V, 4-20mA, CAN, RS485, or customized output.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, accuracy target, response time, sample quantity, annual demand, and customization needs.
