PCS cabinets are core power conversion units in battery energy storage systems. They connect battery cabinets, DC bus systems, inverters, grid-side equipment, and energy management platforms. To control charge and discharge current safely, a PCS cabinet usually needs reliable current sensors for bidirectional DC measurement, current feedback, protection, and system diagnosis.
For PCS cabinet manufacturers, BESS integrators, and OEM buyers, choosing a current sensor is not only about rated current. Buyers should confirm bidirectional DC measurement, output signal, zero-current output, isolation voltage, aperture size, busbar or cable dimensions, accuracy, drift, response time, EMC performance, and controller compatibility before ordering samples or starting mass production.
Quick Answer
To choose a current sensor for a PCS cabinet, buyers should confirm whether the sensor is used for battery-side DC current measurement, DC bus current monitoring, PCS feedback control, overcurrent protection, or charge and discharge current calculation. Key parameters include bidirectional DC measurement, rated current, peak current, output signal, zero-current output, supply voltage, isolation voltage, aperture size, busbar or cable dimensions, accuracy, offset drift, response time, operating temperature, and EMC environment.
1. Why PCS Cabinets Need Bidirectional DC Current Measurement
A PCS cabinet works between the battery side and the grid or load side. During charging, current flows into the battery system. During discharging, current flows from the battery system to the inverter or grid-side equipment. Because current direction changes during operation, the PCS needs a current sensor that can measure bidirectional DC current accurately.
Current measurement data may be used by the PCS controller, BMS, EMS, inverter control board, ADC input, or monitoring platform. It supports charge and discharge control, current limiting, power regulation, fault protection, SOC calculation support, and energy data analysis.
If the current sensor output is unstable, delayed, or mismatched with the controller, the PCS cabinet may show wrong current values, inaccurate charge and discharge data, false alarms, unstable control, or delayed protection. For high-power PCS cabinets, current sensor selection should be confirmed before cabinet layout and sample testing.
Typical PCS Cabinet Applications
Battery-side charge and discharge current measurement.
DC bus current monitoring inside PCS cabinets.
Bidirectional DC current feedback for PCS control.
Overcurrent protection and fault shutdown support.
Energy storage cabinet current monitoring and system diagnosis.
Current data communication to BMS, EMS or monitoring systems.
2. Confirm Current Range, Peak Current And Current Direction
PCS cabinets may use 300A, 500A, 1000A, 1500A, 2000A or customized current sensors depending on the PCS power level, battery voltage, DC bus design, and cabinet structure. Buyers should not select a current sensor only by nominal system current. Rated current, maximum continuous current, peak current, overload duration, and current direction should all be confirmed.
For bidirectional DC current measurement, the sensor must detect both positive and negative current direction. The zero-current output point is especially important. Some sensors use midpoint voltage as zero current. Some use bipolar output. Some use customized output logic for OEM controller systems.
If the current range is too small, the sensor may saturate during peak charge or discharge current. If the range is too large, normal measurement resolution may be reduced. The right selection should balance current margin, accuracy, and controller reading requirements.
| Current Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Rated Current | Defines normal PCS current measurement range | 300A, 500A, 1000A, 1500A, 2000A or custom rating |
| Peak Current | Prevents sensor saturation during short-time overload | Peak current value and duration |
| Current Direction | PCS systems require charge and discharge current detection | Unidirectional or bidirectional DC measurement |
| Zero-Current Output | Affects charge and discharge direction calculation | Midpoint output, bipolar output or customized zero point |
| Measurement Purpose | Different functions need different performance levels | Monitoring, feedback control, protection or data calculation |
3. Match Output Signal With PCS Controller, BMS Or EMS
Output signal matching is one of the most important checks for PCS cabinet current sensors. The sensor output must match the PCS controller, BMS, EMS, ADC input, PLC, inverter control board, or data acquisition system. If the output signal does not match, the system may display wrong current or require additional conversion circuits.
Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. For compact PCS control boards, 0-5V or ±5V output may be common. For industrial PLC monitoring, 0-10V or 4-20mA may be required. For smart energy storage systems, CAN or RS485 communication may also be used.
For bidirectional DC current measurement, buyers should confirm whether the controller supports midpoint output or bipolar output. If the sensor output logic is different from the controller design, the PCS may calculate charge and discharge direction incorrectly.
| Output Signal | Typical Use In PCS Cabinet | Buyer Should Confirm |
|---|---|---|
| 0-5V | PCS controller, ADC input, compact control board | Input range, output scaling, zero point and signal ground |
| 0-10V | Industrial controller or PLC analog input | PLC input range and maximum voltage tolerance |
| ±5V | Bidirectional DC current feedback | Bipolar input and current direction logic |
| 4-20mA | Long-distance industrial monitoring | Loop power, load resistance, wiring distance and scaling |
| CAN / RS485 | Smart energy management and digital monitoring | Protocol, baud rate, address and data format |
| Custom Output | OEM PCS cabinet or replacement project | Output range, scaling, connector and pin definition |

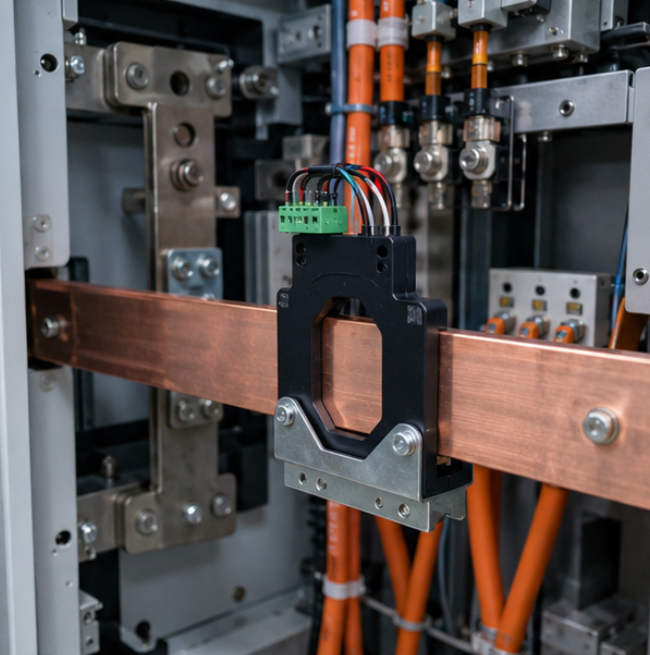

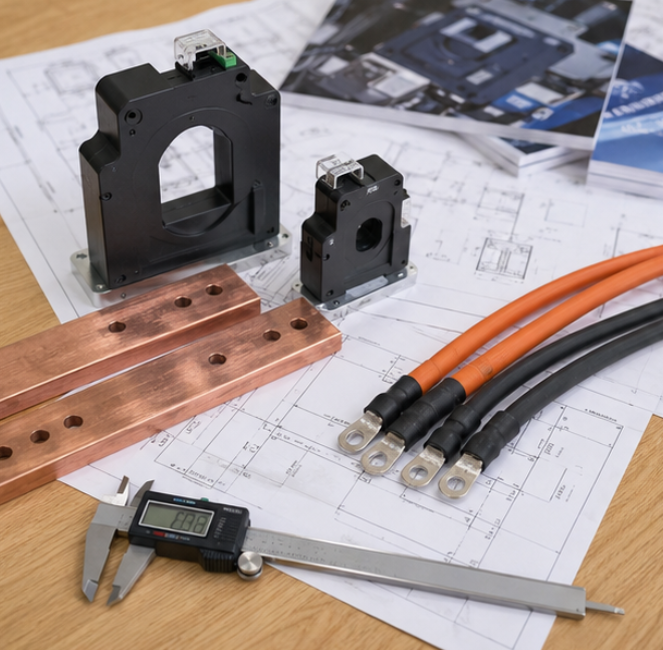

4. Check Aperture Size For Busbar Or Cable Installation
A PCS cabinet current sensor must fit the real conductor structure. PCS cabinets may use flat copper busbars, laminated busbars, thick DC cables, or multiple parallel conductors. If the sensor aperture is too small, the conductor cannot pass through. If the sensor body is too large, it may interfere with insulation supports, terminal blocks, contactors, or cabinet walls.
For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer, installation direction, and available cabinet space. For cable installation, buyers should provide the full cable outer diameter. For retrofit projects where cables cannot be disconnected, a split core current sensor may be considered.
For OEM PCS cabinet projects, cabinet layout drawings and installation photos can help the current sensor manufacturer recommend a suitable standard model or customized aperture structure.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Busbar Width | Determines required aperture width | Example: 40mm, 50mm, 60mm, 80mm or custom width |
| Busbar Thickness | Determines aperture height and clearance | Example: 6mm, 8mm, 10mm or custom thickness |
| Cable Outer Diameter | Determines whether the cable can pass through | Full cable diameter including insulation layer |
| Aperture Shape | Flat busbar and round cable need different structures | Round aperture, rectangular aperture, split core or custom window |
| Cabinet Space | Prevents mechanical interference | Height, width, depth, nearby components and wiring route |
5. Confirm Isolation Voltage And High Voltage Safety
PCS cabinets usually operate in high-voltage DC environments. The current sensor must safely isolate the high-current conductor side from the low-voltage controller and signal circuit. Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance, and insulation requirements.
Isolation voltage should not be confused with normal working voltage. A sensor may pass a short-time insulation test, but buyers still need to check whether the working voltage, cabinet environment, humidity, dust, altitude, and installation distance meet the real PCS cabinet requirements.
For BESS and PCS systems, insufficient isolation may create safety risk, damage the controller, or fail project testing. Therefore, isolation performance should be confirmed before choosing a cheaper alternative model.
| Isolation Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Working Voltage | Defines long-term insulation requirement | Battery voltage, DC bus voltage and maximum system voltage |
| Isolation Voltage | Protects PCS controller and signal circuit | 2.5kV, 4kV, 6kV or project-specific requirement |
| Creepage And Clearance | Important for high-voltage cabinet safety | Voltage level, pollution degree, altitude and cabinet layout |
| Installation Environment | Dust, humidity and heat affect insulation safety | Cabinet protection level and operating environment |
6. Review Accuracy, Offset Drift, Response Time And EMC Performance
PCS cabinet current measurement may be used for monitoring, feedback control, protection, and energy calculation. Different functions require different performance levels. If the signal is used only for general display, standard accuracy may be enough. If the signal is used for PCS feedback control or BESS current calculation, accuracy and drift should be checked more carefully.
Offset drift is important for bidirectional DC measurement. If the zero-current output drifts with temperature or time, the PCS or BMS may calculate incorrect charge and discharge current. In long-term energy storage systems, small measurement errors may accumulate and affect data reliability.
PCS cabinets also contain switching devices, contactors, relays, fans, high-voltage busbars, communication wiring, and control boards. The current sensor output should remain stable under real EMC conditions. Buyers should test samples under actual cabinet wiring and load conditions before mass production.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Accuracy | Affects current feedback and monitoring quality | General monitoring or high-accuracy control requirement |
| Offset Drift | Affects zero-current stability in bidirectional DC systems | Zero output stability and temperature drift requirement |
| Response Time | Important for protection and PCS control response | Monitoring, feedback or fast shutdown requirement |
| Temperature Range | PCS cabinets may become hot during operation | Operating temperature and cooling condition |
| EMC Performance | Switching power devices may create signal noise | Grounding, shielding, wiring layout and cabinet environment |
7. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “current sensor for PCS cabinet.” The supplier needs application, current type, rated current, peak current, output signal, zero-current output requirement, supply voltage, isolation voltage, aperture size, busbar or cable dimensions, installation space, accuracy target, response time, operating environment, sample quantity and annual demand.
If the project is a replacement request, buyers should also provide the original sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the manufacturer evaluate whether a direct replacement, similar model, or customized PCS cabinet current sensor is needed.
Example Quote Request:
Application: PCS cabinet battery-side DC current measurement
Current range: 1000A rated, 1500A peak for short-time operation
Measured current: Bidirectional DC current
Output signal: 0-5V with midpoint zero-current output or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Copper busbar 60 × 8 mm with insulation
Function: PCS current feedback, protection and energy storage monitoring
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm PCS cabinet application and measurement position.
Confirm rated current, peak current and overload duration.
Confirm bidirectional DC measurement requirement.
Match output signal with PCS controller, BMS, EMS, ADC or PLC input.
Confirm zero-current output and charge/discharge direction logic.
Check supply voltage and pin definition.
Confirm aperture size, busbar size or cable outer diameter.
Check isolation voltage, working voltage, creepage and clearance.
Review accuracy, offset drift, response time, EMC and operating temperature.
Provide sample quantity, annual demand and customization details.
Conclusion
A current sensor for PCS cabinets should be selected according to real bidirectional DC measurement requirements, not only rated current. Buyers should confirm current range, output signal, zero-current output, aperture size, isolation voltage, accuracy, offset drift, response time, EMC performance and controller compatibility before sample approval.
For PCS cabinet manufacturers, BESS integrators and OEM buyers, a complete parameter list helps the supplier recommend the correct current sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a current sensor used for in a PCS cabinet?
It is used for battery-side current measurement, DC bus current monitoring, bidirectional charge and discharge current feedback, PCS protection, system diagnosis and energy storage monitoring.
2. Does a PCS cabinet current sensor need bidirectional DC measurement?
In most BESS and PCS applications, yes. The sensor should detect both charging current and discharging current so that the PCS, BMS or EMS can understand current direction correctly.
3. What output signal should a PCS cabinet current sensor provide?
The output should match the PCS controller, BMS, EMS or monitoring system. Common options include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485 or customized output.
4. Why is isolation voltage important for PCS current sensors?
PCS cabinets operate in high-voltage DC environments. The current sensor must isolate the high-current conductor side from the low-voltage controller and signal circuit.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, zero-current output requirement, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, sample quantity, annual demand and customization needs.
