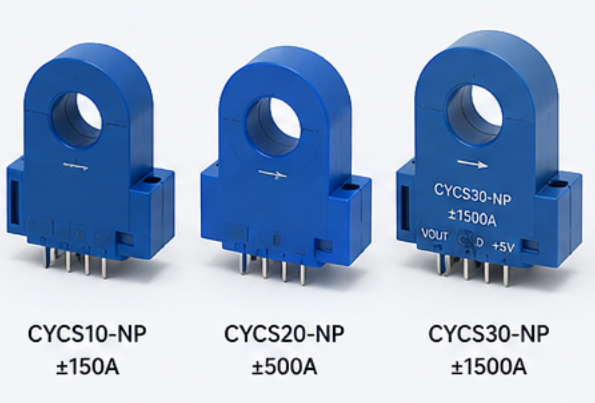

DC fast chargers require accurate and stable output current monitoring to support charging control, overcurrent protection, charging cable safety, power module diagnosis, and system communication. A current sensor installed on the DC output side helps the charger controller understand real-time charging current and respond quickly when abnormal current occurs.
For DC fast charger manufacturers, choosing a current sensor is not only about selecting 300A, 500A, 1000A or another current range. Buyers should confirm output signal, peak current, aperture size, busbar or cable structure, isolation voltage, response time, accuracy, operating temperature, EMC environment, and controller compatibility before ordering samples or starting mass production.
Quick Answer
To choose a current sensor for DC fast charger output current monitoring, buyers should confirm the charger output current range, peak current, measurement position, output signal, supply voltage, aperture size, busbar or cable dimensions, isolation voltage, response time, accuracy, zero-current output, and operating environment. The sensor should match the charger controller input and fit the real mechanical layout of the DC output circuit.
1. Why Output Current Monitoring Matters In DC Fast Chargers
In a DC fast charger, output current monitoring is one of the most important functions. The charger must regulate charging current according to the vehicle request, battery condition, charging protocol, power module capability, cable rating, and safety limits. If the current feedback signal is inaccurate or unstable, the charger may display incorrect current, reduce charging efficiency, trigger false alarms, or fail system testing.
The current sensor may be installed on the DC output busbar, charging cable path, module output side, or DC bus circuit depending on the charger design. The measured current signal is usually sent to the charger controller, ADC input, PLC, protection board, or monitoring system.
DC fast chargers often work under high voltage, high current, strong switching noise, compact cabinet layout, and changing load conditions. Therefore, the current sensor should provide stable measurement, safe isolation, suitable response time, and reliable output signal under the real charger operating environment.
Typical Output Current Monitoring Functions
Real-time DC output charging current measurement.
Charging current feedback for charger controller regulation.
Overcurrent protection and fault shutdown support.
Charging cable current monitoring and safety diagnosis.
Power module output current balancing and system diagnosis.
Current data transmission to monitoring platform or charger display.
2. Confirm Current Range And Peak Current First
Current range is the first parameter buyers usually provide, but it should not be the only selection factor. A DC fast charger may use 300A, 500A, 600A, 800A, 1000A or customized current sensors depending on charger power level, output cable rating, connector type, and system design.
Buyers should confirm both rated current and peak current. A charger rated at 500A output may experience short-time peak current during transient conditions, control response, abnormal load, or protection events. If the current sensor range is too small, it may saturate during peak current. If the range is too large, normal current resolution may become poor.
The supplier should also know whether the sensor is used for simple current display, precise current feedback, power module protection, or fast shutdown. Different functions may require different accuracy, response time, and sensor technology.
| Current Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Rated Current | Defines normal output current monitoring range | 300A, 500A, 600A, 800A, 1000A or custom rating |
| Peak Current | Prevents sensor saturation during transient conditions | Peak current value and duration |
| Current Type | DC fast charger output current is usually DC current | DC, pulsed DC, or bidirectional current if required |
| Measurement Position | Different positions may need different sensor structure | DC output busbar, output cable, module output or DC bus |
| Measurement Purpose | Different purposes require different performance | Monitoring, feedback, protection or fault diagnosis |
3. Match Output Signal With The Charger Controller
Output signal matching is one of the most common problems in DC fast charger current sensor selection. The sensor output must match the charger controller, ADC input, PLC, protection board, or monitoring system. If the output signal does not match, the charger may read wrong current or require additional signal conversion.
Common output signals include 0-5V, 0-10V, 4-20mA, ±5V, CAN, RS485, or customized output. For charger control boards and ADC input, 0-5V output is often used. For industrial PLC or monitoring systems, 0-10V or 4-20mA may be required. For smart charger systems, digital communication may be considered.
If bidirectional current measurement is required, buyers should also confirm zero-current output and current direction logic. For example, a 0-5V output sensor may use 2.5V as zero-current output. If the charger controller is not designed for midpoint output, the current reading may be wrong.
| Output Signal | Typical Use In DC Fast Charger | Buyer Should Confirm |
|---|---|---|
| 0-5V | ADC input, MCU board, charger controller | Input range, output scaling, zero point and signal ground |
| 0-10V | PLC or industrial controller input | Controller input compatibility and voltage tolerance |
| 4-20mA | Longer-distance industrial signal transmission | Loop power, load resistance, wiring distance and scaling |
| ±5V | Bidirectional current measurement | Bipolar input and current direction logic |
| CAN / RS485 | Digital monitoring or smart charger system | Protocol, baud rate, address and data format |
| Custom Output | OEM charger module or replacement project | Output range, scaling, connector and pin definition |
4. Check Aperture Size For Output Busbar Or Charging Cable
A current sensor for DC fast charger output current monitoring must fit the actual conductor. The charger may use copper busbars, thick DC output cables, laminated busbars, or parallel conductors. If the aperture is too small, the conductor cannot pass through the sensor. If the sensor body is too large, it may interfere with other components inside the cabinet.
For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer, installation direction, and available cabinet space. For cable installation, buyers should provide full cable outer diameter, not only conductor cross-section. For retrofit projects where the cable cannot be disconnected, a split core current sensor may be considered.
For OEM DC fast charger projects, mechanical drawings and cabinet photos can help the supplier recommend a suitable standard model or customize the aperture size, mounting method, connector direction, or cable length.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Busbar Size | Determines required aperture window | Busbar width, thickness and insulation layer |
| Cable Diameter | Determines whether the cable can pass through | Full DC output cable outer diameter |
| Aperture Shape | Round cable and flat busbar need different structures | Round aperture, rectangular aperture or custom window |
| Mounting Method | Affects assembly and long-term stability | Panel mount, busbar mount, PCB mount, DIN rail or split core |
| Cabinet Space | Prevents mechanical interference | Available height, width, depth and nearby component layout |

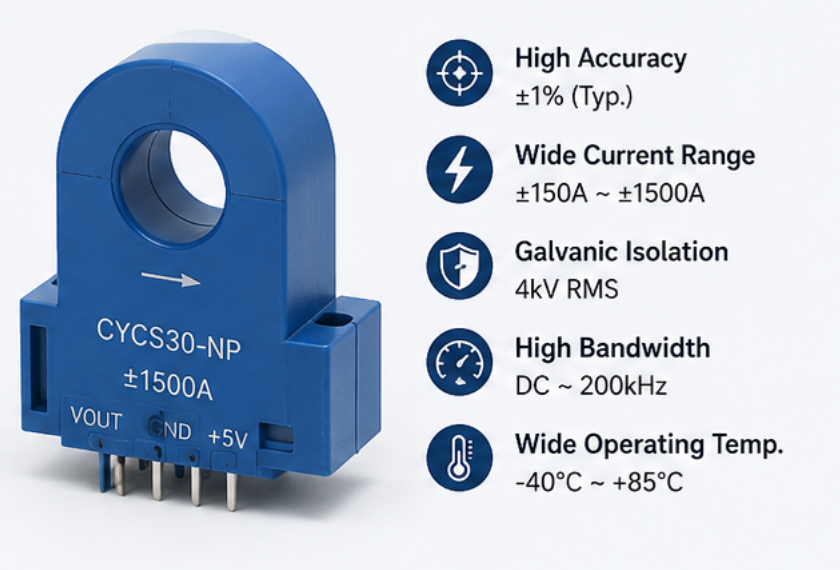

5. Confirm Isolation, Response Time And EMC Performance
DC fast chargers operate in high-voltage and high-current environments. The current sensor must provide proper isolation between the high-current conductor side and the low-voltage signal side. Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance, and insulation requirement.
Response time is also important when the current signal is used for protection or fast control. If the sensor response is too slow, the charger may not detect abnormal current quickly enough. If the current signal is used only for display or monitoring, standard response may be acceptable.
EMC performance should not be ignored. DC fast charger cabinets contain switching power modules, contactors, relays, fans, communication wiring, high-voltage cables, and signal lines. The current sensor output should remain stable under real cabinet noise, temperature, and wiring conditions.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Isolation Voltage | Protects charger controller and low-voltage signal circuit | 2.5kV, 4kV, 6kV or project-specific requirement |
| Working Voltage | Defines long-term insulation requirement | DC output voltage, DC bus voltage and maximum system voltage |
| Response Time | Affects protection and control response | Monitoring, feedback or fast shutdown requirement |
| Accuracy | Affects current display and control quality | General monitoring or high-accuracy feedback requirement |
| Temperature Drift | Charger cabinets may become hot during operation | Operating temperature range and drift tolerance |
| EMC Performance | Switching modules may create signal noise | Wiring route, shielding, grounding and cabinet layout |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “current sensor for DC fast charger.” The supplier needs charger power level, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, installation space, accuracy target, response time, operating environment, sample quantity and annual demand.
If the project is a replacement request, buyers should also provide the original sensor model, datasheet, wiring definition, output scaling, product photos and installation dimensions. This helps the manufacturer evaluate whether a direct replacement, similar model or customized current sensor is needed.
Example Quote Request:
Application: DC fast charger output current monitoring
Current range: 500A rated, 800A peak for short-time operation
Measured current: DC output current
Output signal: 0-5V or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Copper busbar 40 × 6 mm or DC output cable
Function: Charging current feedback and overcurrent monitoring
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm DC fast charger application and measurement position.
Confirm rated output current, peak current and overload duration.
Confirm DC output current or bidirectional current measurement requirement.
Match output signal with charger controller, ADC, PLC or monitoring system.
Confirm supply voltage and pin definition.
Check aperture size, busbar size or DC cable outer diameter.
Confirm isolation voltage, working voltage, creepage and clearance.
Review response time, accuracy, drift, EMC and operating temperature.
Test samples under real charger load and cabinet wiring conditions.
Provide sample quantity, annual demand and customization details.
Conclusion
A current sensor for DC fast charger output current monitoring should be selected according to real electrical and mechanical requirements. Buyers should confirm rated current, peak current, output signal, aperture size, busbar or cable fit, isolation voltage, response time, accuracy, drift and controller compatibility before sample approval.
For DC fast charger manufacturers and OEM buyers, a complete parameter list helps the supplier recommend the correct current sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a current sensor used for in DC fast chargers?
It is used for DC output current monitoring, charging current feedback, overcurrent protection, power module diagnosis, charging cable current detection and system monitoring.
2. What current range is common for DC fast charger output monitoring?
Common current ranges may include 300A, 500A, 600A, 800A, 1000A or customized ratings depending on charger power, output connector, charging cable and system design.
3. What output signal should a DC fast charger current sensor provide?
The output should match the charger controller. Common options include 0-5V, 0-10V, 4-20mA, ±5V, CAN, RS485 or customized output.
4. Why is isolation voltage important?
DC fast chargers operate in high-voltage environments. The current sensor should provide proper isolation between the high-current conductor side and the low-voltage signal side.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, sample quantity, annual demand and customization needs.
