A 300A current sensor is commonly used in EV charging modules, DC charging units, charging piles, power conversion modules, and medium-power DC output monitoring systems. It helps measure charging current, provide current feedback, support overcurrent protection, and improve charging module reliability during operation.
For EV charging module manufacturers and OEM buyers, choosing a 300A current sensor is not only about current rating. Buyers should confirm output signal, supply voltage, aperture size, cable or busbar structure, isolation voltage, response time, accuracy, operating temperature, installation direction, and controller compatibility before ordering samples or starting mass production.
Quick Answer
To choose a 300A current sensor for an EV charging module, buyers should confirm whether the sensor is used for DC output current monitoring, charging current feedback, DC bus current detection, power module protection, or system diagnosis. Key parameters include 300A rated current, peak current, output signal, supply voltage, aperture size, conductor dimensions, isolation voltage, response time, accuracy, zero-current output, mounting method, and operating environment. A suitable model should match both the controller input and the real installation structure inside the charging module.
1. Why 300A Current Sensors Are Used In EV Charging Modules
EV charging modules need stable current measurement to control charging output and protect the internal power conversion circuit. A 300A current sensor is often used in medium-power charging modules, DC output circuits, power module output stages, charging pile submodules, and cabinet-level current monitoring systems.
Compared with higher-current sensors, a 300A current sensor may be more suitable for compact modules, smaller busbar structures, lower power charging cabinets, and applications where the controller needs better resolution at medium current levels. It can help the charging system measure current more accurately within the real operating range.
In EV charging applications, the current sensor signal may be used for output current display, charging current regulation, overcurrent warning, power module diagnosis, or protection shutdown. The selection should be based on how the signal is used, not only the rated current printed on the product label.

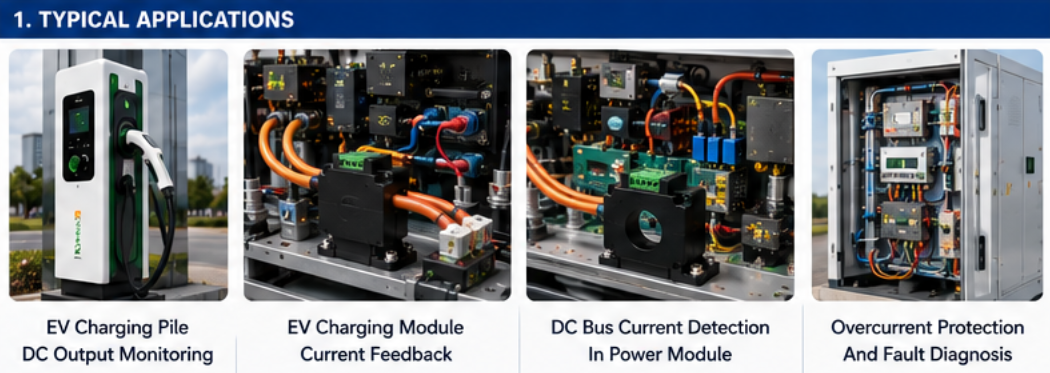

Typical EV Charging Module Applications
DC output current monitoring in EV charging modules.
Charging current feedback for module control boards.
DC bus current detection inside power conversion modules.
Overcurrent protection and abnormal current diagnosis.
Medium-power charging pile current monitoring.
Power module output balancing and system maintenance data collection.
2. Confirm 300A Rated Current And Peak Current Margin
A 300A current sensor should be selected according to the real operating current of the EV charging module. Buyers should confirm normal output current, maximum continuous current, peak current, overload duration, and whether the current waveform is stable DC, pulsed DC, or bidirectional current.
If the current sensor range is too small, the sensor may saturate during short-time peak current or abnormal load conditions. If the range is too large, the controller may lose useful resolution during normal operation. For EV charging modules, the current sensor should provide enough safety margin while maintaining stable measurement in the common charging current range.
Buyers should also confirm whether the 300A sensor is used for monitoring only or for control feedback. A sensor used for real-time charging control may need better response time, lower drift, and more stable output than a sensor used only for display.
| Current Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Rated Current | Defines normal current measurement range | 300A rated current or project-specific range |
| Peak Current | Prevents saturation during short-time overload | Peak current value and duration |
| Current Type | Different current types require different sensor technology | DC, pulsed DC, AC, or bidirectional current |
| Measurement Position | Different positions may need different structure | DC output cable, busbar, module output, or DC bus |
| Measurement Purpose | Different functions require different performance levels | Monitoring, feedback, protection, or diagnosis |
3. Match Output Signal With The Charging Module Controller
Output signal matching is one of the most important steps when selecting a 300A current sensor for EV charging modules. The sensor output must match the charging module controller, ADC input, MCU board, PLC, monitoring system, or protection circuit. If the signal type is wrong, the controller may read incorrect current data or require extra signal conversion.
Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. For compact charging module control boards, 0-5V output is common. For industrial control cabinets, 0-10V or 4-20mA may be required. For smart charging systems, digital communication output may also be considered.
For bidirectional DC current measurement, buyers should confirm zero-current output. Some sensors use 2.5V as zero current in a 0-5V system. Some use bipolar output. The charging module controller must recognize the same zero point and current direction logic.
| Output Signal | Typical Use In EV Charging Module | Buyer Should Confirm |
|---|---|---|
| 0-5V | ADC input, MCU board, charging module controller | Input range, scaling, zero point, signal ground |
| 0-10V | Industrial controller or PLC input | Controller input range and voltage tolerance |
| ±5V | Bidirectional current measurement | Bipolar input and current direction logic |
| 4-20mA | Industrial monitoring or longer-distance signal transmission | Loop power, load resistance, wiring distance, scaling |
| CAN / RS485 | Digital monitoring or smart charging system | Protocol, baud rate, address, data format |
| Custom Output | OEM charging module or replacement project | Output range, connector, pin definition, scaling |

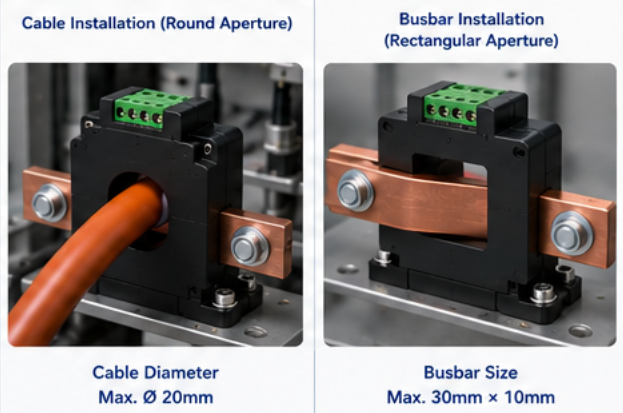

4. Check Aperture Size And Installation Method
A 300A current sensor must fit the actual conductor inside the EV charging module. Some charging modules use copper busbars. Some use thick DC output cables. Some use compact wiring structures with limited space. If the aperture size is too small, the conductor cannot pass through. If the sensor body is too large, it may interfere with the cabinet layout.
For cable installation, buyers should provide the full cable outer diameter, not only conductor cross-section. For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer, installation direction, and available cabinet space. For retrofit projects, a split core current sensor may be considered if the cable cannot be disconnected.
For OEM EV charging module projects, mechanical drawings and installation photos can help the current sensor supplier recommend a suitable standard model or customized aperture design.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Cable Outer Diameter | Determines whether cable can pass through aperture | Full cable diameter including insulation |
| Busbar Width | Determines aperture width or window size | Copper busbar width, including coating if any |
| Busbar Thickness | Determines aperture height and installation clearance | Busbar thickness and insulation layer thickness |
| Aperture Shape | Round cable and flat busbar need different structures | Round aperture, rectangular aperture, split core, or custom window |
| Mounting Method | Affects module assembly and long-term stability | Panel mount, busbar mount, PCB mount, DIN rail, or split core |
| Available Space | Prevents interference with nearby parts | Height, width, depth, wiring route, nearby components |
5. Confirm Isolation Voltage, Response Time And EMC Performance
EV charging modules operate in high-voltage and high-current environments. The current sensor should provide proper isolation between the high-current conductor side and the low-voltage controller side. Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance, and cabinet safety requirements.
Response time is important if the current sensor signal is used for fast protection or control feedback. If the sensor is only used for general current display, standard response may be acceptable. If the sensor is used for overcurrent protection or dynamic charging control, response time and bandwidth should be reviewed carefully.
EMC performance also matters because EV charging modules contain switching power devices, contactors, relays, fans, communication wiring, DC busbars, and signal lines. The current sensor output should remain stable under real cabinet noise, wiring, and temperature conditions.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Isolation Voltage | Protects controller and low-voltage signal circuit | 2.5kV, 4kV, 6kV, or project-specific requirement |
| Working Voltage | Defines long-term insulation requirement | DC bus voltage, output voltage, and maximum system voltage |
| Response Time | Affects charging control and overcurrent protection | Monitoring, feedback, or fast protection requirement |
| Accuracy | Affects current display and control quality | General monitoring or high-accuracy feedback requirement |
| Temperature Drift | Charging module cabinets may become hot | Operating temperature range and drift tolerance |
| EMC Performance | Switching power devices may create signal noise | Grounding, shielding, wiring layout, cabinet environment |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “300A current sensor.” The supplier needs application, current type, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, conductor dimensions, installation space, accuracy target, response time, operating temperature, sample quantity, and annual demand.
If the project is a replacement request, buyers should also provide the original sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the current sensor supplier evaluate whether a direct replacement, similar model, or customized sensor is needed.
Example Quote Request:
Application: EV charging module DC output current monitoring
Current range: 300A rated, 500A peak for short-time operation
Measured current: DC current
Output signal: 0-5V or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: DC output cable or copper busbar dimensions provided
Function: Charging current feedback and overcurrent monitoring
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm EV charging module application and measurement position.
Confirm 300A rated current, peak current, and overload duration.
Confirm DC, pulsed DC, AC, or bidirectional current measurement.
Match output signal with charger controller, ADC, PLC, or monitoring system.
Confirm zero-current output and current direction if bidirectional measurement is required.
Check supply voltage and pin definition.
Confirm aperture size, cable outer diameter, or busbar dimensions.
Check isolation voltage, working voltage, creepage, and clearance.
Review response time, accuracy, drift, EMC, and operating temperature.
Provide sample quantity, annual demand, and customization details.
Conclusion
A 300A current sensor for EV charging modules should be selected according to real electrical and mechanical requirements. Buyers should not choose only by rated current. Output signal, aperture size, installation direction, isolation voltage, supply voltage, response time, accuracy, drift, EMC performance, and controller compatibility should all be checked before sample approval.
For EV charging module manufacturers and OEM buyers, a complete parameter list helps the supplier recommend the correct 300A current sensor faster, reduce testing risk, and support stable mass production.
FAQ
1. What is a 300A current sensor used for in EV charging modules?
It is used for DC output current monitoring, charging current feedback, DC bus current detection, power module protection, abnormal current diagnosis, and charging system maintenance data collection.
2. What output signal should a 300A EV charging current sensor provide?
The output should match the charger controller. Common options include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output.
3. Is a 300A current sensor suitable for DC fast chargers?
It depends on the charger power and output current. A 300A current sensor is suitable for medium-current charging modules or systems where the normal operating current is within the proper measurement range.
4. Why is aperture size important?
Aperture size determines whether the current sensor can fit the DC cable or copper busbar inside the EV charging module. Buyers should provide cable outer diameter or busbar dimensions before requesting a quote.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, conductor dimensions, sample quantity, annual demand, and customization needs.
