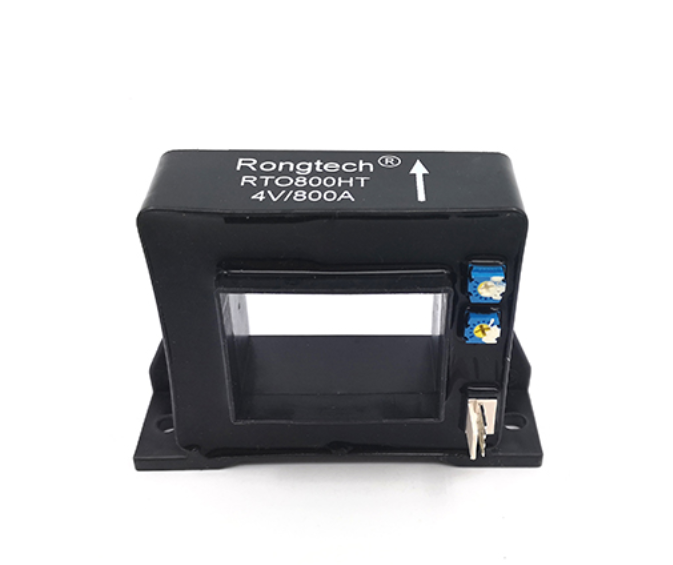

Split core current sensors are widely used in retrofit power cabinet projects where existing cables or busbars cannot be disconnected easily. They help engineers add current monitoring, energy management, load diagnosis, overcurrent detection, and equipment upgrade functions without rebuilding the entire cabinet wiring structure.
For retrofit projects in EV charging cabinets, BESS cabinets, PCS systems, industrial DC cabinets, motor control cabinets, UPS systems, and factory power distribution panels, buyers should confirm current range, cable size, busbar structure, output signal, installation space, accuracy, isolation, response time, and controller compatibility before ordering split core current sensors.
Quick Answer
To choose a split core current sensor for retrofit power cabinet projects, buyers should confirm whether the existing conductor can be disconnected, the measured current type, rated current, peak current, cable outer diameter, busbar size, output signal, supply voltage, controller input, installation space, accuracy requirement, isolation voltage, operating temperature, and EMC environment. A suitable split core current sensor should be easy to install around existing conductors while providing stable and compatible current signals for the monitoring or control system.
1. Why Split Core Current Sensors Are Useful For Retrofit Projects
In many retrofit power cabinet projects, the existing equipment is already installed and running. Disconnecting high-current cables or copper busbars may require shutdown, rewiring, insulation work, and extra labor cost. A split core current sensor can be opened and installed around the existing conductor, making it useful for upgrading old cabinets or adding monitoring functions without major wiring changes.
Split core current sensors are often used for current monitoring, energy management, load analysis, fault diagnosis, power cabinet upgrades, and retrofit automation projects. They are suitable for applications where the buyer wants to add current sensing but does not want to remove cables or redesign the cabinet.
However, retrofit installation also has risks. The sensor must fit the cable or busbar correctly. The output signal must match the controller. The split core structure must close properly after installation. Accuracy, drift, and signal stability should be checked under real cabinet conditions.
Typical Retrofit Applications
Adding current monitoring to existing power distribution cabinets.
Upgrading EV charging cabinets with output current sensing.
Adding battery cabinet or PCS current monitoring without rewiring.
Retrofitting motor control cabinets and industrial control panels.
Monitoring load current in UPS and industrial DC power systems.
Installing sensors on existing cables where shutdown time must be reduced.

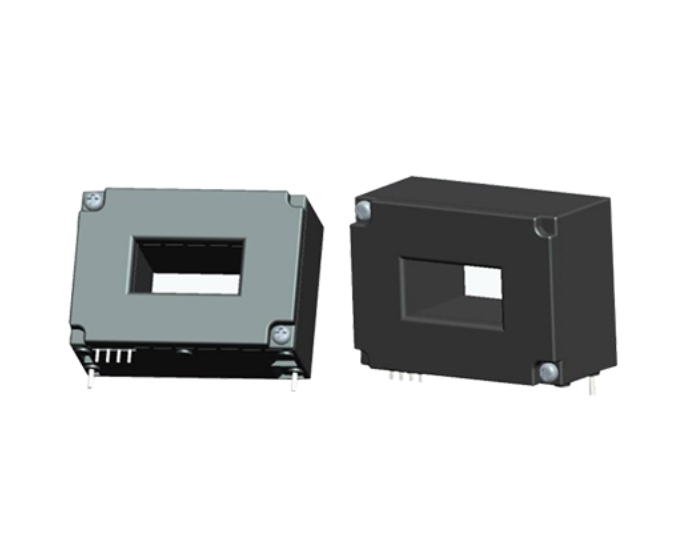

2. Confirm Cable Diameter, Busbar Size And Installation Space
The biggest advantage of a split core current sensor is that it can be installed around an existing conductor. But this also means mechanical fit is critical. Buyers should provide the full cable outer diameter, not only conductor cross-section. For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer, and installation direction.
In retrofit cabinets, available installation space is often limited. The sensor body may interfere with terminal blocks, cable ties, fuses, contactors, breakers, busbar supports, or cabinet doors. Buyers should provide cabinet photos and available space dimensions so the supplier can recommend a suitable size.
The split core must close completely after installation. If the conductor is too large or not centered properly, measurement stability may be affected. For high-current projects, the mechanical lock, hinge structure, and closure reliability should also be checked.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Cable Outer Diameter | Determines whether the split core can close properly | Full cable diameter including insulation layer |
| Busbar Width | Determines required window width | Copper busbar width and coating if any |
| Busbar Thickness | Determines required window height and clearance | Busbar thickness and insulation layer thickness |
| Available Cabinet Space | Prevents interference with nearby parts | Height, width, depth, nearby terminals and wiring route |
| Installation Direction | Affects cable entry, sensor locking and signal wiring | Vertical cable, horizontal cable, top entry, bottom entry or side entry |
| Cable Can Be Moved | Determines installation difficulty | Can move slightly, fixed tightly, or no movement allowed |
3. Confirm Current Range, Current Type And Measurement Purpose
Split core current sensors can be used for different current ranges and applications. Buyers should confirm whether the measured current is AC, DC, pulsed DC, leakage current, or bidirectional DC current. Not every split core sensor is suitable for every current type, so this detail must be confirmed before quotation.
For power cabinet retrofit projects, the sensor may be used for monitoring only, or it may provide feedback to a control system. If the sensor is used for energy monitoring or load analysis, standard accuracy may be acceptable. If the signal is used for protection, fault detection, or converter feedback, response time and accuracy become more important.
Buyers should provide rated current, maximum continuous current, peak current, overload duration, and operating waveform. This helps the supplier recommend a sensor range that avoids saturation while maintaining useful measurement resolution.
| Electrical Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Measured Current Type | Different technologies support different current types | AC, DC, pulsed DC, leakage or bidirectional current |
| Rated Current | Defines normal measurement range | 100A, 300A, 500A, 1000A or custom rating |
| Peak Current | Prevents saturation during transient operation | Peak current value and duration |
| Measurement Purpose | Different functions need different performance | Monitoring, metering, protection, feedback or diagnosis |
| Current Direction | Some DC systems need bidirectional sensing | Unidirectional or bidirectional current measurement |
4. Match Output Signal With Controller Or Monitoring System
Output signal matching is important for retrofit power cabinet projects. The split core current sensor output must match the controller, PLC, ADC input, BMS, PCS controller, energy monitoring device, data acquisition unit, or alarm system. If the signal type does not match, the cabinet may need extra signal conversion or wiring changes.
Common output signals include 0-5V, 0-10V, 4-20mA, ±5V, relay output, switch output, CAN, RS485, or customized output. For industrial monitoring systems, 0-10V or 4-20mA may be common. For compact control boards, 0-5V output may be preferred. For digital monitoring, RS485 or CAN may be used.
Buyers should also confirm supply voltage and wiring definition. A sensor that requires +24V power may not work in a cabinet where only +15V or +5V is available. For digital communication, protocol details should also be confirmed before sample testing.
| Output Signal | Typical Retrofit Use | Buyer Should Confirm |
|---|---|---|
| 0-5V | ADC input, compact controller, monitoring board | Input range, scaling, zero point and signal ground |
| 0-10V | PLC or industrial analog input | PLC compatibility and maximum input voltage |
| 4-20mA | Long-distance signal transmission | Loop power, load resistance, wiring distance and scaling |
| Relay / Switch Output | Alarm signal or protection trigger | Alarm threshold, normally open or normally closed logic |
| CAN / RS485 | Digital monitoring or smart cabinet upgrade | Protocol, baud rate, address and data format |
| Custom Output | OEM retrofit or replacement project | Output range, connector, pin definition and scaling |
5. Compare Accuracy, Split Core Closure And Long-Term Stability
Accuracy should be selected according to the retrofit goal. If the sensor is used for rough load monitoring, standard accuracy may be enough. If it is used for energy management, current balancing, fault detection, or protection, higher accuracy and better stability may be required.
Because split core sensors have an openable magnetic structure, proper closure is important. If the core does not close tightly after installation, measurement accuracy and stability may be affected. Buyers should check the mechanical lock, hinge design, installation position, and whether vibration may affect closure over time.
Retrofit power cabinets may contain switching noise, heat, dense wiring, and limited grounding conditions. Buyers should test samples under real cabinet conditions instead of relying only on bench data.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Accuracy | Affects monitoring data and protection reliability | General monitoring or higher-accuracy measurement requirement |
| Core Closure | Poor closure may affect measurement stability | Lock structure, hinge reliability and installation clearance |
| Response Time | Important for protection and fault detection | Monitoring, alarm or fast protection requirement |
| Temperature Drift | Power cabinets may operate under changing temperature | Operating temperature and drift tolerance |
| EMC Performance | Cabinets may contain high electrical noise | Grounding, shielding, wiring layout and nearby power devices |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide application, measured current type, rated current, peak current, output signal, supply voltage, cable diameter, busbar size, available installation space, accuracy target, response time, operating temperature, sample quantity and annual demand.
For retrofit projects, installation photos are extremely helpful. Buyers should send photos of the existing cabinet, cable path, busbar position, terminal area, and available space around the conductor. This helps the supplier judge whether the split core current sensor can be installed without cabinet modification.
Example Retrofit Quote Request:
Application: Retrofit current monitoring for existing power cabinet
Measured current: DC current or AC current, project-specific
Current range: 500A rated, 800A peak for short-time operation
Installation: Existing cable cannot be disconnected
Cable diameter: Full outer diameter provided
Output signal: 0-5V, 0-10V, 4-20mA or custom output
Supply voltage: +24V or project-specific requirement
Function: Current monitoring, alarm or retrofit energy management
Quantity: 10 samples first, estimated annual demand 1000 pieces
Final Retrofit Selection Checklist
Confirm whether the existing conductor can be disconnected.
Confirm measured current type: AC, DC, pulsed DC or bidirectional current.
Provide rated current, peak current and overload duration.
Provide full cable outer diameter or busbar dimensions.
Check whether the split core can close completely after installation.
Match output signal with PLC, controller, monitoring system or protection circuit.
Confirm supply voltage and wiring definition.
Check available cabinet space and installation direction.
Review accuracy, response time, drift, EMC and operating temperature.
Send cabinet photos, sample quantity, annual demand and customization needs.
Conclusion
A split core current sensor is a practical solution for retrofit power cabinet projects because it can be installed around existing conductors without disconnecting cables or redesigning the cabinet. However, buyers should carefully confirm cable diameter, busbar size, current type, output signal, supply voltage, accuracy, installation space and signal compatibility before sample approval.
For EV charging cabinets, BESS cabinets, PCS systems, motor control cabinets, UPS systems and industrial power distribution panels, a complete parameter list and clear cabinet photos help the supplier recommend the right split core current sensor faster and reduce retrofit installation risk.
FAQ
1. What is a split core current sensor used for?
It is used to measure current on existing cables or busbars without disconnecting the conductor. It is suitable for retrofit power cabinets, monitoring upgrades, energy management and maintenance projects.
2. Can split core current sensors measure DC current?
Some split core current sensors can measure DC current, but buyers must confirm the sensor technology and datasheet. Not all split core sensors are suitable for DC measurement.
3. What should buyers check before choosing a split core sensor?
Buyers should check current type, current range, cable outer diameter, aperture size, output signal, supply voltage, accuracy, installation space and whether the split core can close properly.
4. Is a split core current sensor suitable for retrofit projects?
Yes. It is especially useful when the existing cable cannot be disconnected or when the buyer wants to add current monitoring to an installed cabinet with minimal wiring changes.
5. What information should buyers provide before requesting a quote?
Buyers should provide application, measured current type, rated current, peak current, output signal, supply voltage, cable diameter, busbar dimensions, cabinet photos, sample quantity, annual demand and customization needs.
