500A Current Sensor For EV Charger Module Output Signal Aperture And Isolation Guide
500A Current Sensor For EV Charger Module Output Signal Aperture And Isolation Guide

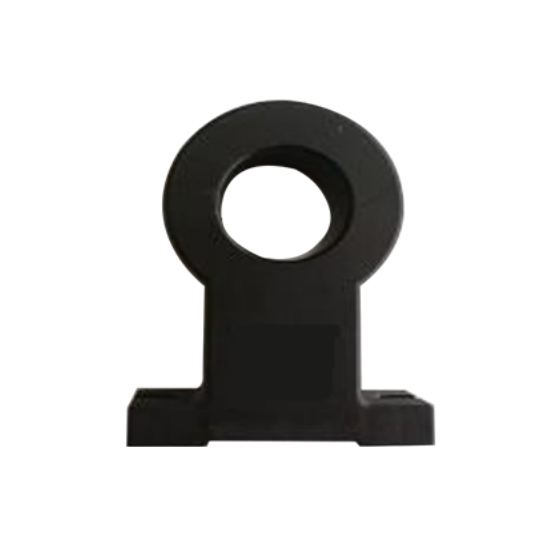

A 500A current sensor is commonly used in EV charger modules, DC fast charging systems, charging piles, power conversion modules, and high-current DC output monitoring circuits. It helps the charger measure charging current, support current feedback, detect abnormal current, and protect the power module during operation.
For EV charger manufacturers, choosing a 500A current sensor is not only about rated current. Buyers should also confirm output signal, aperture size, busbar or cable structure, isolation voltage, supply voltage, accuracy, response time, operating temperature, and controller compatibility before requesting samples or placing bulk orders.
Quick Answer
To choose a 500A current sensor for an EV charger module, buyers should confirm whether the sensor is used for DC output current monitoring, DC bus current measurement, charging current feedback, or overcurrent protection. Key parameters include 500A rated current, peak current, output signal, supply voltage, aperture size, busbar or cable dimensions, isolation voltage, accuracy, response time, zero-current output, and installation space. A correct model should match both the electrical design and the mechanical structure of the EV charger module.
1. Why 500A Current Sensors Are Common In EV Charger Modules
EV charger modules often work with high DC current, high switching frequency, compact cabinet layout, and strict safety requirements. A 500A current sensor can be used to monitor the DC output current, DC bus current, module output current, or charging cable current depending on the charger design.
In DC fast chargers, current measurement is important for charging control, current limiting, overcurrent protection, fault diagnosis, and communication with the charger controller. If the current sensor output is unstable or mismatched with the controller, the charger may display wrong current, trigger false alarms, or fail during system testing.
A 500A current sensor may look simple from the outside, but the final selection depends on the real EV charger structure. Some projects use copper busbars. Some use thick DC output cables. Some need bidirectional current measurement. Some need 0-5V output for the control board, while others require 0-10V, 4-20mA, CAN, RS485, or customized output.
Typical EV Charger Applications
DC fast charger output current monitoring.
EV charger module current feedback.
DC bus current measurement in power conversion modules.
Overcurrent protection and fault shutdown circuits.
Charging pile current monitoring and system diagnosis.
Power module output current balancing.
2. Confirm Output Signal Before Ordering Samples
Output signal matching is one of the most important checks when selecting a 500A current sensor for EV charger modules. The sensor output must match the charger controller, ADC input, PLC, power module control board, or monitoring system.
Common output signals include 0-5V, 0-10V, 4-20mA, ±5V, CAN, RS485, or customized output. For compact EV charger control boards, 0-5V output is often used. For industrial controller systems, 0-10V or 4-20mA may be required. For smart charging systems, digital output may also be considered.
For bidirectional current measurement, buyers should confirm the zero-current output point. For example, some 0-5V current sensors may use 2.5V as the zero-current point. If the controller does not recognize this midpoint, it may calculate the current direction incorrectly.
| Output Signal | Typical Use In EV Charger Module | Buyer Should Confirm |
|---|---|---|
| 0-5V | ADC input, MCU board, charger controller | Input range, zero point, output scaling and signal ground |
| 0-10V | Industrial controller or PLC input | PLC compatibility and maximum input voltage |
| 4-20mA | Longer-distance industrial signal transmission | Loop power, load resistance, wiring distance and scaling |
| ±5V | Bidirectional current measurement | Controller supports bipolar input and direction logic |
| Custom Output | OEM charger module or replacement project | Output range, scaling, connector, pin definition and wiring |
3. Check Aperture Size For Busbar Or Cable Installation

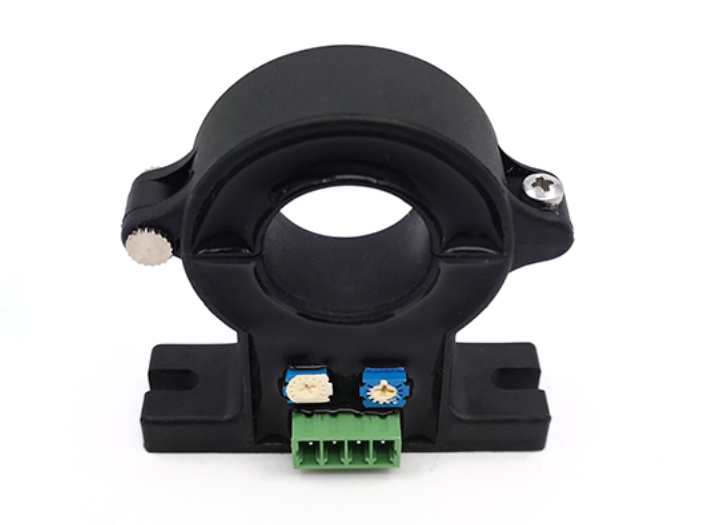

A 500A current sensor must physically fit the conductor inside the EV charger module. Some charger modules use flat copper busbars. Others use thick insulated DC cables. If the aperture size is too small, the conductor cannot pass through the sensor. If the sensor body is too large, it may not fit the cabinet space.

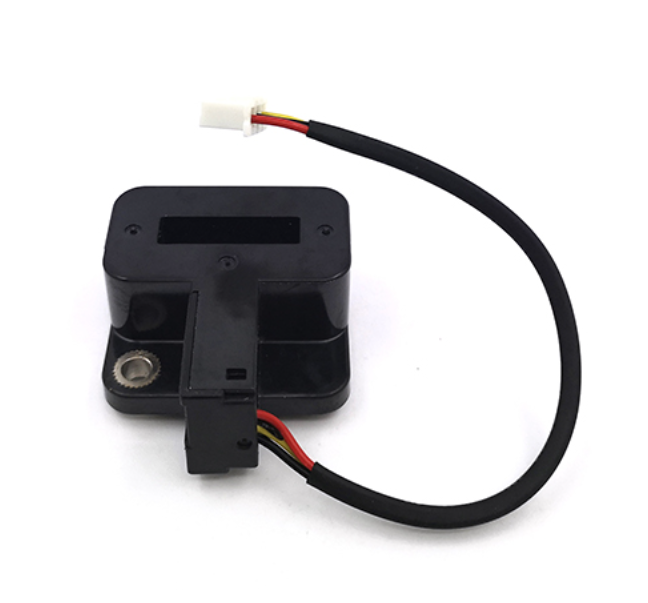

For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer thickness, installation direction, and available space. For cable installation, buyers should provide the full cable outer diameter, not only the conductor size. If the cable cannot be disconnected, a split core current sensor may be considered.
Aperture customization may be needed when standard models cannot fit the actual copper busbar or cable layout. For OEM EV charger modules, it is better to provide mechanical drawings or cabinet photos before sample selection.
| Installation Item | Why It Matters | What Buyers Should Provide |
|---|---|---|
| Busbar Width | Determines required aperture width | Example: 30mm, 40mm, 50mm or custom size |
| Busbar Thickness | Determines aperture height and clearance | Example: 5mm, 6mm, 8mm or custom thickness |
| Cable Outer Diameter | Determines whether cable can pass through the sensor | Measured full diameter including insulation |
| Installation Direction | Affects terminal direction and wiring route | Horizontal busbar, vertical cable, top entry or bottom entry |
| Cabinet Space | Prevents mechanical interference | Available height, width, depth and nearby components |
4. Confirm Isolation Voltage And High Voltage Safety
EV charger modules operate in high-voltage power conversion environments. The current sensor must safely separate the high-current conductor side from the low-voltage signal side. Isolation voltage is therefore a key parameter, especially for DC fast chargers and high-power charging systems.
Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance and insulation requirement. A sensor that fits the current range but has insufficient isolation may create safety risk or fail during charger certification testing.
High-voltage charger cabinets may also contain switching noise, heat and dense wiring. The current sensor should have stable output under the real operating environment. For OEM projects, buyers should test samples under actual load, real busbar position and real cabinet temperature before mass production.
| Safety Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| System Working Voltage | Defines long-term insulation requirement | EV charger DC bus or output voltage level |
| Isolation Voltage | Protects low-voltage controller and signal circuit | 2.5kV, 4kV, 6kV or project-specific requirement |
| Creepage And Clearance | Important for high-voltage cabinet safety | Voltage level, pollution degree and cabinet layout |
| Operating Temperature | Affects drift and long-term output stability | Cabinet temperature and cooling condition |
| EMC Environment | EV charger modules contain switching noise | Wiring route, shielding, grounding and nearby power devices |
5. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should send more than “500A current sensor.” The supplier needs application, current type, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, installation space, accuracy target, response time, sample quantity and annual demand.
If the project is a replacement request, buyers should also provide the original sensor model, datasheet, wiring definition, output scaling, product photos and installation dimensions. This helps the manufacturer evaluate whether a direct replacement, similar model or customized version is needed.
Example Quote Request:
Application: EV charger module DC output current monitoring
Current range: 500A rated, 800A peak for 1 second
Measured current: DC current
Output signal: 0-5V
Supply voltage: +15V
Isolation requirement: 4kV or higher
Installation: Copper busbar 40 × 6 mm
Customization: Aperture size and connector direction
Quantity: 30 samples first, estimated annual demand 5000 pieces
Final Selection Checklist
Confirm EV charger module application and measurement position.
Confirm 500A rated current, peak current and overload duration.
Confirm DC, AC, pulse or bidirectional current measurement.
Match output signal with charger controller or ADC input.
Confirm zero-current output and current direction if bidirectional measurement is required.
Check supply voltage and pin definition.
Confirm aperture size, busbar size or cable outer diameter.
Check isolation voltage, working voltage, creepage and clearance.
Review accuracy, response time, drift, EMC and operating temperature.
Provide sample quantity, annual demand and customization details.
Conclusion
A 500A current sensor for EV charger modules should be selected according to real electrical and mechanical requirements. Buyers should not choose only by rated current. Output signal, aperture size, busbar or cable fit, isolation voltage, supply voltage, response time, accuracy, drift and controller compatibility should all be checked before sample approval.
For EV charger manufacturers and OEM buyers, a complete parameter list helps the supplier recommend the correct 500A current sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a 500A current sensor used for in EV charger modules?
It is used for DC output current monitoring, charging current feedback, DC bus current measurement, overcurrent protection and fault diagnosis in EV charger modules and DC fast charging systems.
2. What output signal should a 500A current sensor provide?
The output should match the charger controller. Common options include 0-5V, 0-10V, 4-20mA, ±5V, CAN, RS485 or customized output.
3. Why is aperture size important?
Aperture size determines whether the current sensor can fit the copper busbar or DC cable inside the EV charger module. Buyers should provide busbar width, busbar thickness or cable outer diameter before ordering.
4. Is isolation voltage important for EV charger current sensors?
Yes. EV charger modules work in high-voltage environments. The current sensor should provide proper isolation between the high-current conductor side and the low-voltage control side.
5. What should I provide before requesting a quote?
Provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, sample quantity, annual demand and customization needs.
Request A 500A Current Sensor Quote For EV Charger Modules
If you need a 500A current sensor for EV charger modules, DC fast chargers, charging piles or power conversion systems, send us your current range, peak current, output signal, isolation requirement, aperture size, busbar or cable dimensions, sample quantity and annual demand. Our team can help you match a suitable current sensor solution for OEM production.
