1000A Current Sensor For Battery Energy Storage Cabinet What Buyers Should Confirm
1000A Current Sensor For Battery Energy Storage Cabinet What Buyers Should Confirm

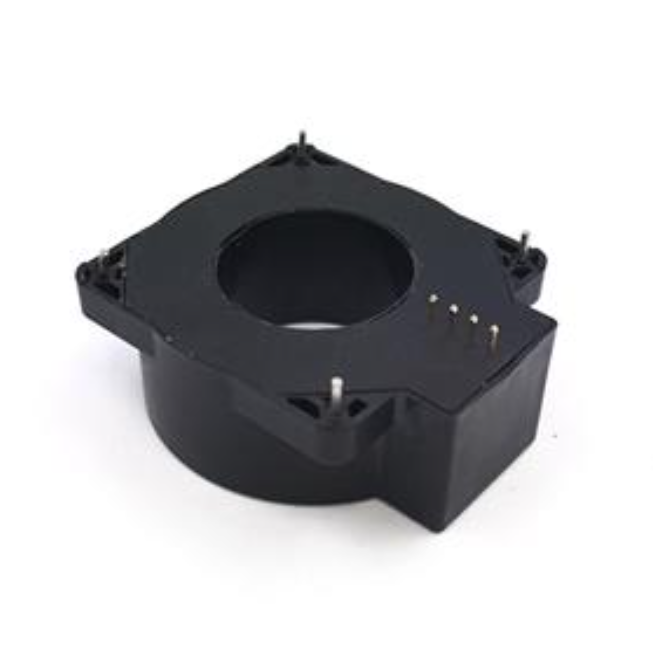

A 1000A current sensor is widely used in battery energy storage cabinets, battery racks, PCS cabinets, DC combiner cabinets, high-voltage battery systems, and industrial energy storage projects. It helps monitor charge and discharge current, support battery management, protect the DC bus, and provide stable current feedback for energy storage control systems.
For BESS manufacturers, system integrators, and OEM buyers, choosing a 1000A current sensor is not only about current rating. Buyers should confirm bidirectional DC measurement, output signal, aperture size, busbar or cable dimensions, isolation voltage, accuracy, offset drift, response time, operating temperature, and controller compatibility before ordering samples or starting mass production.
Quick Answer
To choose a 1000A current sensor for a battery energy storage cabinet, buyers should confirm whether the sensor is used for battery charge and discharge current measurement, DC bus monitoring, PCS current feedback, overcurrent protection, or system diagnosis. Key parameters include 1000A rated current, peak current, bidirectional DC measurement, output signal, zero-current output, supply voltage, isolation voltage, busbar or cable aperture size, accuracy, offset drift, response time, and operating environment. A suitable model should match both the electrical design and the mechanical layout of the BESS cabinet.
1. Why 1000A Current Sensors Are Used In Battery Energy Storage Cabinets
Battery energy storage systems often work with high DC current during charge and discharge. In large battery cabinets or PCS-connected storage systems, the current sensor may be installed on the battery output side, DC bus side, battery rack output, DC combiner cabinet, or PCS current feedback circuit.
A 1000A current sensor helps the BMS, PCS, EMS, controller, or monitoring system understand real-time current flow. This current data may affect charge and discharge control, SOC calculation, current limiting, fault protection, energy statistics, and system operation strategy.
Unlike simple current display applications, BESS current measurement usually requires stable bidirectional DC sensing. The system must detect both charging current and discharging current accurately. If the sensor output drifts too much, or if the zero-current output is unstable, the battery system may calculate wrong current data over time.
Typical BESS Applications
Battery cabinet charge and discharge current measurement.
DC bus current monitoring inside PCS or energy storage cabinets.
Battery rack output current detection.
Overcurrent protection and system fault diagnosis.
Bidirectional DC current feedback for BMS, PCS, or EMS.
Energy storage cabinet current monitoring for industrial and commercial projects.
2. Confirm Bidirectional DC Measurement And Peak Current
For battery energy storage cabinets, bidirectional DC current measurement is usually one of the most important requirements. The current sensor should correctly detect both charging current and discharging current. Buyers should confirm the current direction, zero-current output point, and how the controller reads positive and negative current signals.
A 1000A current sensor should also be selected with enough peak current margin. A system rated at 1000A may experience higher short-time current during switching, fault response, PCS control, battery balancing, or load changes. If the sensor range is too small, it may saturate during peak current. If the range is too large, normal current resolution may become poor.
Before requesting a quote, buyers should provide rated current, maximum continuous current, peak current, peak duration, and whether the current is continuous DC, pulsed DC, or bidirectional DC.
| Current Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Rated Current | Defines normal measurement range | 1000A rated current or project-specific value |
| Peak Current | Prevents saturation during transient conditions | Peak current value and duration |
| Current Direction | BESS requires charge and discharge current detection | Unidirectional or bidirectional DC measurement |
| Zero-Current Output | Affects current direction calculation | Midpoint output, bipolar output, or customized zero point |
| Measurement Purpose | Different purposes require different accuracy and response | BMS calculation, PCS feedback, protection, or monitoring |
3. Match Output Signal With BMS, PCS Or Monitoring System
Output signal matching is critical for BESS current sensor selection. The 1000A current sensor output must match the BMS, PCS controller, EMS, ADC input, PLC, inverter control board, or data acquisition system. If the output signal does not match the controller input, the system may display wrong current, calculate wrong SOC, or require additional conversion circuits.
Common output signals include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485, or customized output. For compact BMS or PCS control boards, voltage output may be common. For industrial monitoring systems, 4-20mA or digital communication may be required. For bidirectional DC current measurement, buyers should confirm whether the controller supports midpoint output or bipolar output.
| Output Signal | Typical Use In BESS Cabinet | Buyer Should Confirm |
|---|---|---|
| 0-5V | BMS, ADC input, compact controller board | Input range, output scaling, zero point, signal ground |
| 0-10V | Industrial controller or PLC analog input | PLC input range and maximum voltage tolerance |
| ±5V | Bidirectional DC current measurement | Bipolar input and charge/discharge direction logic |
| 4-20mA | Longer-distance industrial signal transmission | Loop power, load resistance, wiring distance, scaling |
| CAN / RS485 | Smart monitoring and energy management system | Protocol, baud rate, address, data format |
| Custom Output | OEM BESS cabinet or replacement project | Output range, connector, pin definition, scaling |

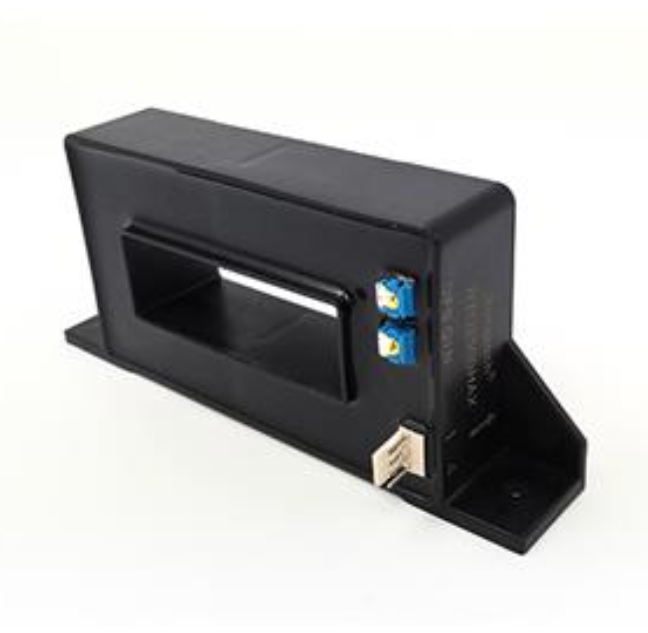

4. Check Aperture Size For Busbar Or Cable Installation
A 1000A current sensor must fit the real conductor inside the battery energy storage cabinet. BESS cabinets may use wide copper busbars, laminated busbars, thick insulated DC cables, or multiple parallel conductors. If the sensor aperture is too small, the conductor cannot pass through the sensor. If the sensor body is too large, it may interfere with cabinet structure, insulation supports, or wiring routes.
For busbar installation, buyers should provide busbar width, busbar thickness, insulation layer, installation direction, and available cabinet space. For cable installation, buyers should provide the full cable outer diameter, not only the conductor cross-section. If the cable cannot be disconnected, a split core current sensor may be considered.
For OEM BESS cabinet projects, mechanical drawings, cabinet layout photos, and busbar dimensions help the current sensor manufacturer recommend a suitable standard model or customized aperture design.
| Installation Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Busbar Width | Determines required aperture width | Example: 40mm, 50mm, 60mm, 80mm or custom width |
| Busbar Thickness | Determines aperture height and clearance | Example: 6mm, 8mm, 10mm or custom thickness |
| Cable Outer Diameter | Determines whether cable can pass through the aperture | Measured full cable diameter including insulation |
| Installation Direction | Affects terminal direction and wiring route | Horizontal busbar, vertical busbar, top entry or side entry |
| Available Cabinet Space | Prevents mechanical interference | Height, width, depth, nearby components and wiring route |
5. Confirm Isolation Voltage, Accuracy And Long-Term Stability
Battery energy storage cabinets may operate at high DC voltage, especially in commercial and industrial BESS systems. The current sensor must safely isolate the high-current primary side from the low-voltage control side. Buyers should confirm system working voltage, isolation voltage, creepage distance, clearance distance, and insulation requirements.
Accuracy and offset drift are also important. In BESS applications, current measurement may affect SOC estimation, energy calculation, charge/discharge control, and fault diagnosis. A sensor with unstable zero-current output may create accumulated measurement errors over time.
Temperature drift should also be reviewed because battery cabinets may operate in outdoor containers, hot electrical rooms, or compact cabinet environments. A 1000A current sensor should be tested under real current, real temperature, and real wiring conditions before mass production approval.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Isolation Voltage | Protects BMS, PCS and low-voltage signal circuits | 2.5kV, 4kV, 6kV or project-specific requirement |
| Working Voltage | Defines long-term insulation requirement | Battery system voltage and maximum DC bus voltage |
| Accuracy | Affects current data quality and control performance | General monitoring or high-accuracy measurement requirement |
| Offset Drift | Affects zero-current stability and long-term calculation | Zero output stability and temperature drift requirement |
| Response Time | Important for protection and PCS control response | Monitoring, feedback or protection function |
| EMC Performance | PCS and BESS cabinets contain switching noise | Grounding, shielding, wiring layout and cabinet environment |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should send more than “1000A current sensor.” The supplier needs application, current type, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, installation space, accuracy target, response time, operating temperature, sample quantity and annual demand.
If the project is a replacement request, buyers should provide the original current sensor model, datasheet, wiring definition, output scaling, product photos, and installation dimensions. This helps the manufacturer evaluate whether a direct replacement, similar model, or customized version is needed.
Example Quote Request:
Application: Battery energy storage cabinet charge and discharge current monitoring
Current range: 1000A rated, 1500A peak for short-time operation
Measured current: Bidirectional DC current
Output signal: 0-5V with midpoint zero-current output or custom output
Supply voltage: +15V or project-specific requirement
Isolation requirement: 4kV or higher
Installation: Copper busbar 60 × 8 mm with insulation
Customization: Aperture size, connector direction and label
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm BESS cabinet application and measurement position.
Confirm 1000A rated current, peak current and overload duration.
Confirm bidirectional DC current measurement requirement.
Match output signal with BMS, PCS, EMS, ADC or PLC input.
Confirm zero-current output and charge/discharge direction logic.
Check supply voltage and pin definition.
Confirm aperture size, busbar size or cable outer diameter.
Check isolation voltage, working voltage, creepage and clearance.
Review accuracy, offset drift, response time, EMC and operating temperature.
Provide sample quantity, annual demand and customization details.
Conclusion
A 1000A current sensor for battery energy storage cabinets should be selected according to real electrical and mechanical requirements. Buyers should not choose only by rated current. Bidirectional DC measurement, output signal, aperture size, busbar or cable fit, isolation voltage, supply voltage, accuracy, drift, response time and controller compatibility should all be checked before sample approval.
For BESS manufacturers, battery cabinet suppliers, PCS integrators and OEM buyers, a complete parameter list helps the supplier recommend the correct 1000A current sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a 1000A current sensor used for in a battery energy storage cabinet?
It is used for battery charge and discharge current measurement, DC bus current monitoring, PCS current feedback, overcurrent protection, energy statistics and system diagnosis.
2. Does a BESS current sensor need bidirectional measurement?
In most BESS applications, yes. The current sensor should detect both charging current and discharging current so that the BMS, PCS or EMS can understand current direction and value correctly.
3. What output signal should a 1000A BESS current sensor provide?
The output should match the BMS, PCS or controller input. Common options include 0-5V, 0-10V, ±5V, 4-20mA, CAN, RS485 or customized output.
4. Why is aperture size important for battery cabinet current sensors?
Aperture size determines whether the current sensor can fit the copper busbar or DC cable inside the battery cabinet. Buyers should provide busbar width, busbar thickness, insulation layer or cable outer diameter before ordering.
5. What should buyers provide before requesting a quote?
Buyers should provide application, rated current, peak current, output signal, supply voltage, isolation requirement, aperture size, busbar or cable dimensions, accuracy target, sample quantity, annual demand and customization needs.
