1500V DC Bus Voltage Sensor For Energy Storage And Solar Inverter Systems
1500V DC Bus Voltage Sensor For Energy Storage And Solar Inverter Systems

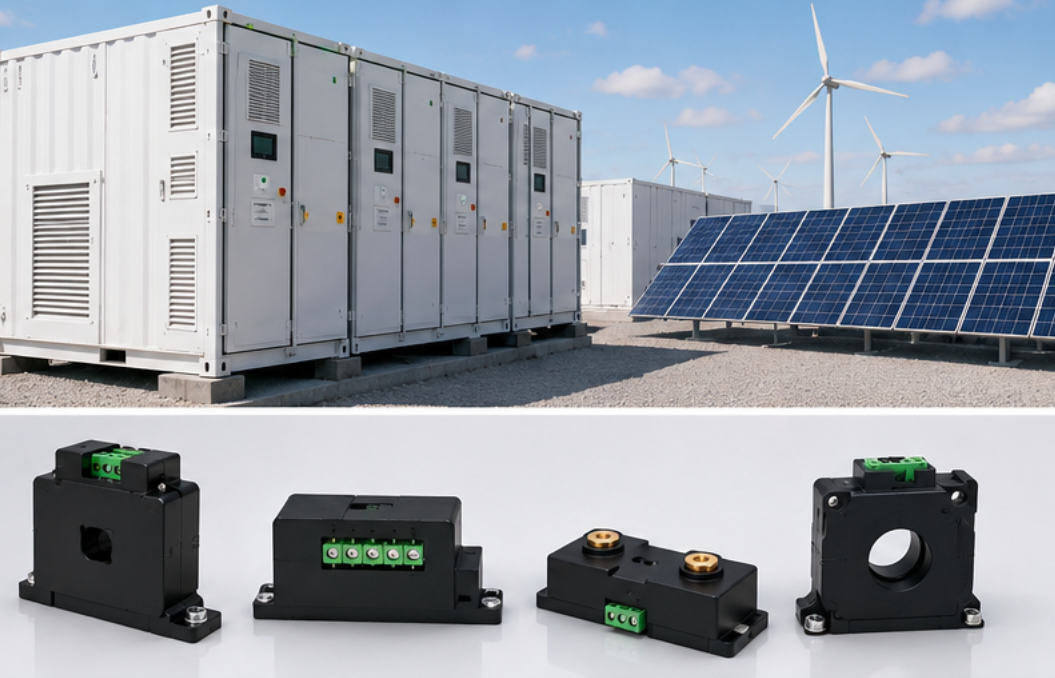

A 1500V DC bus voltage sensor is commonly used in energy storage systems, solar inverters, PCS converters, high-voltage battery cabinets, DC combiner cabinets, UPS systems, and industrial power conversion equipment. It helps monitor high-voltage DC bus conditions, support voltage feedback, detect overvoltage and undervoltage, and protect power modules during system operation.
For energy storage and solar inverter manufacturers, selecting a 1500V DC bus voltage sensor is not only about voltage range. Buyers should confirm nominal voltage, maximum voltage, transient overvoltage, isolation voltage, output signal, supply voltage, response time, accuracy, temperature drift, installation method, wiring distance, and controller compatibility before requesting samples or placing bulk orders.
Quick Answer
To choose a 1500V DC bus voltage sensor for energy storage and solar inverter systems, buyers should confirm measured voltage type, nominal voltage, maximum continuous voltage, transient voltage, output signal, supply voltage, isolation voltage, accuracy, response time, temperature drift, EMC environment, wiring method, and controller input. The sensor should safely isolate the high-voltage DC bus from the low-voltage control side and provide a stable signal for PCS, inverter, BMS, EMS, PLC or monitoring systems.
1. Why 1500V DC Bus Voltage Sensors Are Used In Energy Storage And Solar Inverters
Modern energy storage systems and solar inverter systems often operate with high-voltage DC buses. In large BESS projects, the DC bus may connect battery racks, PCS cabinets, DC contactors, fuses, DC-link capacitors, and power conversion modules. In solar inverter systems, the DC bus may connect PV input, boost stages, inverter power modules, and grid-side conversion circuits.

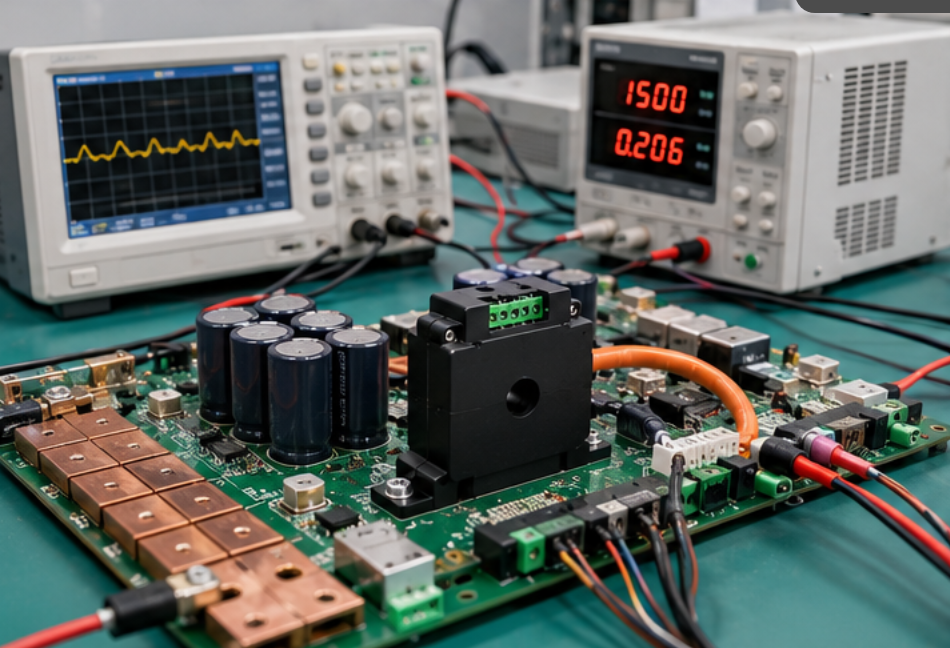

A 1500V DC bus voltage sensor provides real-time voltage feedback to the PCS controller, inverter control board, BMS, EMS, PLC, or monitoring platform. This voltage data may be used for overvoltage protection, undervoltage detection, DC bus feedback, fault diagnosis, system startup logic, power regulation, and energy management.
If the voltage sensor output is unstable, delayed, or mismatched with the controller input, the system may display incorrect voltage, trigger false protection, fail commissioning tests, or increase risk to power modules. For high-voltage energy storage and solar inverter systems, voltage sensor selection should be confirmed before cabinet design, sample testing, and mass production.
Typical Applications
1500V energy storage DC bus voltage monitoring.
Solar inverter DC-link voltage feedback.
PCS cabinet high-voltage DC bus monitoring.
BESS battery-side voltage detection and protection.
DC combiner cabinet voltage monitoring.
Overvoltage and undervoltage protection circuits.
High-voltage power conversion equipment diagnosis.
2. Confirm Nominal Voltage, Maximum Voltage And Transient Voltage
A 1500V DC bus voltage sensor should be selected according to real system voltage conditions. Buyers should confirm nominal voltage, maximum continuous voltage, transient overvoltage, and whether the measured voltage is battery DC voltage, PV DC voltage, DC bus voltage, DC-link voltage, or pulsed DC voltage.
In energy storage and solar inverter systems, DC bus voltage may fluctuate during startup, shutdown, switching, load changes, battery charge and discharge, grid events, or fault conditions. If the selected voltage sensor range is too low, it may saturate or be damaged. If the range is too high, voltage resolution may be lower than necessary.
Buyers should avoid providing only “1500V voltage sensor.” A complete voltage profile helps the supplier recommend a safer and more accurate model for the real operating environment.
| Voltage Parameter | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Nominal Voltage | Defines normal DC bus operating range | 1000VDC, 1200VDC, 1500VDC or project-specific value |
| Maximum Continuous Voltage | Prevents sensor saturation or damage | Maximum long-term DC bus voltage |
| Transient Overvoltage | Important during switching, grid events or fault conditions | Transient voltage value and duration if available |
| Measured Voltage Type | Different voltage types may need different sensor response | DC bus, battery voltage, PV input, DC-link or pulsed DC voltage |
| Measurement Purpose | Different functions require different accuracy and response | Monitoring, feedback, protection or fault diagnosis |
3. Match Output Signal With PCS, Inverter, BMS Or EMS
Output signal matching is one of the most important steps in voltage sensor selection. The 1500V DC bus voltage sensor output must match the PCS controller, inverter control board, BMS, EMS, PLC, ADC input, data acquisition unit, or monitoring system. If the output signal does not match, the system may show wrong voltage or require additional signal conversion.
Common output signals include 0-5V, 0-10V, 4-20mA, CAN, RS485, or customized output. For compact PCS and inverter control boards, 0-5V may be common. For industrial PLC monitoring, 0-10V or 4-20mA may be selected. For smart energy storage systems, digital communication may also be considered.
Buyers should provide controller input type, required output scaling, supply voltage, signal wiring distance, grounding method, and whether the voltage signal is used for display, feedback control, protection, or data logging.
| Output Signal | Typical Use In Energy Storage And Inverter Systems | Buyer Should Confirm |
|---|---|---|
| 0-5V | PCS controller, inverter board, ADC input | Input range, scaling, signal ground and output limit |
| 0-10V | PLC or industrial analog input | PLC compatibility and maximum input voltage |
| 4-20mA | Long-distance cabinet monitoring | Loop power, load resistance, wiring distance and scaling |
| CAN / RS485 | Digital monitoring and energy management system | Protocol, baud rate, address and data format |
| Custom Output | OEM controller or replacement project | Output range, connector, wiring definition and scaling |
4. Confirm Isolation Voltage And High-Voltage Safety

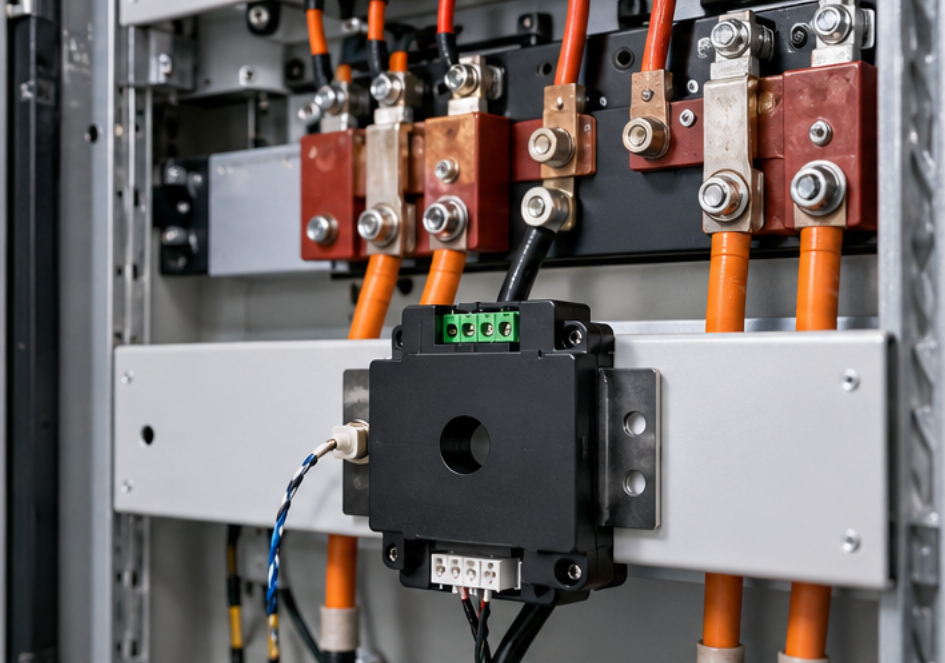

A 1500V DC bus voltage sensor must safely separate the high-voltage measurement side from the low-voltage control side. This is critical for energy storage cabinets, solar inverters, PCS converters, DC combiner cabinets, and other high-voltage DC systems.
Buyers should confirm isolation voltage, working voltage, dielectric strength, creepage distance, clearance distance, insulation material, and cabinet installation environment. Isolation voltage should not be confused with continuous working voltage. The selected sensor must be suitable for long-term operation under real high-voltage conditions.
If isolation performance is insufficient, the system may face controller damage, insulation failure, safety risk, or project testing problems. In high-voltage BESS and solar inverter systems, isolation should not be reduced only to lower component cost.
| Isolation Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Working Voltage | Defines long-term insulation requirement | Continuous DC bus voltage and maximum system voltage |
| Isolation Voltage | Protects low-voltage controller and signal circuit | 4kV, 6kV, 10kV or project-specific requirement |
| Creepage And Clearance | Important for high-voltage cabinet safety | Voltage level, pollution degree, altitude and cabinet layout |
| Insulation Environment | Humidity, dust and heat affect insulation reliability | Cabinet protection level and operating environment |
| Wiring Distance | Affects signal stability and safety layout | Cable length, wiring route, shielding and grounding method |
5. Review Accuracy, Response Time, Drift And EMC Performance
The required voltage sensor accuracy depends on how the signal is used. If the sensor is used for display or general monitoring, standard accuracy may be acceptable. If the signal is used for PCS feedback, inverter control, overvoltage protection, DC bus regulation, or energy management, accuracy and stability should be reviewed more carefully.
Response time is important when the sensor supports protection or fast control. DC bus voltage may change quickly during switching, load changes, battery events, PV input fluctuation, or fault conditions. A slow voltage sensor may delay overvoltage detection or system protection.
Temperature drift and EMC performance should also be checked. Energy storage and solar inverter cabinets may contain IGBT modules, SiC devices, contactors, relays, DC-link capacitors, fans, communication wiring, and high-voltage cables. The voltage sensor output should remain stable under real cabinet noise and temperature conditions.
| Performance Item | Why It Matters | Buyer Should Confirm |
|---|---|---|
| Accuracy | Affects voltage display, feedback and protection threshold | General monitoring or high-accuracy feedback requirement |
| Response Time | Important for fast overvoltage protection | Monitoring, feedback or protection function |
| Temperature Drift | Affects long-term output stability in hot cabinets | Operating temperature range and drift tolerance |
| EMC Performance | Switching power devices may create signal noise | Grounding, shielding, wiring layout and cabinet environment |
| Batch Consistency | Important for OEM mass production | Sample test data, inspection process and annual demand |
6. What Buyers Should Send Before Requesting A Quote
To receive an accurate quotation, buyers should provide more than “1500V DC bus voltage sensor.” The supplier needs application, measured voltage type, nominal voltage, maximum voltage, transient voltage, output signal, supply voltage, isolation requirement, accuracy target, response time, wiring method, cabinet environment, sample quantity and annual demand.
If the project is a replacement request, buyers should provide the original voltage sensor model, datasheet, wiring definition, output scaling, product photos and installation dimensions. This helps the supplier evaluate whether a direct replacement, similar model or customized voltage sensor is needed.
Example Quote Request:
Application: Energy storage PCS and solar inverter DC bus monitoring
Measured voltage: High-voltage DC bus
Nominal voltage: 1500VDC system
Maximum voltage: Project-specific maximum continuous DC voltage
Transient voltage: To be confirmed according to system design
Output signal: 0-5V, 0-10V, 4-20mA or custom output
Supply voltage: +15V, +24V or project-specific requirement
Isolation requirement: 6kV or project-specific requirement
Function: DC bus monitoring, feedback and overvoltage protection
Quantity: 20 samples first, estimated annual demand 3000 pieces
Final Buyer Checklist
Confirm energy storage, solar inverter, PCS or DC combiner application.
Confirm measured voltage type and measurement position.
Provide nominal voltage, maximum voltage and transient voltage.
Match output signal with PCS, inverter, BMS, EMS, ADC or PLC input.
Confirm supply voltage and wiring definition.
Check isolation voltage, working voltage, creepage and clearance.
Review accuracy, response time, temperature drift and EMC performance.
Confirm wiring distance, grounding, shielding and cabinet environment.
Test samples under real high-voltage and cabinet conditions before mass production.
Provide sample quantity, annual demand and customization details.
Conclusion
A 1500V DC bus voltage sensor for energy storage and solar inverter systems should be selected according to real high-voltage DC bus conditions, not only nominal voltage. Buyers should confirm maximum voltage, transient voltage, output signal, isolation voltage, response time, accuracy, drift, EMC performance and controller compatibility before sample approval.
For energy storage system manufacturers, solar inverter suppliers, PCS integrators and OEM buyers, a complete parameter list helps the supplier recommend the correct voltage sensor faster, reduce testing risk and support stable mass production.
FAQ
1. What is a 1500V DC bus voltage sensor used for?
It is used for high-voltage DC bus monitoring, DC-link voltage feedback, overvoltage protection, undervoltage detection, system diagnosis and power conversion control in energy storage and solar inverter systems.
2. Is a 1500V DC voltage sensor suitable for energy storage systems?
Yes, if the voltage range, isolation voltage, output signal, accuracy, response time and controller input match the BESS or PCS system design.
3. What output signal should a 1500V DC bus voltage sensor provide?
The output should match the controller input. Common options include 0-5V, 0-10V, 4-20mA, CAN, RS485 or customized output.
4. Why is isolation voltage important for a 1500V DC bus voltage sensor?
Isolation voltage protects the low-voltage control circuit from the high-voltage DC bus. It is essential for energy storage cabinets, PCS systems, solar inverters and high-voltage power conversion equipment.
5. What should buyers provide before requesting a quote?
Buyers should provide application, measured voltage type, nominal voltage, maximum voltage, transient voltage, output signal, supply voltage, isolation requirement, response time, sample quantity and annual demand.
