RTM2x100F120D FRD Module
RTM2x100F120D is a 1200V 100A fast recovery diode module featuring ultrafast reverse recovery (trr typ. 50ns), soft recovery characteristics and low reverse recovery loss. Designed in a standard SOT-227 package, it delivers high power density for inverter welders, UPS, photovoltaic energy storage, EV charging station and PFC applications.
RTM2x100F120D FRD Module technical overview
RTM2x100F120D FRD Module is a 1200V 100A fast recovery epitaxial diode (FRED) module for high-efficiency power electronics applications. It offers ultrafast reverse recovery time, soft switching behavior and low forward voltage drop, reducing power losses and enabling higher operating frequencies.
Housed in an industry-standard SOT-227 package with excellent thermal performance, this RoHS-compliant module is suitable for inversion welders, uninterruptible power supplies, photovoltaic energy storage, EV charging station, DC-DC converters and power factor correction circuits.
Ultrafast Reverse Recovery Time
Soft Reverse Recovery Characteristics
Low Reverse Recovery Loss
High System Power Density
Popular SOT-227 Package
RoHS Compliant

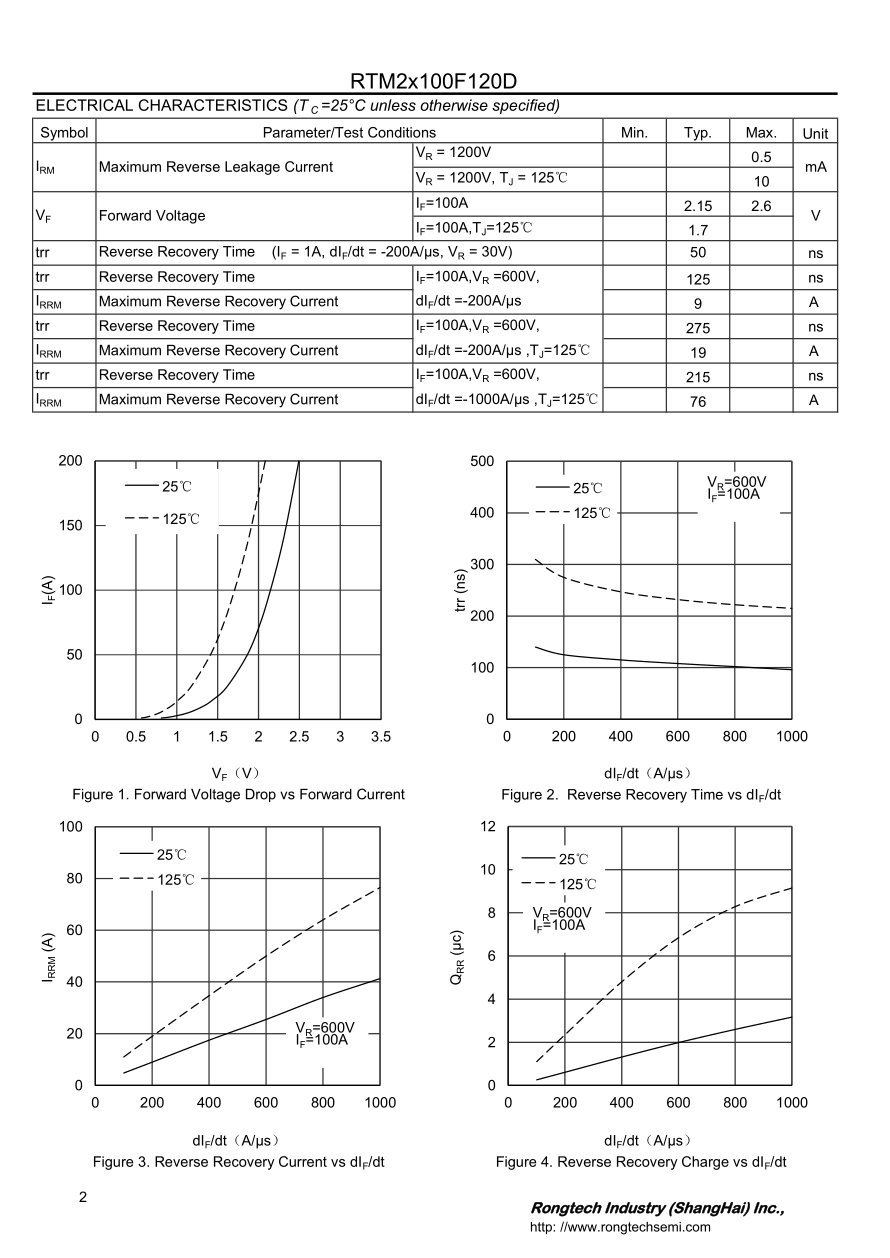

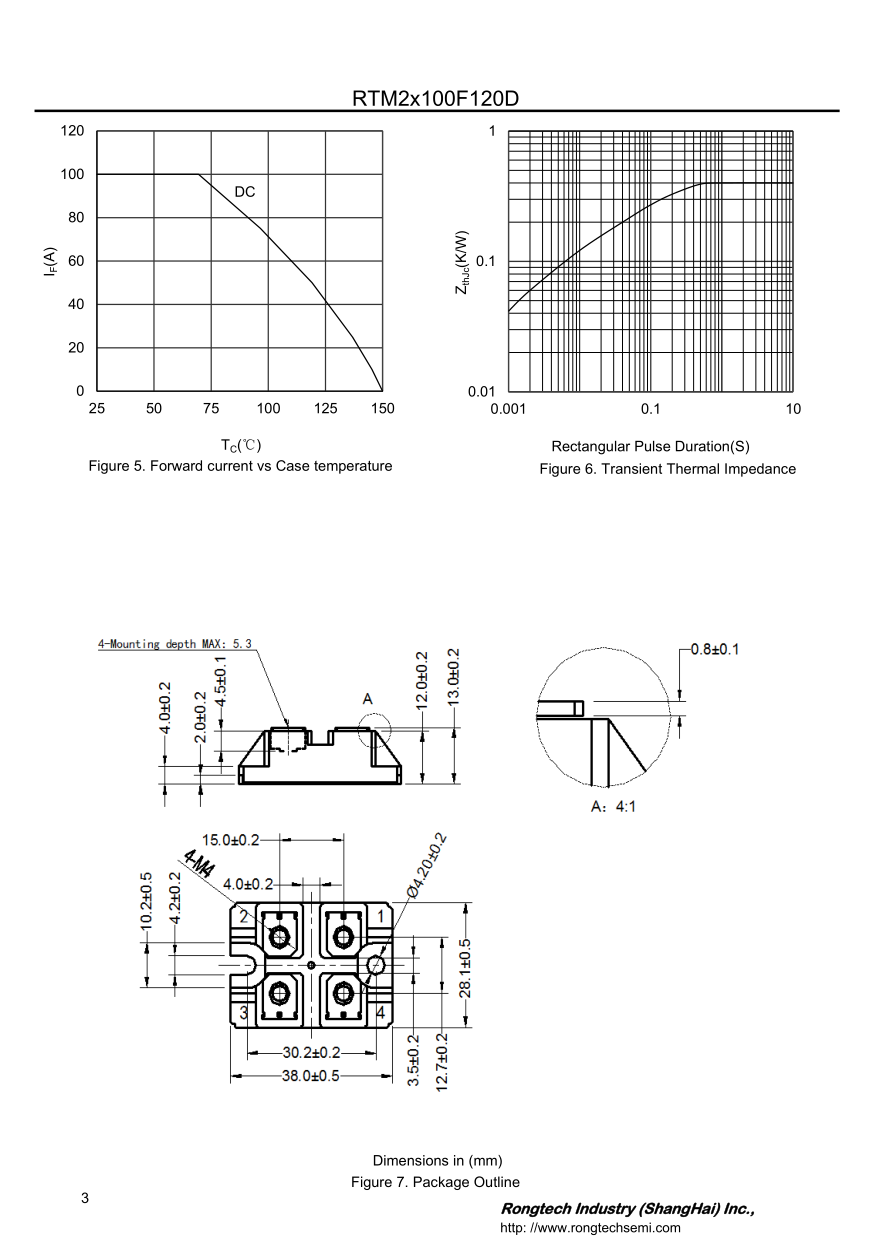

Product Data:RTM2x100F120D FRD module data
