How To Choose A Current Sensor For Battery Energy Storage Systems
How To Choose A Current Sensor For Battery Energy Storage Systems
Battery energy storage systems require accurate and stable current measurement for charge and discharge control, battery protection, inverter operation, power conversion, and system safety. A properly selected current sensor helps monitor bidirectional current, protect battery packs, support BMS and PCS control, and improve long-term reliability in energy storage applications.
This guide explains how to choose a current sensor for battery energy storage systems, what parameters matter most, and how engineers and buyers should compare sensor models for BESS, energy storage converters, battery cabinets, hybrid inverters, DC bus systems, and industrial power storage projects.
Quick Answer
To choose a current sensor for battery energy storage systems, first confirm whether the sensor measures battery charge/discharge current, DC bus current, inverter-side current, or leakage current. Then check rated current, peak current, bidirectional measurement, DC accuracy, offset drift, isolation voltage, response time, output signal, aperture size, operating temperature, and compatibility with the BMS or PCS controller. For high-accuracy battery current feedback, closed loop Hall effect current sensors or precision isolated current sensors are usually preferred.
1. Understand Where The Current Sensor Is Used In A BESS

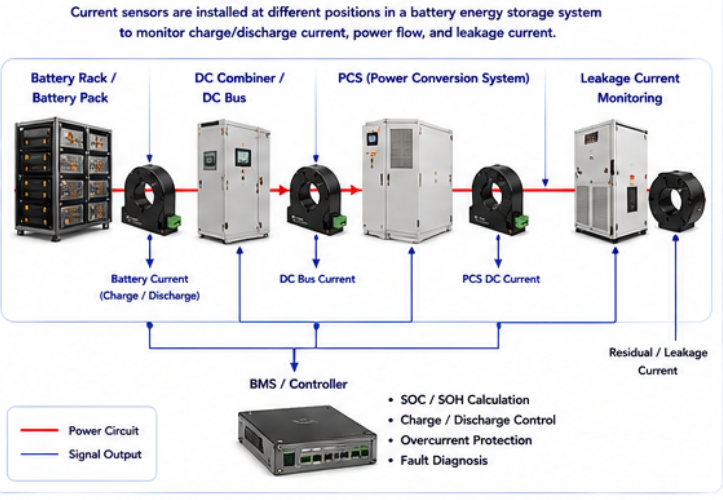

Battery energy storage systems include several current measurement points. A current sensor may be installed on the battery pack side, DC bus side, PCS input or output side, inverter side, auxiliary circuit, or leakage current monitoring circuit. Each position has different current range, accuracy, response speed, and safety requirements. Before selecting a model, engineers should define the exact measurement point and the purpose of the current signal.
On the battery side, current sensors are used to monitor charge and discharge current. This measurement helps the battery management system calculate operating status, protect the battery from overcurrent, and support energy management. Since energy storage systems involve bidirectional current flow, the selected sensor must be able to measure both charging and discharging current accurately.
On the DC bus side, current sensors help monitor power flow between batteries, converters, and inverters. DC bus current measurement is important for converter control, protection logic, system diagnostics, and energy flow management. In high-voltage energy storage systems, strong galvanic isolation is especially important to protect the low-voltage control circuit.
In the PCS or inverter section, current sensors may be used for power conversion feedback, AC/DC current monitoring, overcurrent protection, and dynamic control. These applications may require faster response and better bandwidth than simple monitoring circuits. If the current signal is used for real-time control or protection, sensor speed and accuracy become more important.
Key Questions Before Selection
Is the sensor measuring battery current, DC bus current, PCS current, inverter current, or leakage current?
Does the application require bidirectional current measurement?
What are the rated current, peak current, and short-time overload current?
Is the signal used for monitoring, BMS calculation, PCS control, or protection?
What DC accuracy and offset stability are required?
What isolation voltage is required for the battery system?
What output signal does the BMS, PCS, PLC, or controller require?
2. Check The Core Parameters For Energy Storage Current Measurement
Current sensor selection for battery energy storage systems should focus on DC measurement stability, bidirectional current capability, isolation safety, and long-term reliability. The most important parameters include current range, accuracy, offset, temperature drift, response time, bandwidth, isolation voltage, output signal, aperture size, and operating environment.
Current range should be selected according to the real battery operating profile. The sensor must cover normal charging current, discharging current, peak current, and short-time overload current. If the range is too small, the sensor may saturate during peak discharge or fault conditions. If the range is too large, normal current measurement resolution may become poor.
DC accuracy and offset drift are especially important in BESS applications. Battery systems often require stable current measurement over long operating periods. If the sensor offset changes with temperature or time, the BMS or energy management system may receive inaccurate current data. This can affect SOC estimation, protection decisions, energy statistics, and system diagnostics.
Isolation voltage must match the battery system voltage and safety design. Energy storage systems may use high-voltage battery packs and DC buses, so the current sensor should provide reliable separation between the primary power circuit and the secondary signal circuit. Engineers should review isolation voltage, working voltage, creepage distance, clearance distance, and insulation structure.
Output signal compatibility should be confirmed before ordering. Some systems require voltage output, some require current output, and others may need digital or customized signals. The output signal should match the BMS, PCS controller, ADC, PLC, or monitoring platform. If the output is not compatible, additional signal conversion may increase cost and integration risk.
| Selection Parameter | Why It Matters In BESS | Recommended Checkpoint |
|---|---|---|
| Current Type | Battery systems usually need DC or bidirectional current measurement | Confirm charge/discharge direction and current waveform |
| Current Range | Prevents saturation and keeps useful measurement resolution | Check rated current, peak current, and overload current |
| DC Accuracy | Affects BMS current calculation and energy management | Use high-accuracy sensors for battery-side measurement |
| Offset Drift | Long-term drift can affect SOC estimation and current data | Choose low-offset and low-drift sensor designs |
| Response Time | Supports fast protection and converter feedback | Use faster response for PCS control and fault protection |
| Isolation Voltage | Protects low-voltage BMS and control circuits | Match isolation level with battery voltage and safety design |
| Output Signal | Determines compatibility with BMS, PCS, ADC, or PLC | Confirm voltage output, current output, digital output, or custom signal |
| Operating Environment | Battery cabinets may face heat, humidity, vibration, and electrical noise | Review temperature range, EMC condition, and installation layout |
Open Loop Or Closed Loop For BESS?

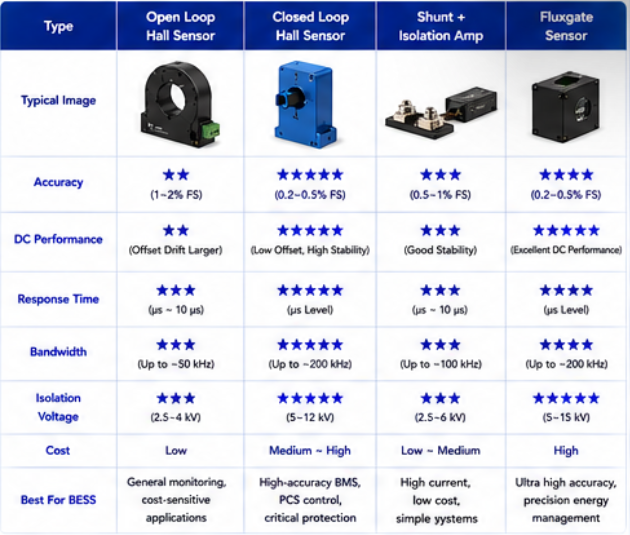

Open loop Hall effect current sensors may be suitable for general battery current monitoring and cost-sensitive systems. Closed loop current sensors are usually better when the system requires high accuracy, low drift, fast response, and stable bidirectional current feedback. For battery-side current measurement, PCS feedback, and high-value energy storage projects, closed loop or precision isolated current sensors are often the stronger choice.
3. Match Current Sensors With Different Energy Storage Applications
Different battery energy storage systems require different current sensing strategies. A residential energy storage system may focus on compact size, cost, and stable bidirectional measurement. A commercial or industrial BESS may require higher current range, stronger isolation, better accuracy, and long-term reliability. A utility-scale energy storage system may require strict safety design, stable supply, and reliable batch consistency.
For battery cabinet monitoring, the current sensor should provide stable DC measurement and low offset drift. Since battery systems may operate continuously and experience frequent charge/discharge cycles, long-term stability is important. The sensor should also fit the battery cabinet wiring structure, busbar size, and available installation space.
For PCS and hybrid inverter systems, current sensors may support converter feedback, overcurrent protection, and bidirectional power control. These applications may require faster response, better bandwidth, and strong anti-interference performance because the sensor operates near switching power devices and high-frequency noise sources.

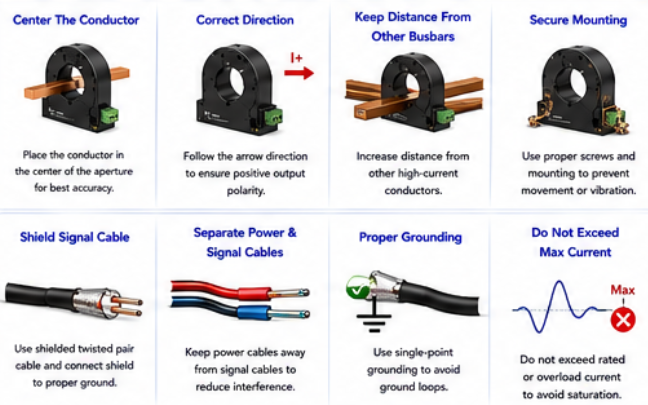

For DC bus monitoring, the sensor should match the system voltage, busbar size, current range, and isolation requirement. In high-power systems, installation layout is important because nearby busbars and strong magnetic fields may affect measurement stability. Engineers should check conductor position, spacing, grounding, shielding, and cable routing.
When requesting a current sensor quote for energy storage systems, buyers should provide the battery voltage, current range, peak current, charge/discharge direction, measurement position, output signal, accuracy target, isolation requirement, conductor size, aperture size, and operating environment. This information helps avoid wrong model selection and reduces project development risk.
Typical Application Matching Reference
| BESS Application | Current Sensing Priority | Sensor Selection Direction |
|---|---|---|
| Battery Pack / Battery Cabinet | Charge and discharge current monitoring, low drift | Bidirectional DC current sensor with stable offset performance |
| PCS Converter | Power conversion feedback and overcurrent protection | Fast-response current sensor with good bandwidth and isolation |
| DC Bus Monitoring | High-voltage DC current monitoring and system diagnostics | Isolated current sensor matched to busbar and voltage level |
| Hybrid Inverter | Battery current, inverter current, bidirectional power flow | AC/DC current sensor with bidirectional output support |
| Utility-Scale Energy Storage | High current, long-term reliability, batch consistency | High-reliability sensor with certification and test documents |
Common Selection Mistakes To Avoid
Choosing a sensor only by rated current and ignoring peak discharge current.
Using a unidirectional sensor where bidirectional current measurement is required.
Ignoring DC offset drift in battery-side current measurement.
Not checking isolation voltage for high-voltage battery systems.
Selecting an output signal that does not match the BMS or PCS controller.
Ignoring busbar size, aperture size, and installation space.
Using a general load current sensor where leakage current detection is required.
Conclusion
Choosing a current sensor for battery energy storage systems requires a careful review of current type, bidirectional measurement, current range, peak current, DC accuracy, offset drift, isolation voltage, response time, output signal, aperture size, temperature range, and installation environment. A suitable sensor helps improve BMS accuracy, PCS control, battery protection, and long-term system reliability.
For battery cabinets, DC bus systems, PCS converters, hybrid inverters, and utility-scale energy storage systems, the best current sensor is not simply the lowest-priced model. It is the model that can provide stable current data, safe isolation, reliable output, and long-term performance under real charge and discharge conditions.
FAQ
1. What type of current sensor is used in battery energy storage systems?
Battery energy storage systems commonly use Hall effect current sensors, closed loop current sensors, isolated current sensors, and leakage current sensors depending on the measurement position and safety requirement.
2. Why is bidirectional current measurement important?
Battery systems charge and discharge, so the current sensor must detect current in both directions. This helps the BMS and energy management system monitor power flow correctly.
3. Why does offset drift matter in BESS current sensing?
Offset drift can cause current measurement error over time or temperature changes. In battery systems, this may affect current data, energy calculation, protection logic, and system diagnostics.
4. Should I choose open loop or closed loop current sensors for BESS?
Open loop sensors may be suitable for general monitoring. Closed loop sensors are better for high-accuracy battery current feedback, low drift, fast response, and demanding PCS control applications.
5. What information should I provide before requesting a quote?
You should provide battery voltage, measurement position, rated current, peak current, charge/discharge direction, accuracy target, output signal, isolation requirement, busbar size, aperture size, operating temperature, and installation layout.
