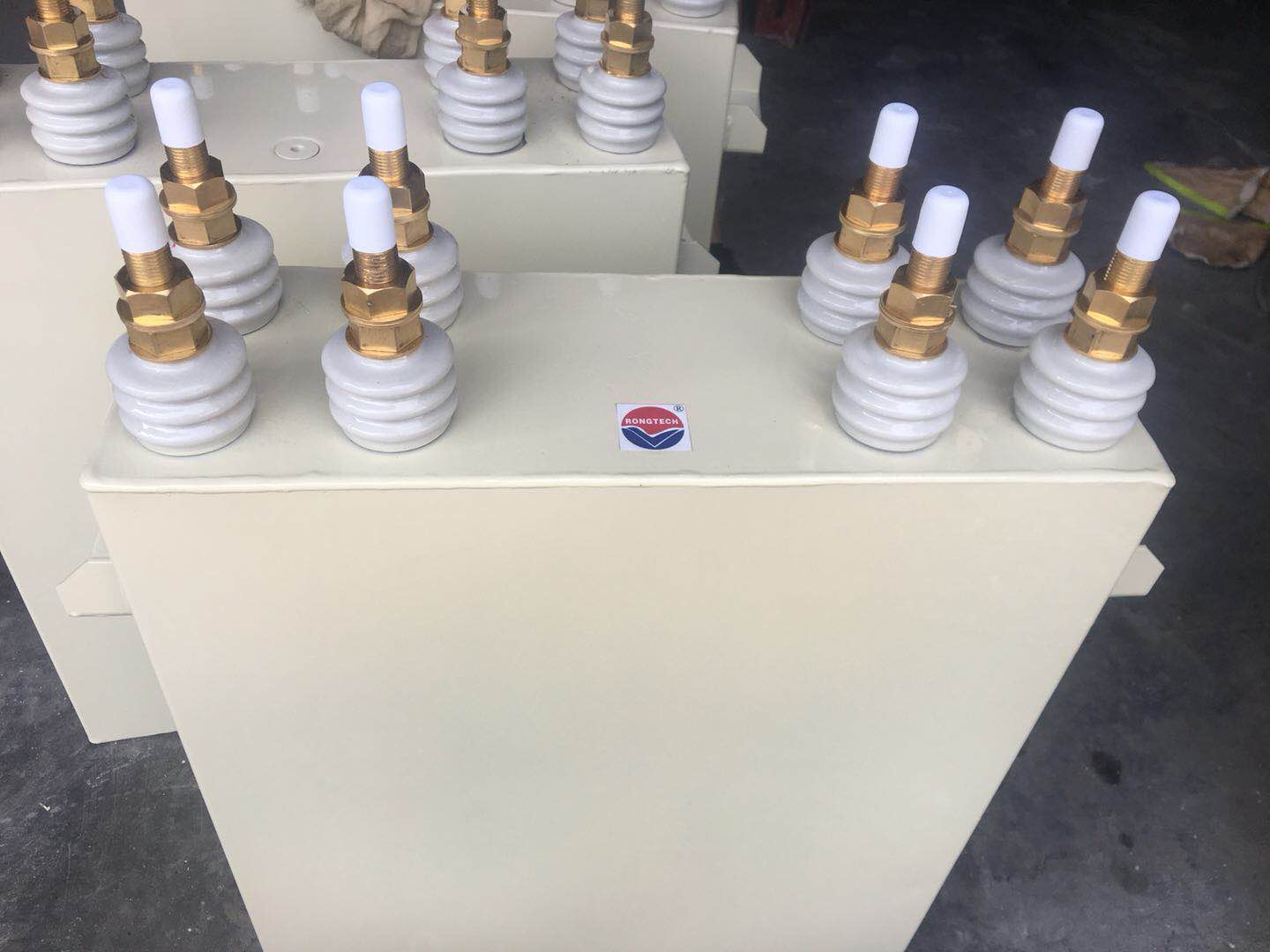

high frequency water-cooling capacito for induction heating
high frequency water-cooling capacito for induction heating
Dielectric material: Polypropylene film
Aluminum case, Side board 2mm, Cover and Base 3mm. Live or Dead case on request.
Terminals material: Copper Insulation Oil: PEPE or C101 for high frequency capacitors ;
Rapeseed oil for DC capacitors (Non-PCB.Environmentally friendly,non-toxic biodegradable)Mounting position: Vertically or Horizontal with proper support for the weight of the capacitor.
| Technical Data and Limit Values | |
| Parameter | Value |
| Standards | GB/T 3984.1-2004 / IEC 60110-1:1998 |
| Location | Indoor use, no more than 1000m altitude |
| Ambient air temperature | -20/+50°C |
| Capacitance tolerance | -50 |
| Over-voltage | Rated voltage × 1.05 (12h per day) |
| Over-current | Rated current × 1.15 |
| Cooling methods | Water cooling |
| Water flow rate | 6 L/min |
| Max. inlet water temperature | 30°C |
| Max. outlet water temperature | 45°C |
| Pressure switch (on request) | Normal close (NC) type |
| Discharge device (on request) | Less than 75V in 3min |
